1xN Multimode Optical Switch Module 19" Rack Chassis
GEZHI Photonics Co.,Ltd 's 1×8 Prism Switch provides channel selection between a single input fiber and one of eight output fibers. Actuated electrically and operating independently of data rate and signal format. GEZHI Photonics Co.,Ltd 's 1x8 Prism Switch is housed in a 19" 1U Rackmount with RS232 Control and RJ45 Ethernet Remote Management.
Features
Low insertion loss, Fast switching
LED display panel. Visual display, Convenient operation
RS232 Control and RJ45 Ethernet Remote Management
SerialNet, High Reliability, High Stability
Transparent transmission signal. High stability and reliability
Channel and time interval of automatic scanning can be set up
Applications
OXC, OLP, ROADM
Wavelength switch of testing system
Channel switch of optic sensor system
Specification
| Parameters | Unit | Indicators |
| Unit Type | FSW-1x8-MM-FP | |
| Wavelength Range | nm | 800~1100nm |
| Test Wavelength | nm | 850 nm |
| Insertion Loss | dB | Typ. ≤0.8dB,Max.≤1.5 dB |
| Repeatability | dB | ≤ 0.02 |
| Return Loss | dB | ≥ 35 |
| Crosstalk | dB | ≥ 70 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.05 |
| Optical Power | mW | ≤ 500 |
| Switching Time | ms | ≤10 ms(adjacent channel) |
| Fiber Type | um | 9/125 |
| Connector | FC/PC | |
| Monitoring Port | RJ45 & RS-232 | |
|
Working Power Supply (Plug-type) |
V |
AC:100～ 240 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -10 ～ 60 |
| Size | mm | 1U:483 x 230 x 45 |
Low Insertion Loss Rack 1×N(N≤16) Optical Switch Equipment FSW-1X8-U

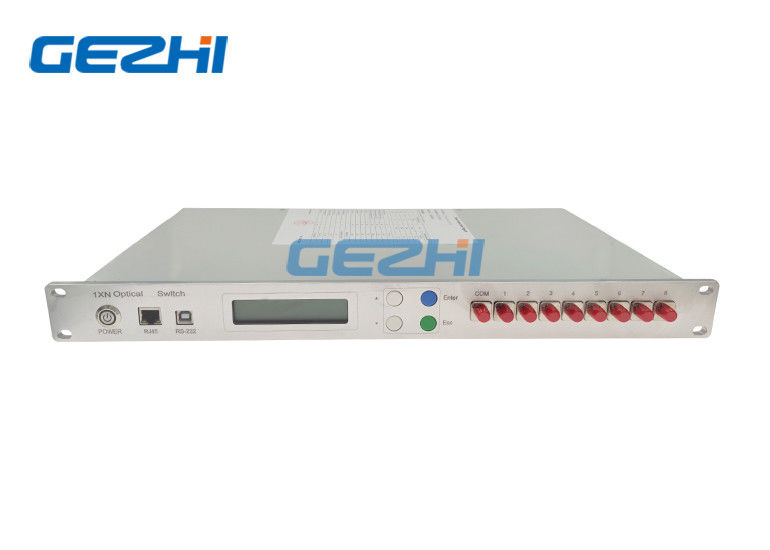

Panel to Explain:
◆Power: Master switch of power supply
◆RJ45:Communications network management interface ;
◆RS-232: Rs- serial interface ; RS232 serial communication interface;
◆LCD:Devices that display information directly;
◆▲: Key to move up; ▼: Key to move down; Enter: Key to determine;
Esc: Key to cancel;
◆com,1~8:Fiber interface;

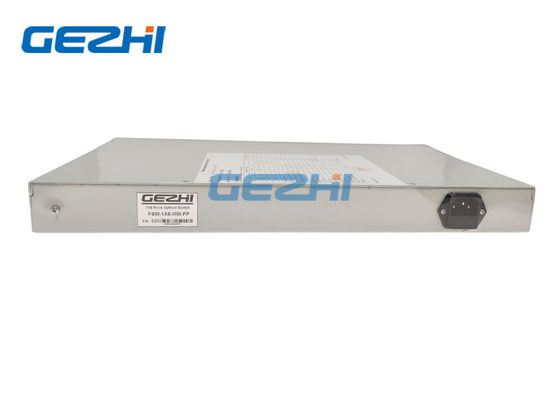

Back Panel
◆AC:100~240V: Power cord interface;
