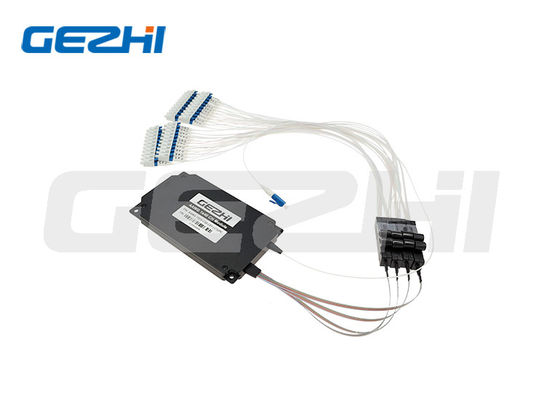

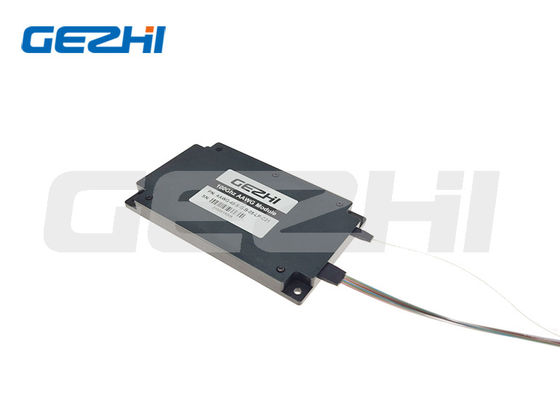

High Stability 1x48 Channel 100GHz Spacing AAWG DWDM Module for Long Haul Networks

Name: High Stability 1x48 Channel 100GHz Spacing AAWG DWDM Module for Long Haul Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x48 Channel AWG DWDM mux Demux Module
Price: 670.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x48 Channel AWG DWDM mux Demux Module
MOQ:	1pc
Price:	US$560-US$780
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Use:

Long Haul DWDM Networks

Technology:

Guassian

Channel:

1x48

Insertion Loss:

<3.5dB

Type:

FTTx Solutions

Channel Spacing:

100GHz

Warranty Time:

3 Years

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1x48 Channel DWDM Mux Demux Module

100GHz DWDM Mux Demux Module

High Stability DWDM Mux Demux Module

Product Description

Long Haul DWDM Networks High Stability 1x48 Channel 100GHz Athermal AWG DWDM Mux Demux Module

Available in Flat-Top or Gaussian Type configurations for optimal performance in various network applications.

Product Overview

The 48CH Athermal AWG DWDM Mux Demux is a high-density, low-loss standalone passive optical module that provides an excellent solution for infrastructure savings by aggregating up to 48 DWDM channels at a single site. All 48 channels are spread over the C-band per ITU-T 100GHz spacing between channels using high-quality AAWG technology. Perfectly suited to transport PDH, SDH/SONET, and ETHERNET services over WWDM, CWDM, and DWDM in optical metro edge and access networks. Available in various package types including Metal box, Rackmount, or customized packages.

Key Features

Low Insertion Loss
Customized Package Type Options
High Density Channel Configuration
Single Fiber or Dual Fiber Available
High Stability & Reliability

Technical Specifications

Parameter	Unit	AAWG Module (Gaussian Type)	AAWG Module (Flat Top Type)
Channel	CH	32 \| 40 \| 48 \| 80 \| 96	32 \| 40 \| 48 \| 80 \| 96
Channel Spacing	GHz	100 \| 100 \| 100 \| 50 \| 50	100 \| 100 \| 100 \| 50 \| 50
1dB Channel Bandwidth	nm	>0.2 \| >0.2 \| >0.2 \| >0.18 \| >0.18	>0.38 \| >0.38 \| >0.38 \| >0.18 \| >0.18
3dB Channel Bandwidth	nm	>0.4 \| >0.4 \| >0.4 \| >0.28 \| >0.28	>0.58 \| >0.58 \| >0.58 \| >0.28 \| >0.28
Insertion Loss	dB	<4.5 \| <4.5 \| <4.5 \| <6.5 \| <6.5	<5.5 \| <5.5 \| <5.5 \| <7.0 \| <7.0
Adjacent Crosstalk	dB	>25 \| >25 \| >25 \| >22 \| >22	>25 \| >25 \| >25 \| >22 \| >22
Non-adjacent Crosstalk	dB	>30 \| >30 \| >30 \| >27 \| >27	>30 \| >30 \| >30 \| >27 \| >27
Total Crosstalk	dB	>22 \| >22 \| >22 \| >20 \| >20	>22 \| >22 \| >22 \| >20 \| >20
Return Loss	dB	>40
Ripple	dB	<0.7
PDL	dB	<0.5
PMD	ps	<0.5
Chromatic Dispersion	Ps/nm	±20
Operating Temperature	℃	-5~+65
Storage Temperature	℃	-40~+85

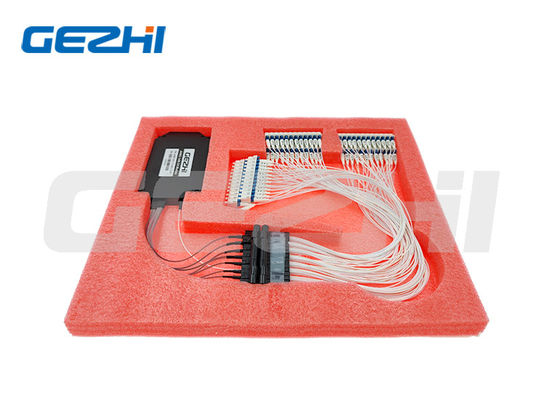

Package Information
