Product Details:
Payment & Shipping Terms:
|
| Use: | Long Haul DWDM Networks | Channel: | 1x40/48 |
|---|---|---|---|
| Warranty Time: | 3 Years | Insertion Loss: | <3.5dB |
| Type: | FTTx Solutions | Channel Spacing: | 100GHz |
| Technology: | Guassian | Connector: | SC FC LC APC UPC PC |
| High Light: | ABS Box AAWG DWDM,48 Channels AAWG DWDM,40 Channels AAWG DWDM |
||

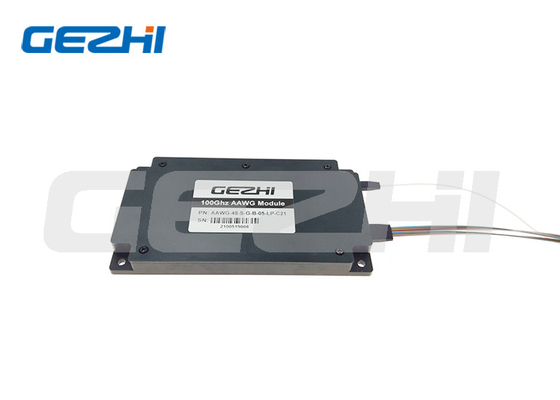

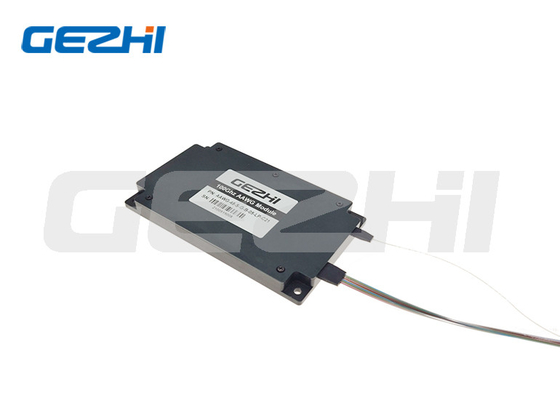

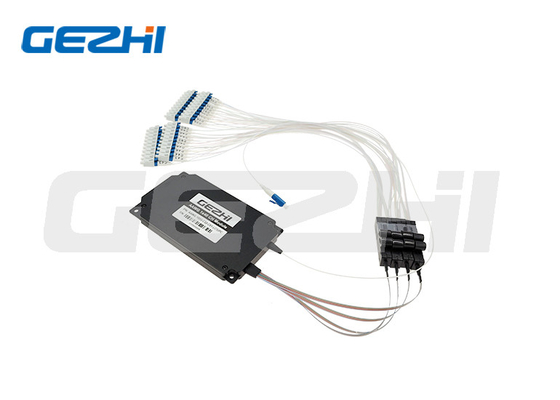

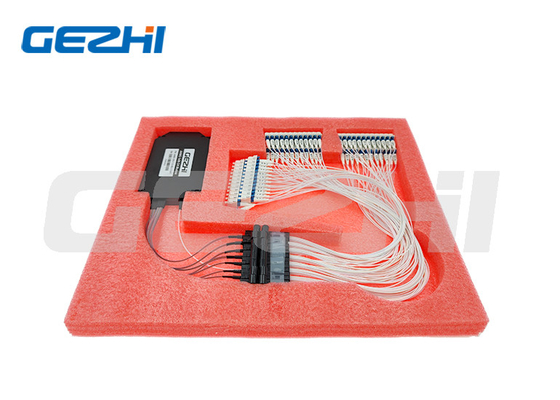

ABS Black Box 40/48 channels AAWG DWDM Module LC/SC/FC Connector High stability
Product Overview
AAWG module is based on the silica on silicon technology and no electrical power is required. The product offers high stability and reliability, and has small package size.
The product is Telcordia GR-1221-CORE qualified, and RoHS compliant.
Featuers
Athermal design operates over operating temperature range
Large channel number
Compact size
High stability and reliability
Low insertion loss, high isolation increase system margin
Channel spacing: 0.8nm(100GHz Grid)
Com port is simplex
Protocol transparent (10Mbps to 100Gbps)
Low insertion loss
High Channel Isolation
Epoxy-free optical path
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃
Applications
Dense WDM System
PON Networks
CATV Links
Performance Specifications
Order details
2~48Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.
Min.Order Quantity: 1pc
