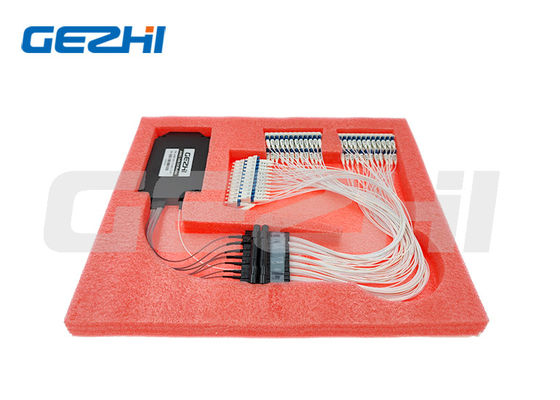

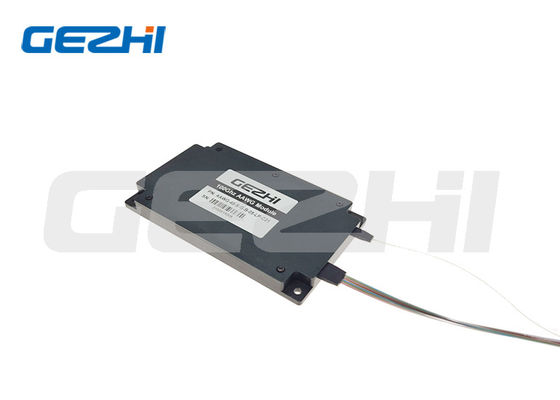

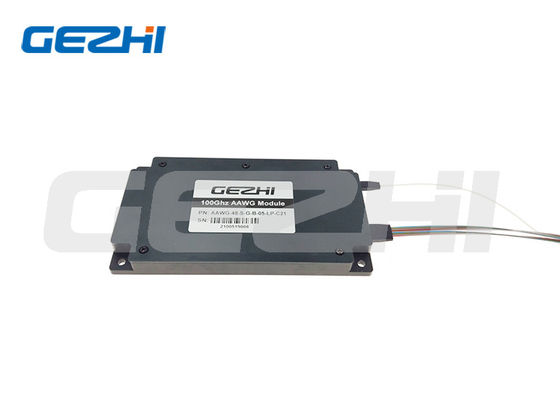

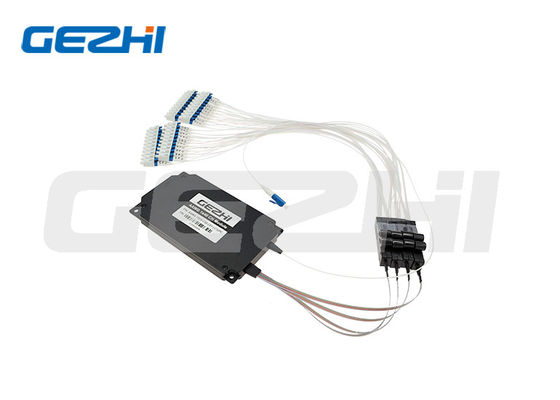

ABS Black Box 40/48 Channels AAWG DWDM Module with Athermal Design and High Stability for Long Haul Networks

Name: ABS Black Box 40/48 Channels AAWG DWDM Module with Athermal Design and High Stability for Long Haul Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 40/48CH AWG DWDM mux Demux Module
Price: 543.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	40/48CH AWG DWDM mux Demux Module
MOQ:	1pc
Price:	US$398-US$688
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel Count:

40/48

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

ABS Box AAWG DWDM

48 Channels AAWG DWDM

40 Channels AAWG DWDM

Product Description

ABS Black Box 40/48 Channels AAWG DWDM Module LC/SC/FC Connector High Stability

ABS Black Box 40/48 channels AAWG DWDM Module LC/SC/FC Connector High stability

Product Overview

AAWG module is based on the silica on silicon technology and no electrical power is required. The product offers high stability and reliability, and has small package size. The product is Telcordia GR-1221-CORE qualified, and RoHS compliant.

Features

Athermal design operates over operating temperature range
Large channel number
Compact size
High stability and reliability
Low insertion loss, high isolation increase system margin
Channel spacing: 0.8nm (100GHz Grid)
Com port is simplex
Protocol transparent (10Mbps to 100Gbps)
Low insertion loss
High Channel Isolation
Epoxy-free optical path
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃

Applications

Dense WDM System
PON Networks
CATV Links

Performance Specifications

Order Details

2~48 Channels available
Com port: simplex or duplex
Fiber connector: LC/SC or other
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount
DWDM Solutions and DWDM SFP/XFP
Minimum Order Quantity: 1 piece

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample order is welcome to test and check quality. We don't have MOQ, 1 piece sample is available. Also mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1 week. For big quantity and special products, please check lead time with our sales representative. We keep stock for some products and could ship within 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment terms: T/T, PayPal, Western Union, cash payment, AliPay etc.

Q4: What is your warranty time?

A4: 1 year warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM service according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
