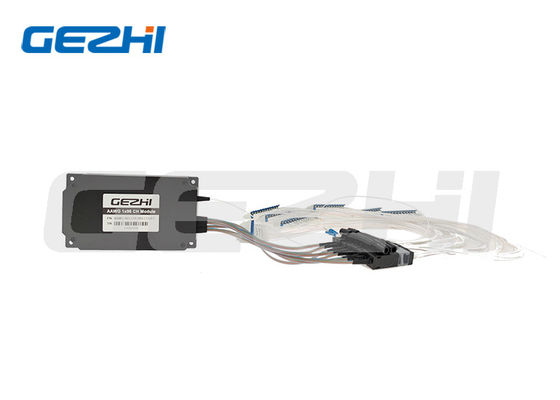

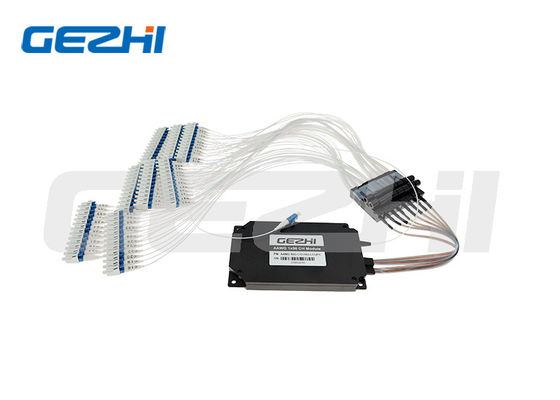

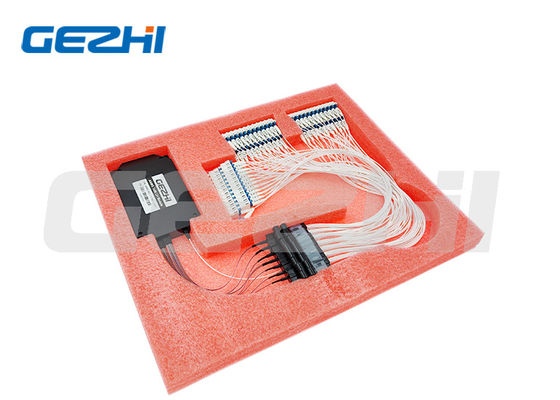

96 Channel AAWG Module with 50GHz Channel Spacing and Athermal Design for DWDM Networks

Name: 96 Channel AAWG Module with 50GHz Channel Spacing and Athermal Design for DWDM Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 96 Channel AWG DWDM mux Demux Module
Price: 543.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	96 Channel AWG DWDM mux Demux Module
MOQ:	1pc
Price:	US$398-US$688
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel Spacing:

50GHz

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

96 Channel AAWG Module

DWDM Network AAWG Module

Product Description

96 Channel AAWG Module Athermal Arrayed Waveguide Grating For DWDM Network

96 Channel AAWG Module, Athermal Arrayed Waveguide Grating For DWDM Network

Product Overview

Athermal AWG (AAWG) modules provide equivalent performance to standard Thermal AWG (TAWG) but require no electrical power for stabilization. They serve as direct replacements for Thin Film Filters (Filter type DWDM modules) in applications where power is unavailable, making them ideal for outdoor applications operating from -30°C to +70°C in access networks.

Gezhi Photonics' Athermal AWG (AAWG) modules deliver excellent optical performance, high reliability, ease of fiber handling, and power-saving solutions in a compact package.

Features

Low PDL
Low chromatic dispersion
Low insertion loss
Telcordia GR-1221-Core qualified
MUX/DEMUX Functionality
Athermal Design, Electrical Power is Not Required
Compact Package
Multi-channel Number

Applications

Optical add/drop multiplexing
Wavelength routing
DWDM transmission

Technical Parameters

Parameter	Unit	Flat top	Gaussian	Flat top	Gaussian
Number of channels		16/32/40/48		80/88/96
Channel spacing	Ghz	50	50
Channel frequency	Thz	Blue band=1528.773~1547.316	C band=1526.827~1564.679	Red band=1545.720~1564.679
Wavelength accuracy	nm	±0.05	±0.05	±0.05	±0.05
1db bandwidth	nm	>0.18	>0.12	>0.18	>0.12
3db bandwidth	nm	>0.28	>0.20	>0.28	>0.20
Insertion loss (passband)	dB	<4.5	<3.7	<5.5	<4.5
Adjacent channel crosstalk	dB	>27	>27
Non-adjacent channel crosstalk	dB	>30	>30
Total crosstalk	dB	>24	>24
Insertion loss uniformity	dB	<1.2	<1.5
Polarization loss	dB	<0.5	<0.5	<0.5	<0.5
Return loss	dB	>40
Dispersion	ps/nm	±10
Operating temperature	ºC	-20~70
Size (length * width * height)	mm	1207012.3		1309011.3

Business Advantage

Technology:

Professionally engaged in high-precision packaging production of optical devices for 10 years
10 years of technical team experience
Possess core proprietary technology
