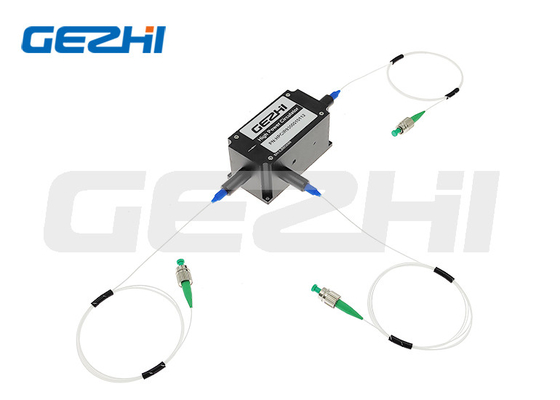

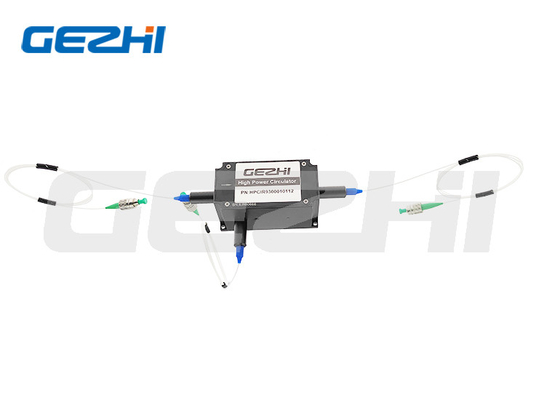

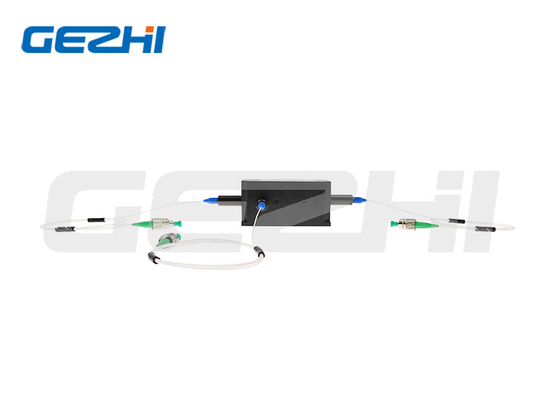

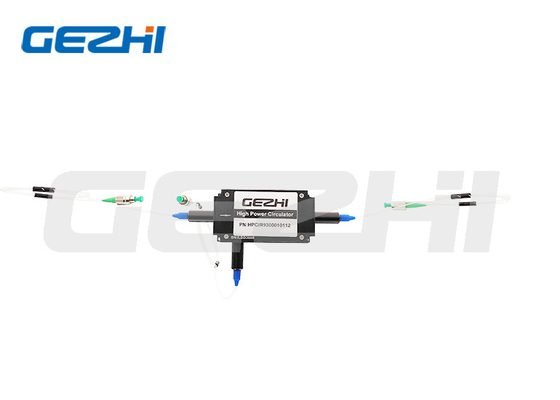

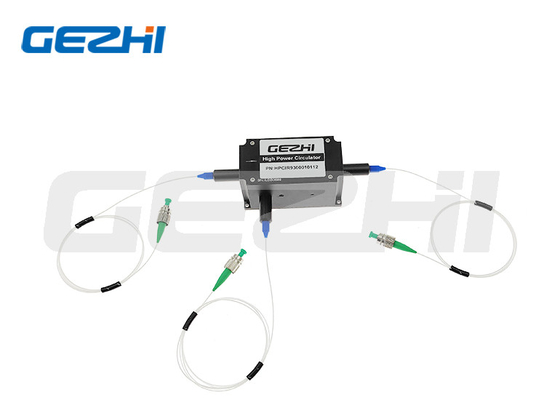

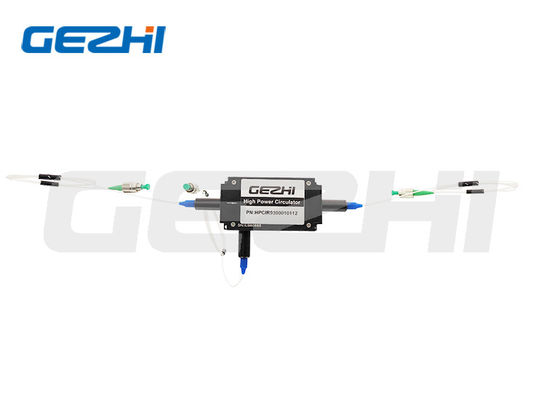

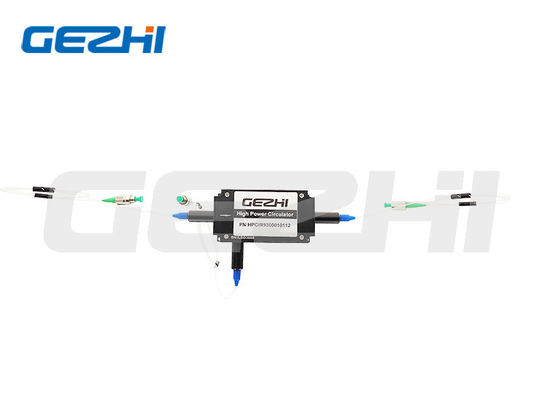

Customizable Wavelength TGG Based 3-Port Polarization Maintaining Optical Circulator for Fiber Amplifier

Name: Customizable Wavelength TGG Based 3-Port Polarization Maintaining Optical Circulator for Fiber Amplifier
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Polarization Maintaining Optical Circulator
Price: 465.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Polarization Maintaining Optical Circulator
MOQ:	1pc
Price:	US$250-US$680
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Operating Wavelength:

532, 633, 680, 780, 808, 850, 930, 980, 1030, 1053, 1064, 1150 Nm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Custom Polarization Maintaining Optical Circulator

TGG Based Polarization Maintaining Optical Circulator

Customizable PM Optical Circulator

Product Description

Custom Polarization Maintaining Optical Circulator TGG Based For Fiber Amplifier

Customizable Wavelength Polarization Maintaining Optical Circulator

The key functionality of a fiber optical circulator is directing light sequentially from port to port with low loss in only one direction, which results in the separation of signals traveling along an optical fiber in opposite directions.

Gezhi Photonics manufactures various in-line fiber optical circulators, including high-power optical circulators, single-mode & multimode fiber circulators (polarization-independent & polarization-maintaining fiber optical circulators). These fiber circulators are customizable upon request.

Features

Low Insertion Loss
High Return Loss
High Isolation
High Stability & Reliability

Applications

Fiber Amplifier
Testing Instrument
Fiber Sensor
Medical Equipment

Technical Specifications

Parameters	Unit	Values
Operating Wavelength	nm	532 \| 633 or 680 \| 780, 808, 850 or 930 \| 980 \| 1030 \| 1053 or 1064 \| 1150
Wavelength Bandwidth	nm	±5 \| ±5 \| ±10 \| ±10 \| ±10 \| ±10 \| ±5
Insertion Loss	dB	≤2.5 \| ≤2.5 \| ≤1.5 \| ≤1.5 \| ≤1.5 \| ≤1.5 \| ≤1.5
Min. Isolation	dB	≥20 \| ≥20 \| ≥22 \| ≥22 \| ≥22 \| ≥22 \| ≥22
Peak Isolation	dB	≥25 \| ≥25 \| ≥26 \| ≥25 \| ≥25 \| ≥25 \| ≥25
Extinction Ratio (Type B)	dB	≥18 \| ≥18 \| ≥18 \| ≥18 \| ≥18 \| ≥18 \| ≥18
Extinction Ratio (Type F)	dB	≥20 \| ≥20 \| ≥20 \| ≥20 \| ≥20 \| ≥20 \| ≥20
Fiber Type	/	PM460 \| PM630 \| PM780 \| PM980 \| PM980 \| PM980 or 1060
Max Power Handling (CW)	W	0.02 \| 0.05 \| 0.5, 5, 10 or 20 \| 0.5, 5 or 20 \| 0.5, 5, 20 \| 0.5, 5, 20 \| 0.5, 5, 20
Crosstalk	dB	≥45
Return Loss	dB	≥45
Tensile Load	N	≤5
Operating Temperature	°C	0~+60
Storage Temperature	°C	-10~+75
Package Dimension	nm	70x28x26

Note:

1. Above specifications are for device without connector. If with connector, IL will be 0.3dB higher, return loss will be reduced by 5dB and Extinction Ratio will reduce 2dB.

2. If there is pulse application, please be sure to inform us of pulse energy and peak power.

Package Dimensions

Ordering Information

Parameter	Options
① Port	3=3port
② Wavelength	532; 633; 680; 780; 808; 850; 930; 980; 1030; 1053; 1064; 1150nm; S=Specify
③ Axis Alignment	B=Both axis working; F=Slow axis working, Fast axis blocked; N=Non-PM type is available
④ Power Handling	0L=0.5W; 01=1W; 02=2W; 10=10W; 10=20W; S=Specify
⑤ Fiber Type	PM460; PM630; PM780; PM980; PM1060; S=Specify
⑥ Package Dimensions	T2=70x28x26mm; S=Specify
⑦ Pigtail Type	00=bare fiber; 09=900um loose tube
⑧ Fiber Length	08=0.8m; 10=1m; S=Specify
⑨ Connector Type	FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify
⑩ Peak Power for Pulse	00=Continuous Wave, 10=10kW, 20=20kW, SS=Specified
