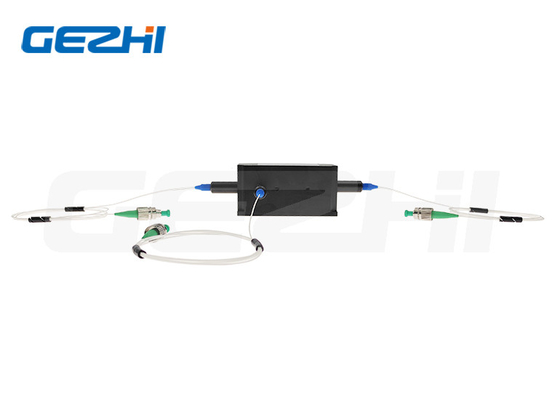

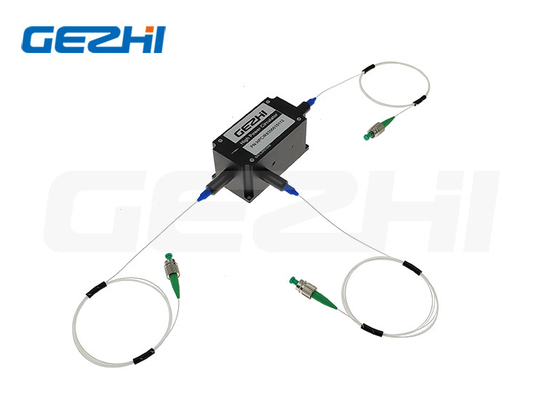

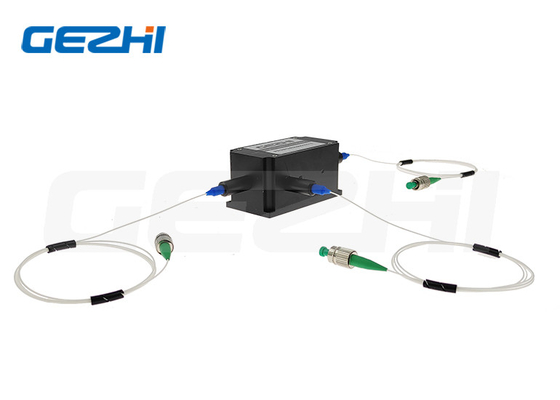

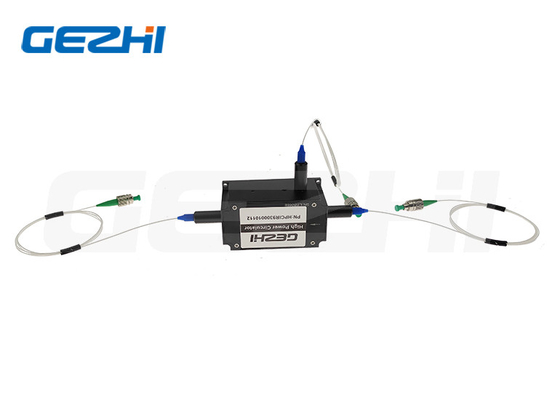

980-1080nm High Power Faraday Rotator Low Insertion Loss For Fiber Optic Instruments

Brand Name: GEZHI or OEM
Model Number: High Power Faraday Rotator
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
High Power Faraday Rotator
Wavelength:
980-1080nm
Operating Temperature:
-5~+70(℃)
Storage Temperature:
-40~+85(℃)
Warranty:
3 Years
Application:
Fiber Sensor
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

High Power Faraday Rotator

,

Low Insertion Loss Faraday Rotator

Product Description



 Product Overview of High Power Faraday Rotator

Low insertion loss 980-1080nm High Power Faraday Rotator (50W/100W) for Fiber Optic Instruments



High Power Faraday Rotator



GEZHI High Power Faraday rotators change the polarization state of light traveling through it. The output polarization state is rotated by 45 degrees with respect to the input polarization. When combined with a mirror, the reflected light is rotated by another 45 degrees, resulting in a 90 degree rotation. In addition, the polarization handedness is reversed by the mirror. This results in a reflected polarization that is orthogonal to the original polarization.
They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and Fiber Sensors.





Features & Applications of High Power Faraday Rotator

Features:

•Low Insertion Loss
•High Return Loss
•High Reliability
•High Stability



Applications:

•Fiber Optic Instruments

•Fiber Sensors
•Fiber Lasers
•Coherent Detecting



Specifications of High Power Faraday Rotator

Parameters Unit Value
Center Wavelength nm 1064, 1030, 980
Operating Wavelength Width nm ±5
Max. Insertion Loss dB 1.0
Faraday Rotation Angle for CWL deg 45
Max. Rotation Angle Tolerance for CWL deg ±2
Min. Extinction Ratio at 23 ℃ (PM Fiber Type) dB 20
Max. Polarization Dependent Loss at 23 ℃ (SM Fiber Type) dB 0.15
Max. Polarization Mode Dispersion ps 0.05
Max. Power Handling (CW) W 50, 100 or Specified
Max. Peak Power for ns Pulse kW 10 or Specified
Package Dimension mm 82x38x35
Max. Tensile Load N 5
Axis Alignment - Both axis working
Operating Temperature -5~+70
Storage Temperature -40~+85


Note:With connectors, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.





Package Dimension

980-1080nm High Power Faraday Rotator Low Insertion Loss For Fiber Optic Instruments 0







Odering Information of High Power Faraday Rotator

HPMFR-1111-222-34-5-66-7788 (PM Fiber Type) / HPIFR-1111-222-34-5-66-7788 (SM Fiber Type)

1111 - Wavelength:

-Center Wavelength:

1064=1064nm, 1030=1030nm, 980=980nm, SSSS=Specified

222 - Fiber Type:

-Fiber Type:

020=PLMA-GDF-20/130-M, 024=PLMA-GDF-25/250-M, SSS=Specified

3 - Package Dimension:

-Package Dimension:

0=82x38x35mm, S=Specified

4 - Pigtail Type:

-Pigtail Type:

0=bare fiber, 1=900μm loose tube

5 - Fiber Length:

-Fiber Length:

0.8=0.8m, 1.0=1m, S=Specified

66 - Connector Type:

-Connector Type:

0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

77 - Average Power:

-Connector Type:

00=500mW, 01=1W, 05=5W, 10=10W, SS=Specified

88 - Peak Power:

-Connector Type:

00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Specified








FAQ

Q1:Can I have a sample order? What is your MOQ of High Power Faraday Rorator?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of High Power Faraday Rorator?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
