| Brand Name: | GEZHI or OEM |
| Model Number: | 19" 1U Multimode Optical Switch |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |
Single mode and Multimode 19" 1U Rackmount Multimode 1x8 Optical Switch Module
Product Description

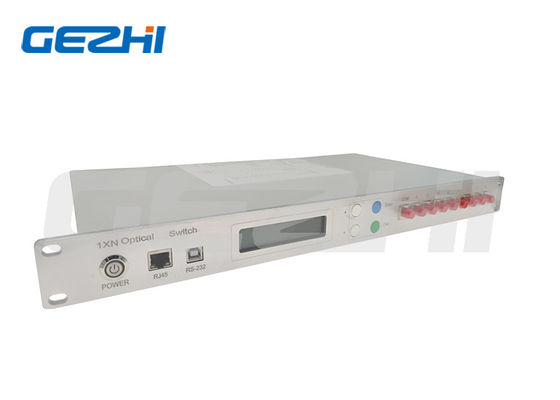

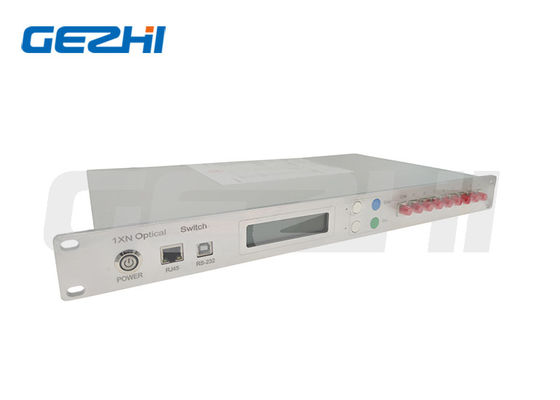

Rack Mount 1X8 Optical Switches allow the automated and repeatable connection of one common fiber to 8 number of output or input fibers. These all-optical switches are bi-directional and can be used in either the 1x8 or 8x1 direction.Rack-Mounted Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This Fiber optical switch is available in any 1xN size up to 1x128.
Features
Low loss,High Reliability,High Stability
Easy-to-use Rackmount Housing,LCD Display
RS232 and Ethernet Interface,User Friendly
Applications
High-volume production testing
Dynamic Management of Optical Networks
Secure Communications
Specification
| Parameters | GEZHI-FSW-1X8 | ||
| Operating wavelength | nm | 850±40 / 1300±40 | 1260~1650 |
| Test Wavelength | nm | 850/1300 | 1310/1550 |
| Insertion loss | dB | Typ:0.8 Max:1.0 | |
| Return loss | dB | SM≥55 MM≥30 | |
| Crosstalk | dB | ≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.05 | |
| Lifetime | times | ≥107 | |
| Transmission power | mW | ≤500 | |
| Switch time | ms | ≤10(Sequence switch time of adjacent channel) | |
| Operating temperature | ℃ | -10～+60 | |
| Storage temperature | ℃ | -40～+80 | |
| Relative Humidity | % | 5 ~ 95 | |
| Supervision interface | Ethernet Interface and RS232( or RS-485 ) | ||
| Power supply | V | AC 85-264V,50/60Hz OR DC(36-72)V | |
| Dimensions | mm | 1U L483XW200XH44 (Up to 20 channel) customization is available. | |
| 2U L483XW303XH89 (Up to 64 channel) customization is available. | |||
| 3U L483XW303XH139 (Up to 128 channel) customization is available. | |||
| 4U L483XW303XH177 (Up to 256 channel) customization is available. | |||
|
|
