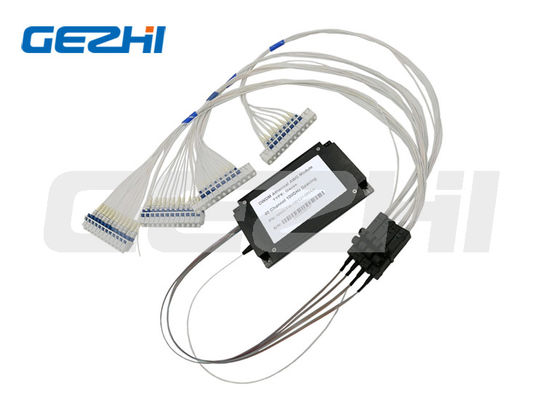

40 Channel 100GHz Athermal AAWG DWDM Module with Flat Top Gaussian Filter for High Stability Networks

Name: 40 Channel 100GHz Athermal AAWG DWDM Module with Flat Top Gaussian Filter for High Stability Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 40 Channel AAWG Module
Price: 543.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	40 Channel AAWG Module
MOQ:	1pc
Price:	US$398-US$688
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel Spacing:

100Ghz

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Athermal AAWG DWDM

100GHz AWG Module

Athermal AAWG Module

Product Description

40 CH 100GHz Athermal AAWG DWDM Module Flat Top Gaussian Filter

Product Overview

Gezhi Photonics rack-mounted 40-channel DWDM multiplexer (Mux) and Demultiplexer (DeMux) chassis provide excellent solution for infrastructure savings by aggregating 40 different wavelengths onto a single fiber. These 1U products are protocol transparent. All 40 channels are in the C-band with spacing of 100 GHz between channels using high quality AWG Gaussian technology.

Applications

Metro networks
Data center
Access Network
CATV applications
WDM Network
Telecommunication

Key Features

High isolation
Low insertion loss
Dual power supply
Can be management by console and NMS
Expoxy-free optical path
Low total integrated crosstalk
Excellent stability & reliability
Excellent wavelength accuracy & stability
Athermal design

Technical Specifications

Parameter	Value
Number of Channels	40
Channel Spacing	100Ghz
Operating Wavelength	C-band
Passband Frequency	±0.1nm
Wavelength Accuracy	±50pm
Insertion Loss	<6.0dB
Consistency of Insertion Loss	<1.2dB
Insertion Loss Flatness	<0.5dB
0.5dB Passband	>0.2nm
1dB Passband	>0.4nm
3dB Passband	>0.6nm
20dB Passband	<1.2nm
Adjacent Channel Isolation	≥25dB
Non-Adjacent Channel Isolation	≥30dB
Total Crosstalk	22 dB
Return Loss	≥40dB
Polarization Dependent Loss	<0.5ps
Polarization Mode Dispersion	<0.5ps
Maximum Load Optical Power	24dBm
Monitoring Range of Optical Power	-35dBm ~ +23dBm
Connector Form	LC/UPC
Operating Temperature	-10~+65℃
Relative Humidity	95%
Dimensions	19-inch 1U rack (440 x 220 x 44mm)
