Armored FC, SC, LC, ST, MTRJ Fiber Optic Patch Cord For Optical Communication System

Armored FC, SC, LC, ST, MTRJ Fiber Optic Patch Cord For Optical Communication System

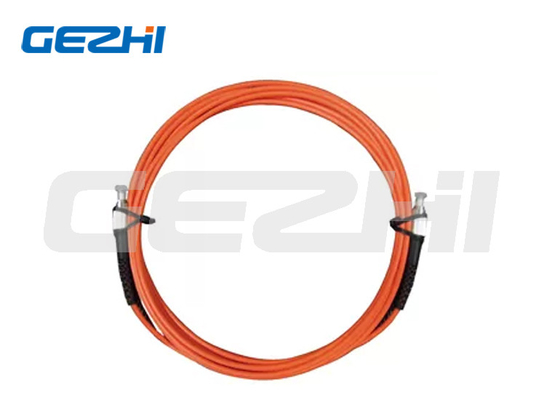

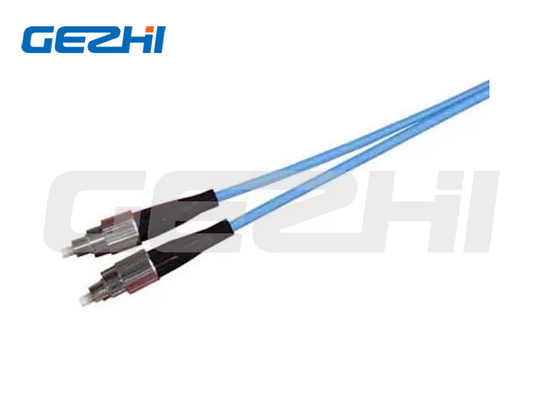

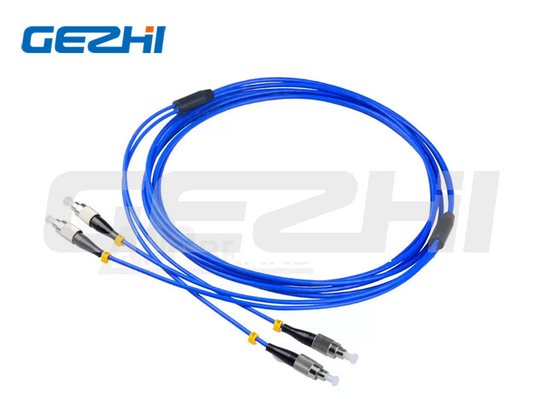

Armored FC, SC, LC, ST, MTRJ Fiber Optic Patch Cord For Optical Communication System Armored FC, SC, LC, ST, MTRJ Fiber Optic Patch Cord For Optical Communication System Armored FC, SC, LC, ST, MTRJ Fiber Optic Patch Cord For Optical Communication System

Large Image :  Armored FC, SC, LC, ST, MTRJ Fiber Optic Patch Cord For Optical Communication System

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: MTRJ fiber optic patch cord
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Product Name: Fiber Optic Patch Cord Ferrule End-face: PC, UPC, APC
Core Type: Single-mode , Multimode Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length: 1, 2, 3 Meter Or Customized Cable Type: Cable Type
High Light:

MTRJ Fiber Optic Patch Cord

,

Armored FC Optic Patch Cord

,

ST Patch Cable Series

Armored FC, SC, LC, ST, MTRJ fiber optic patch cord for optical communication system



Armoured fiber patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
Armoured fiber optic patch cords are with stainless steel tube inside the outer jacket to protect the central unit of the cable. They are strong and flexible, can be bend randomly without being broken.
Features
Steel tape armored inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional
Application
1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2.Video transmission , Data transmission
3.Active Device Termination
4.Premise Installations
5.Telecommunication and Data processing Networks
6.Industrial, medical & military
7.Systems Integration for Long Haul, Metro and Access Network

Specification

Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature ℃ -40~75 -40~75 -40~75 -40~75
Storage temperature ℃ -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9

Ordering Information
FC/ UPC–FC/ UPC-SM- DX-Φ3.0–2M
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥Cable Length: 1, 2, 3 meter or customized
⑦Cable type: PVC, LSZH, OM3, OFNR, OFNP
