Created with Pixso. SMA Armored Fiber Optical Patch Cord with 3.0mm LSZH Jacket and Low Insertion Loss for Telecom Networks
SMA Armored Fiber Optical Patch Cord with 3.0mm LSZH Jacket and Low Insertion Loss for Telecom Networks
  • name
  • name
  • name

SMA Armored Fiber Optical Patch Cord with 3.0mm LSZH Jacket and Low Insertion Loss for Telecom Networks

Brand Name: GEZHI or OEM
Model Number: SMA Fiber Jumper
MOQ: 1pc
Price: US$20-US$38
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Connector Type:
FC/SC/LC/ST
Cable Diameter:
3.0mm
Cable Color:
Blue(SM) Or Gray(MM) Or Aqua(OM3) Or Customized
Fiber Count:
1/2/4/6/8 Fibers
Cable Jacket:
PVC/LSZH/OFNR
Fiber Cords Structure:
Single Armored, Stainless Steel Tube
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

LSZH Armored Fiber Optical Patch Cord

,

SM Armored Fiber Optical Patch Cord

,

Blue Armored Fiber Optical Patch Cord

Product Description

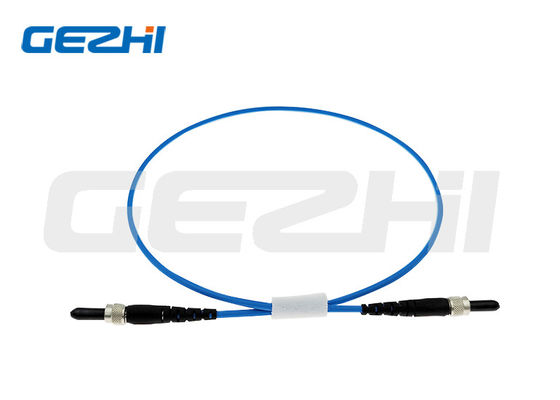

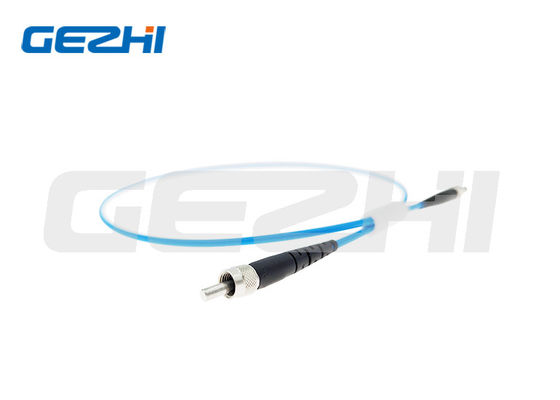

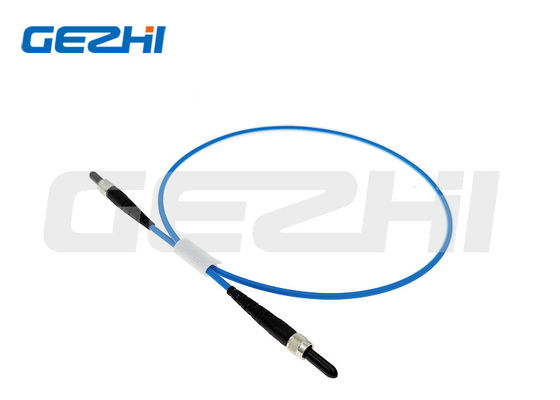

SMA Armored Fiber Optical Patch Cord Singlemode Simplex
Available in 1/2/4/6/8 fiber configurations with blue SM 3.0mm LSZH jacket
Product Overview
Gezhi Photonics provides comprehensive fiber optic patch cord customization services including connector type, length, color, fiber grade, specifications, materials, and packaging. All patch cords undergo functional testing before shipping to ensure end face cleanliness, with insertion loss and return loss meeting international telecommunication standards.
Key Features
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Excellent mechanical endurance
  • High repeatability and exchange performance
  • Green production compliant with CE and RoHS standards
Applications
  • Test Equipment
  • Telecommunication Networks
  • Local Area Networks (LANs)
  • Data Processing Networks
  • Premise Installations
  • Wide Area Networks (WANs)
  • Industrial, Medical & Military Applications
  • CATV and Metro Networks
  • Active Device Termination
SMA Armored Fiber Optical Patch Cord with 3.0mm LSZH Jacket and Low Insertion Loss for Telecom Networks 0 SMA Armored Fiber Optical Patch Cord with 3.0mm LSZH Jacket and Low Insertion Loss for Telecom Networks 1 SMA Armored Fiber Optical Patch Cord with 3.0mm LSZH Jacket and Low Insertion Loss for Telecom Networks 2
Technical Parameters
Parameter SingleMode MultiMode
Insertion Loss ≤0.2dB ≤0.3dB
Return Loss PC≥50dB, APC≥55dB, UPC≥60dB -
Insert-Pull Test 1000 times
Repeatability ≤0.1
Tensile Strength ≥10kg
Operating Temperature -40℃ to +85℃
Ceramic Ferrule Specification 125.5μm concentricity deviations: ≤1μm 127μm concentricity deviations: ≤3μm
Suitable Fiber 9/125μm 50/125μm, 62.5/125μm
