Created with Pixso. 10Gbps CWDM SFP+ Optical Transceiver Module with 80km Reach and 1490nm Wavelength

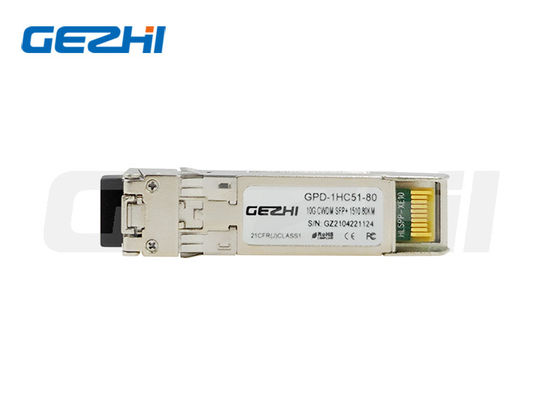

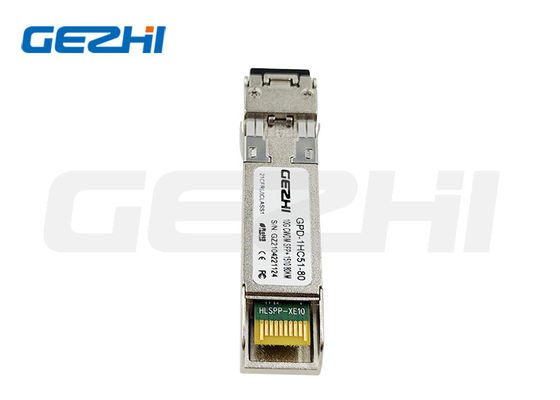

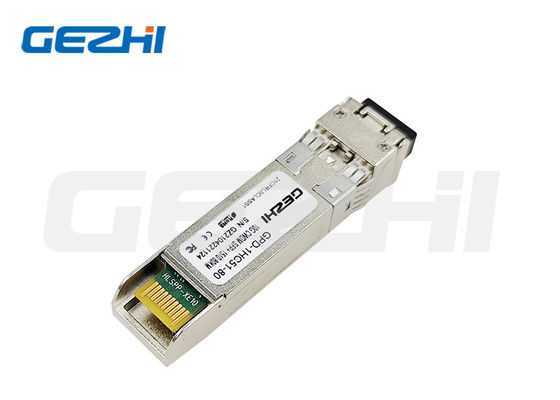

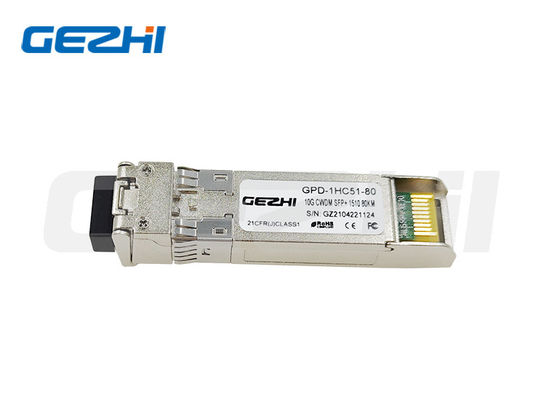

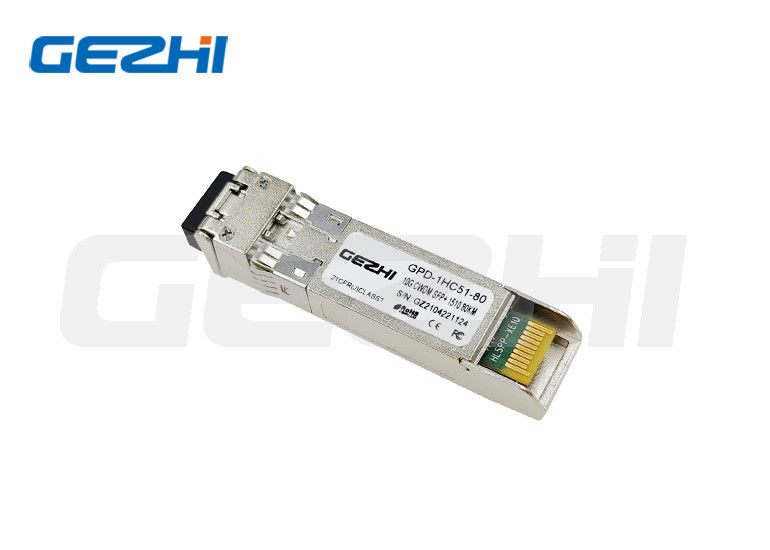

10Gbps CWDM SFP+ Optical Transceiver Module with 80km Reach and 1490nm Wavelength
  • name
  • name
  • name
  • name
  • name

10Gbps CWDM SFP+ Optical Transceiver Module with 80km Reach and 1490nm Wavelength

Brand Name: GEZHI or OEM
Model Number: CWDM 10G SFP+ ZR 80km
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Data Rate:
10Gbps
Wavelength Range:
1470-1610nm
Transmission Distance:
80km
Power Supply:
+3.3V
Operating Temperature:
0 To +70°C
Connector Type:
Duplex LC
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

10Gbps CWDM Optical Transceiver Module

,

SFP+ ZR Optical Transceiver Module

,

80km 10G SFP+ Transceiver

Product Description

Data-rate of 10Gbps CWDM SFP+ ZR 80km 1490nm SFP Optical Connector Module EML LD



Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.



Features

Data-rate of 11.3Gbps operation
9 CWDM DFB wavelengths laser and PIN photodetector for80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:Standard : 0 to +70°C



Application

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems​



Dimension





Ordering Information





P/N Product Description Date Rate Reach Wavelength Transmitter Receiver
GPD-1HCxx-40 SFP+ CWDM 10G 40km 1470~1610 EML PIN
GPD-1HCxx-80 SFP+ CWDM 10G 80km 1470~1610 EML APD
GPD-1HCxx-T1 SFP+ CWDM 10G 100km 1470~1610 EML APD
GPD-1HCxx-10 SFP+ CWDM 10G 10km 1270~1610 DFB PIN
GPD-1HCxx-40 SFP+ CWDM 10G 40km 1270~1370 DFB PIN
GPD-1HCxx-60 SFP+ CWDM 10G 60km 1270~1330 DFB APD
