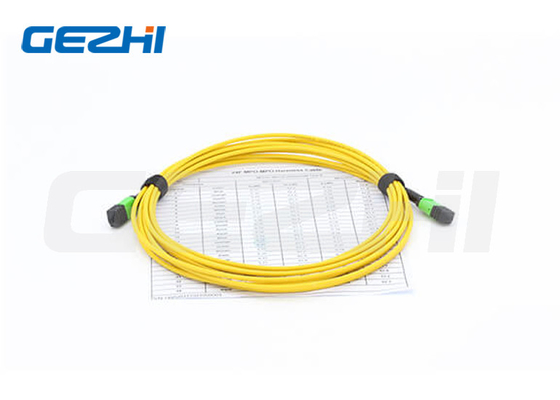

12F MPO(Female) - MPO(Female) 3.0mm LSZH Fiber Patch Cable / Trunk Cable
Product Description
The MPO Single Mode Elite Trunk Cable is working at 1310/1550nm. Its used to connect fiber optic transceivers, MPO cassettes and fiber adapter panels, etc., offering enhanced networking flexibility and facilitating moves, adds and changes for future data centers demands.
Application
1.Optical System Access network.
2.High density architectures.
3.Data communication network.
4.Storage area networking fiber channel.
Features
1.MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
2.Designed for low loss and standard loss SM and MM applications
3.Ruggedized round cable, oval cable and bare ribbon options available
4.Color coded housings available to differentiate fiber type, polish type and/or connector grade
5.Low insertion loss, high return loss
6.Economical solution for mass-termination of fiber
7.Good in repeatability and exchangeability
Specification
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
|
Insertion loss (MPO) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
MPO products’ Details& Standard
| Connector | Reference | Housing Details |
| MPO Single Mode | IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MPO) SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 |

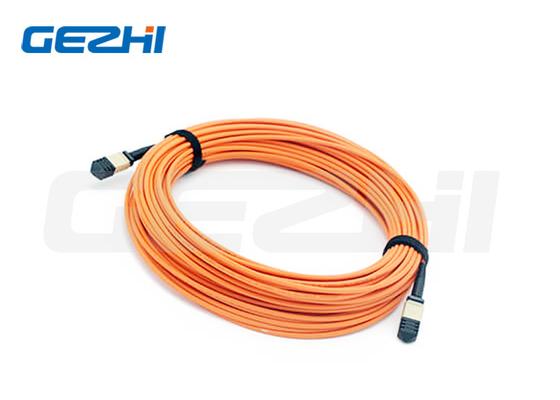

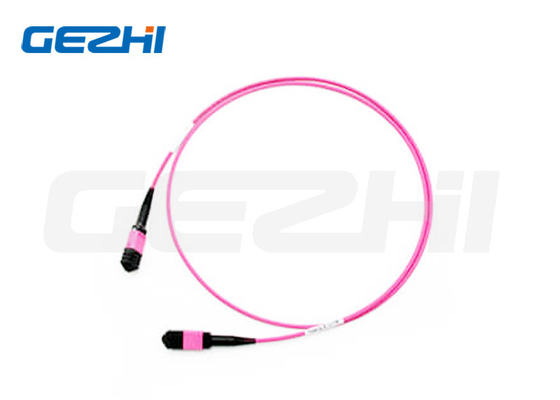

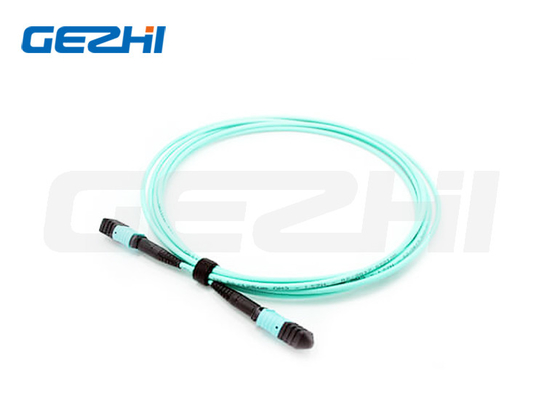

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
· Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
· Structured cabling per TIA-568-C
· 10G Fiber Channel Compliant
· 40G and 100G IEEE 802.3
| Fiber Count | OD(mm) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load(N/100mm) |
Minimum Bending Radius(MM) |
| 24 | 3.0±0.15 |
Short-term: 180； Long-term: 90 |
Short-term: 500； Long-term: 150 |
Static:10D Dynamic:20D |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | ||
| ROC-Y(ABS) | 50mm | |||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
AVAILABILITY
1.Ribbon and bundle cable available;
2.Patch cord, pigtail cable assemblies available.
3.MT-MT ribbon patch cord is available.
4.MPO Loopback available
5.HD Data center cabling connection.
