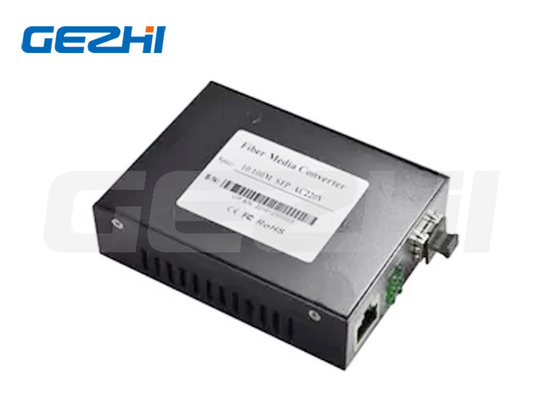

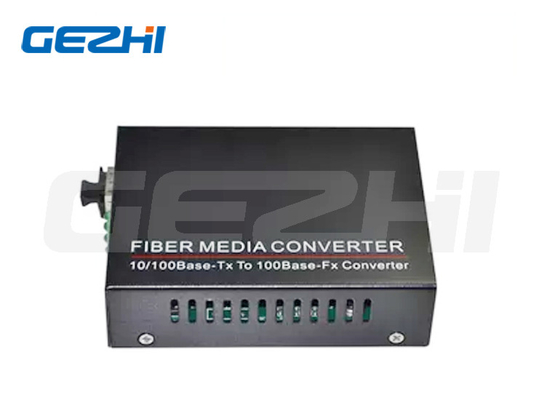

Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45
DESCRIPTION
This series converters are designed to meet the massive needs for network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 80KM.
This series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
FEATURERS
1.10/100Base-TX to 100BASE-FX Converter
2.Standard : IEEE 802.3z & 802.3ab
3.Interface: 1 x RJ-45 connector / 1 x SFP Slot
4.MDI/MDIX Auto-Crossover supported
5.LED: Power , DUP,FP-LINK,RX, ,TX
6.Plug-and-Play installation
7.Support Jumbo Frame (64-9216 Byte)
8.Support Voltage Monitor
Dimension
External power supply : 94 x 70.5 x 26.5 mm (W x D x H)
Internal power supply : 140.5 x 111 x 30 mm (W x D x H
Specifications
| Item | Specification/Term | |
| 1 | Item number | BT-950SFP series |
| 2 | Standard Protocol | IEEE802.3u,10/100Base-T,100Base-SX/LX,IEEE802.3ah, IEEE802.3z/ab |
| 3 | Flow control | IEEE802.3x port flow control and back pressure control |
| 4 | Transmission speed | 10/100M auto-negotiation |
| 5 | Transmission mode | Full-duplex/semi duplex(auto-negotiation) |
| 6 | Conversion mode | Storage transmission |
| 7 | MAC address | VLAN 4K |
| 8 | Buffer space | 128KB |
| 9 | Packet length | Storage transmission:9728Bytes,straight-through,infinite. |
| 10 | Time-delay | 9.6us |
| 11 | Bit error rate | <1/ 000000 |
| 12 | MTBF | 100,000 hours |
| 13 | Power supply | Outside: 5V DC 1A ; Build-in: 110~265V AC 48V DC |
| 14 | Power dissipation | <2.5W |
| 15 | Interface | Electric port: RJ45,Fiber port:SC/FC or SFP |
| 16 | Twisted-pair cable | Cat.5 UTP cable |
| 17 | Multimode fiber | 50/125, 62.5/125um |
| 18 | Single mode fiber | 9/125, 10/125um |
| 19 | Wavelength | 850nm/1310nm/1550nm |
| 20 | Transmit distance | |
| 1)Dual fiber multimode | 550m | |
| 2)dual fiber single mode | 20/40/60/80/100/120Km | |
| 3)single fiber single mode | 20/40/60/80Km | |
| 4)Cat.5 twisted-pair | 100m | |
| 21 | Operating temperature | 0~60℃ |
| 22 | Storage temperature | -20~70℃ |
| 23 | Humidity | 5%~90% (no condensation) |
SHIPMENT & DELIVERY
1.International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2.Payment: T / T, Western Union, Paypal and so on.
3.Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
GUARANTEE
1. Brand new.
2.OEM/ODM is available.
3.100% through quality test and aging test.
4.3 years warranty(From the date of shipment)
