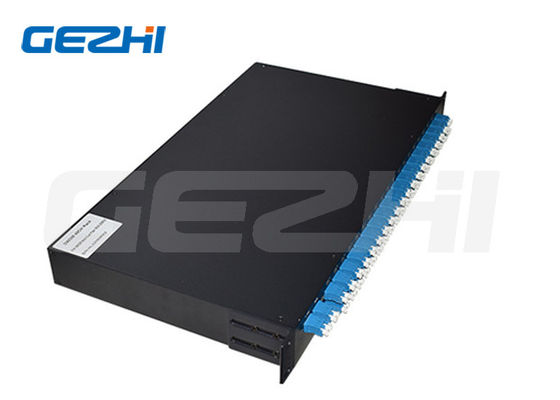

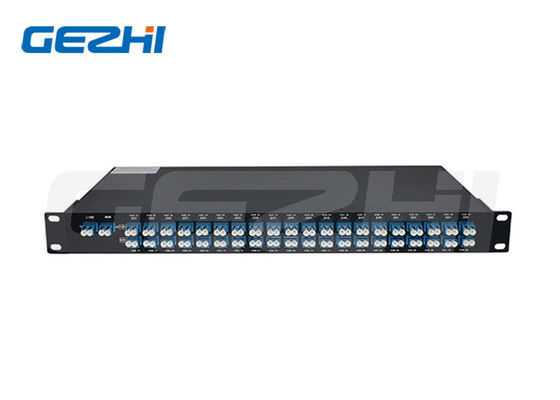

1U Rack Mount 40CH AAWG DWDM Mux Demux Module with 100GHz Channel Spacing and LC/UPC Connector

Name: 1U Rack Mount 40CH AAWG DWDM Mux Demux Module with 100GHz Channel Spacing and LC/UPC Connector
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-AWG -40CH
Price: 543.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-AWG -40CH
MOQ:	1pc
Price:	US$398-US$688
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel Count:

40ch

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1U dwdm mux demux module

40CH dwdm mux demux module

40 channel cwdm mux demux module

Product Description

1U Rack Mount DWDM Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector

Product Overview

Gezhi's 100G AAWG DWDM Equipment Gaussian Type Dual Fiber is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG with Gaussian Monolithic Technology.

Key Features

High Channel Isolation
Low Insertion Loss
Optical Path Epoxy Free
Telcordia 1221 Compliant
Ultra Low TDL
Compact Design
DWDM MUX based on ITU grid wavelength
C Band operation
Channel spacing: 0.8nm (100GHz Grid)
Protocol transparent (10Mbps to 100Gbps)
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40°C to +85°C

Applications

Dense WDM System
PON Networks
CATV Links
Telecommunication
Fiber optical amplifier
Metro/Access/FTTH

Wavelength Plan

Ch. No.	Freq (THz)	WL (nm)	Ch. No.	Freq (THz)	WL (nm)
1	C60	196.00	1529.553	21	C40	194.00	1545.322
2	C59	195.90	1530.334	22	C39	193.90	1546.119
3	C58	195.80	1531.116	23	C38	193.80	1546.917
4	C57	195.70	1531.898	24	C37	193.70	1547.715
5	C56	195.60	1532.681	25	C36	193.60	1548.515
6	C55	195.50	1533.465	26	C35	193.50	1549.315
7	C54	195.40	1534.250	27	C34	193.40	1550.116
8	C53	195.30	1535.036	28	C33	193.30	1550.918
9	C52	195.20	1535.822	29	C32	193.20	1551.721
10	C51	195.10	1536.609	30	C31	193.10	1552.524
11	C50	195.00	1537.397	31	C30	193.00	1553.329
12	C49	194.90	1538.186	32	C29	192.90	1554.134
13	C48	194.80	1538.976	33	C28	192.80	1554.940
14	C47	194.70	1539.766	34	C27	192.70	1555.747
15	C46	194.60	1540.557	35	C26	192.60	1556.555
16	C45	194.50	1541.349	36	C25	192.50	1557.363
17	C44	194.40	1542.142	37	C24	192.40	1558.173
18	C43	194.30	1542.936	38	C23	192.30	1558.983
19	C42	194.20	1543.730	39	C22	192.20	1559.794
20	C41	194.10	1544.526	40	C21	192.10	1560.606
