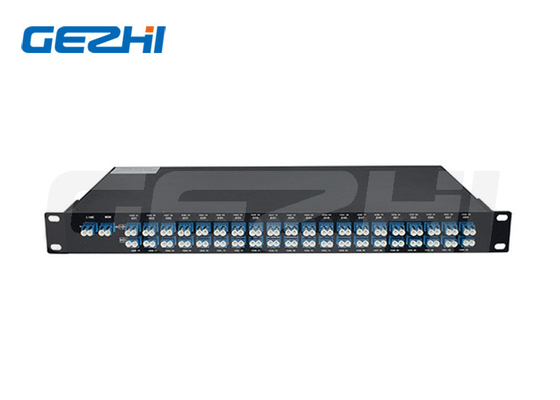

1U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector

1U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector
1U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector 1U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector

Large Image :  1U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-AWG -40CH
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Product Name: 40CH AAWG Channel: 40ch
Channel Spacing: 100GHZ Connector: LC/UPC
RoHS: Compliant Warranty: 3 Years
High Light:

1U dwdm mux demux module

,

40CH dwdm mux demux module

,

40 channel cwdm mux demux module

1U Rack Mount DWDM Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector



Product Description

Gezhi’s 100G AAWG DWDM Equipment Gaussian Type Dual Fiber is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG with Gaussian Monolithic Technology.



Features

  • High Channel Isolation
  • Low Insertion Loss
  • Optical Path Epoxy Free
  • Telcordia 1221 Compliant
  • Ultra Low TDL
  • Compact Design
  • DWDM MUX is based on the use of the wavelength ITU grid
  • C Band
  • Channel spacing: 0.8nm(100GHz Grid)
  • Protocol transparent (10Mbps to 100Gbps)
  • Compliant to G.657A1 standard
  • ISO 9001 manufacturing facility
  • Wide Operating Temperature: -40~+85℃



Applications

  • Dense WDM System
  • PON Networks
  • CATV Links
  • Telecommunication
  • Fiber optical amplifier
  • Metro/Access/FTTH

Wavelength Plan

Ch. No. Freq (THz) WL (nm) Ch. No. Freq (THz) WL (nm)
1 C60 196.00 1529.553 21 C40 194.00 1545.322
2 C59 195.90 1530.334 22 C39 193.90 1546.119
3 C58 195.80 1531.116 23 C38 193.80 1546.917
4 C57 195.70 1531.898 24 C37 193.70 1547.715
5 C56 195.60 1532.681 25 C36 193.60 1548.515
6 C55 195.50 1533.465 26 C35 193.50 1549.315
7 C54 195.40 1534.250 27 C34 193.40 1550.116
8 C53 195.30 1535.036 28 C33 193.30 1550.918
9 C52 195.20 1535.822 29 C32 193.20 1551.721
10 C51 195.10 1536.609 30 C31 193.10 1552.524
11 C50 195.00 1537.397 31 C30 193.00 1553.329
12 C49 194.90 1538.186 32 C29 192.90 1554.134
13 C48 194.80 1538.976 33 C28 192.80 1554.940
14 C47 194.70 1539.766 34 C27 192.70 1555.747
15 C46 194.60 1540.557 35 C26 192.60 1556.555
16 C45 194.50 1541.349 36 C25 192.50 1557.363
17 C44 194.40 1542.142 37 C24 192.40 1558.173
18 C43 194.30 1542.936 38 C23 192.30 1558.983
19 C42 194.20 1543.730 39 C22 192.20 1559.794
20 C41 194.10 1544.526 40 C21 192.10 1560.606



1U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector 0



1U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector 11U Rack Mount Dwdm Mux Demux Module 40CH AAWG Single / Dual Fiber LC / UPC Connector 2
