AAWG DWDM
Created with Pixso. 40 Channels Dual Fiber DWDM Mux Demux with Athermal Design in 1U Rack Mount AAWG Passive Device

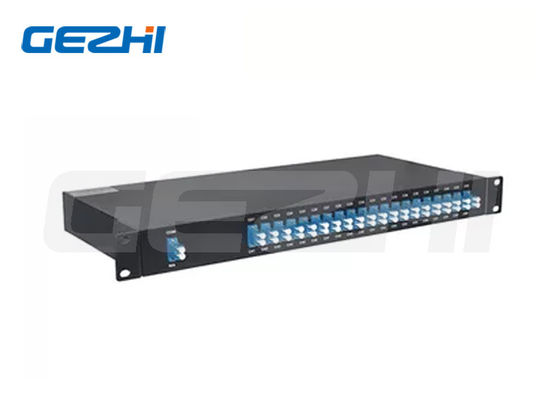

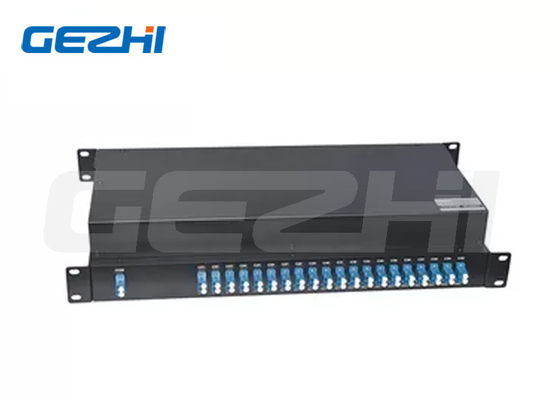

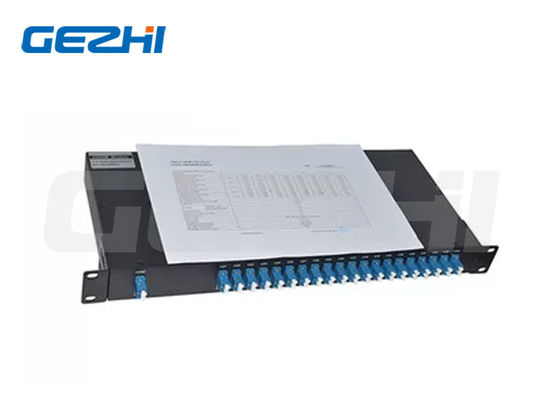

40 Channels Dual Fiber DWDM Mux Demux with Athermal Design in 1U Rack Mount AAWG Passive Device
  • name
  • name
  • name

40 Channels Dual Fiber DWDM Mux Demux with Athermal Design in 1U Rack Mount AAWG Passive Device

Brand Name: GEZHI or OEM
Model Number: GZ-AAWG
MOQ: 1pc
Price: US$398-US$688
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Channel Spacing:
100 GHz
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

FMU DWDM Mux Demux

,

40 Channels DWDM Mux Demux

,

Passive Device DWDM Mux Demux

Product Description
40 Channels Dual Fiber DWDM Mux Demux FMU 1U Rack Mount AAWG Passive Device
Product Overview

AAWG module is based on silica on silicon technology and requires no electrical power. The product offers high stability and reliability with a compact package size. It is Telcordia GR-1221-CORE qualified and RoHS compliant.

Key Features
  • Athermal design operates over operating temperature range
  • Large channel number capacity
  • Compact size for space-efficient installation
  • High stability and reliability
  • Low insertion loss and high isolation for increased system margin
Applications
  • Dense WDM Systems
  • PON Networks
  • CATV Links
Performance Specifications
Parameter Unit Value
Pass Band TypeFlat-top | Gaussian
Channel SpacingGHz100
Channel Number48/40
Wavelength Accuracynm±0.05
1dB Pass Bandnm≥0.38 | 0.2
3dB Pass Bandnm≥0.58 | 0.5
Insertion LossdB≤6.0 | 5.0
RippledB≤0.5
UniformitydB≤1.5
Adjacent CrosstalkdB≥23
Non-adjacent CrosstalkdB≥29
Total CrosstalkdB≥21
Polarization Dependent Loss (PDL)dB≤0.5
PMDps≤0.5
Chromatic Dispersionps/nm±20
Return LossdB≥40
Fiber Input Portmm0.9
Output Ribbon--
Fan Outmm0.9
Operation Temperature°C-5 to +65
Storage Temperature°C-40 to +85
Packagemm120 × 70 × 11

Note: 1. Without connector loss | 2. Design guarantee

Ordering Details
  • 2-44 Channels available
  • Com port: simplex or duplex
  • Fiber connector: LC/SC or other options
  • Package: ABS plastic box, LGX metal cassette box, 19-inch rack mount
  • DWDM Solutions and DWDM SFP/XFP available
  • Minimum order quantity: 1 piece available for samples
Packaging & Shipping

International Express: DHL, FedEx, EMS, TNT, UPS and other carriers. Delivery time: 2-7 days.

Services: OEM and ODM orders are available.

Warranty

We guarantee all advertised optical transceivers are brand new with new components and parts, never using old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Tags:

96 Channel AWG

96CH AAWG Mux Demux

60 Channel AWG Mux Demux
