Product Details:
Payment & Shipping Terms:
|
| Connector Type: | FC/APC | Storage Temperature: | -40~+85℃ |
|---|---|---|---|
| Operating Temperature: | -10~+70℃ | Package Dimensions: | 100x80x10mm |
| Center Wavelength: | 1450/1550/1660nm | Use: | WDM System |
| High Light: | Singlemode Filter WDM,Multimode 1x3 Filter WDM,DTS Systems Filter WDM |
||
Product description

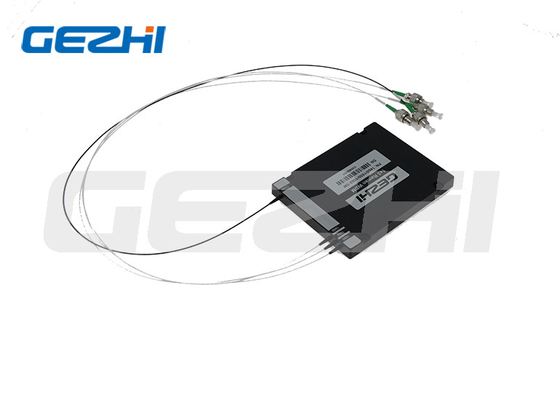

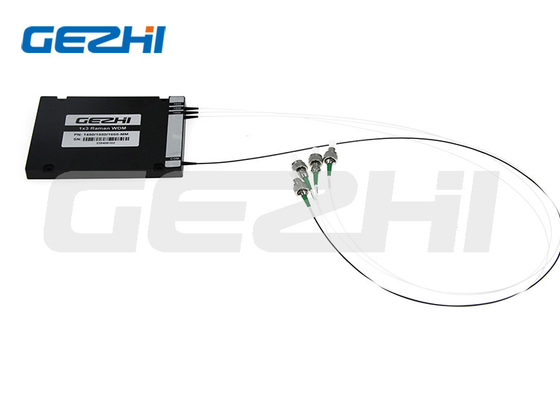

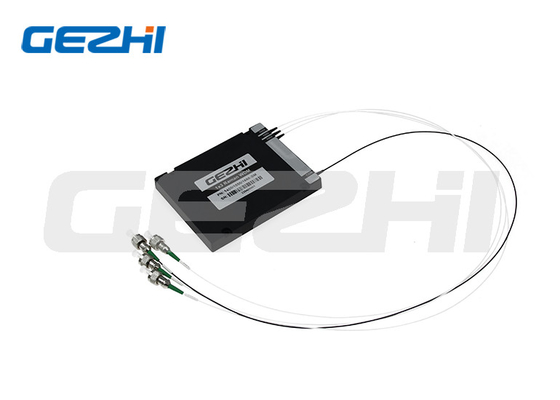

Singlemode or Multimode1x3 Raman Filter WDM for DTS Systems(1450/1550/1650nm)
This 1x3 Raman WDM is based on TFF (thin film filter) technology and can transmit multi wavelengths on one optical fiber to increase the network capacity, it used to separate and combine different signal wavelengths at 1450nm, 1550nm, and 1660nm (or 1650nm). Raman Filter WDM Designed by GEZHI Photonics Co.,Ltd with low insertion loss and high isolation Characteristic. It's widely used in Raman DTS systems or other fiber test or measurement systems.
Features
Low Insertion Loss
High Isolation
High Reliability & Stability
Applications
Raman Distributing Temperature Sensor
Fiber Sensor
Test & Measurement
Specifications
Drawing
Ordering Information
