100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface

100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface
100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface

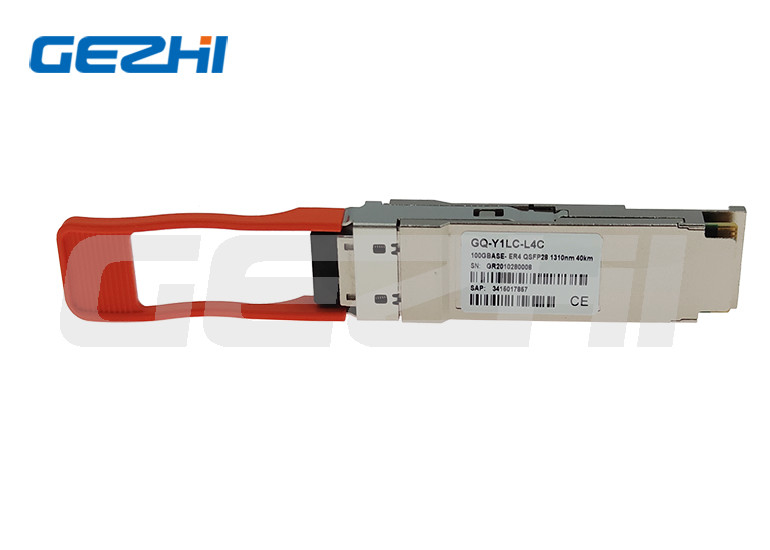

Large Image :  100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface

Product Details:
Place of Origin: China
Brand Name: Gezhi or OEM
Certification: CE RoHS,ISO9001
Model Number: 100G-QSFP28
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD >= 1 pieces $138
Packaging Details: inner box,Carton
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Detailed Product Description
Application: FTTH FTTB FTTC FTTX Network Data Rate: 100G
Fiber Connector: LC Wavelength: 1310nm
Distance: 40km Product Name: 100G ER4 40KM QSFP28
Network: TCP, Ip, POE, GPRS, Wifi
High Light:

MPO interface QSFP28 optical module

,

100KM QSFP28 optical module

,

100G QSFP28 optical module

Product description



                                    100Meter~100KM LC or MPO interface 100G QSFP28 optical module

QSFP28 100G Optical Transceiver is hot-swappable optical module, it is with low power consumption, small size and high speed, and is beneficial to increasing the capacity of the data center, improve the port density and reduce the power consumption. Gezhi 100G QSFP28 modules enables up to 112G speeds at distances up to 100km. It’s widely used in data centers, high-performance computing networks, enterprise core and distribution layer applications.



100G QSFP28 optical module are defined by MSA and IEEE. MSA defines the standards of QSFP28 CWDM4 and QSFP28 PSM4. IEEE defines the standards of QSFP28 SR4, QSFP28 SR BD, QSFP28 SWDM4, QSFP28 LR4, QSFP28 CWDM, QSFP28 DWDM, QSFP28 ER4, and QSFP28 ZR4.

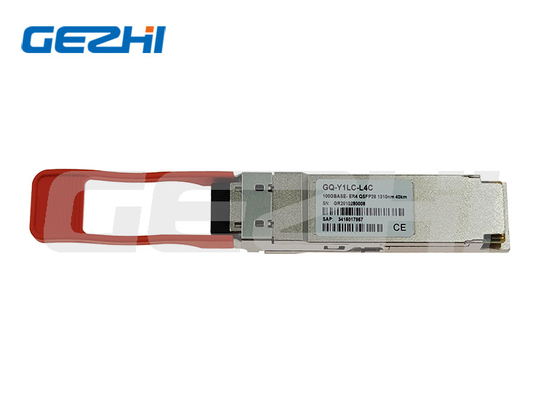

100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 0

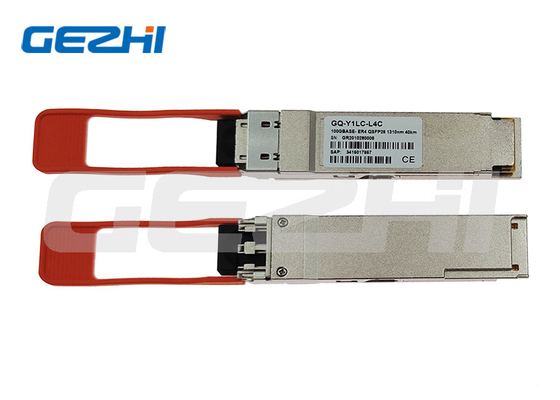

100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 1

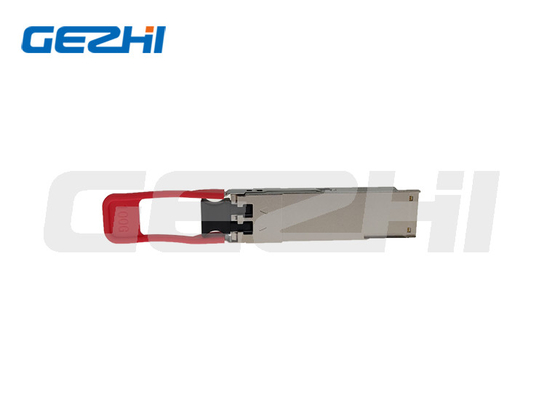

100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 2

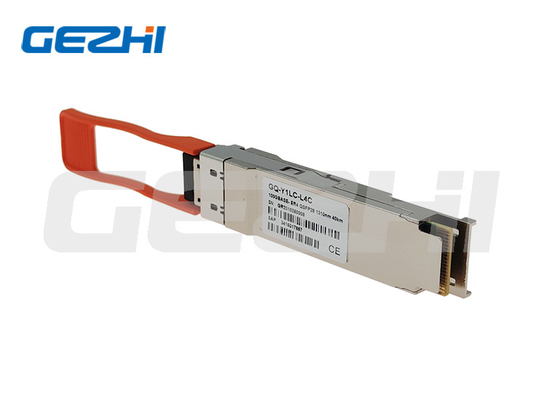

100G QSFP28 Optical Module 100Meter - 100KM LC Or MPO Interface 3



Feature



Support line rates 103.125 Gb/s

Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX

Up to 100km reach for G.652 SMF

Hot pluggable 38 pin electrical interface

QSFP28 MSA compliant

Duplex LC optical receptacle

RoHS-10 compliant and lead-free

Excellent EMI performance

Single +3.3V power supply



Ordering Information

P/N

Product

Description

Date Rate Reach Wavelength Transmitter Receiver
GQP-1KM85-Z1 QSFP28 SR4 100G 100m 850nm VCSEL PIN
GQP-1KS31-10 QSFP28 LR4 100G 10km 1310nm WDM EML PIN
GQP-1KS31-30 QSF28 ER4 Lite 100G 30km 1310nm WDM EML APD
GQP-1KS31-40 QSF28 ER4 100G 40km 1310nm WDM EML APD
GQP-1KS31-60 QSF28 ZR4 100G 60km 1310nm WDM EML APD
GQP-1KS31-80icon_pdf.gif QSF28 ZR4 100G 80km 1310nm WDM EML APD
GQP-1KS31-T0 QSF28 ZR4 100G 100km 1310nm WDM EML APD
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
