10Gps CWDM SFP+ Optical Transceiver Module 80km

Certification
China Gezhi Photonics (Shenzhen) Technology Co., Ltd. certification
China Gezhi Photonics (Shenzhen) Technology Co., Ltd. certification
Customer Reviews
We'd like to give five stars. Bought this product for deploying a DWDM network. The insertion loss is low indeed. Very efficient transmission and saved us a great bunch of fibers.

—— Charles Keith

The switch is very easy to use and can work well in the cross connection. Good quality.

—— Daniel Miller

We always got their timely replies for our CWDM issues. The 18CH mux performed cool for our 10Gbps data.

—— Pavel Yailo

The final solution meets our demands for CWDM and monitoring. We are satisfied.

—— Alexander

Very nice MUX with low insertion loss, greatly reducing my link insertion loss

—— Frank Bozich

This MUX is customized according to my requirements strictly, perfect!

—— Richard

I'm Online Chat Now

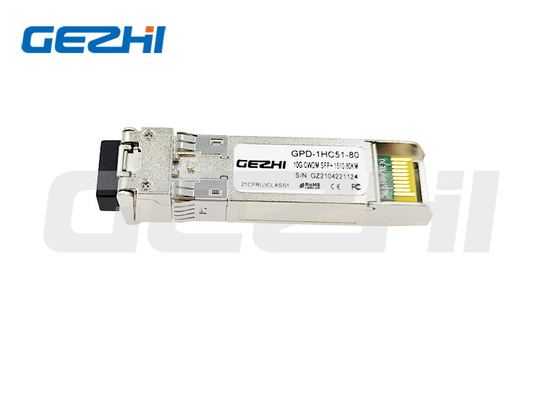

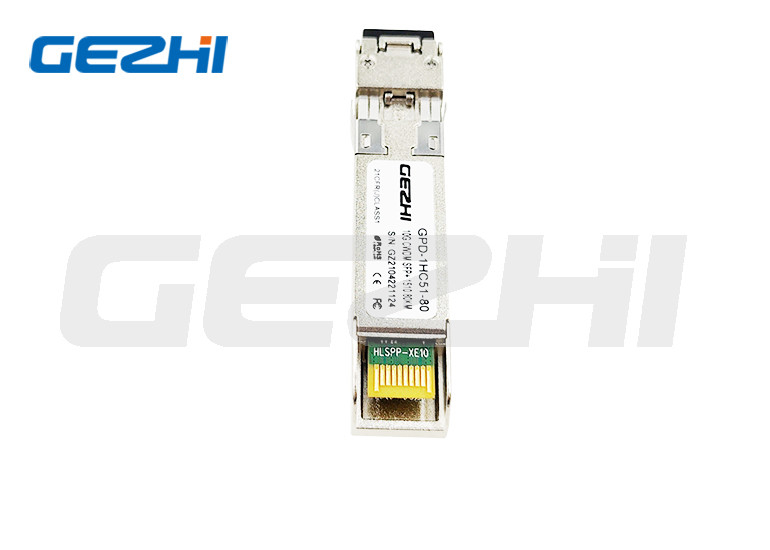

10Gps CWDM SFP+ Optical Transceiver Module 80km

10Gps CWDM SFP+ Optical Transceiver Module 80km
10Gps CWDM SFP+ Optical Transceiver Module 80km 10Gps CWDM SFP+ Optical Transceiver Module 80km 10Gps CWDM SFP+ Optical Transceiver Module 80km

Large Image :  10Gps CWDM SFP+ Optical Transceiver Module 80km

Product Details:
Place of Origin: China
Brand Name: Gezhi or OEM
Certification: CE RoHS,ISO9001
Model Number: 10Gps CWDM SFP+
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD >= 1 pieces $220
Packaging Details: inner box,Carton
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Detailed Product Description
CE,FC, RoHS: Compliant DDM: Yes
Fiber Connector: LC Distance: 80km
Data Transfer Rate: 10Gpbs Wavelength: 1270~1610nm
High Light:

10Gps CWDM SFP+ Optical Transceiver Module

,

80km CWDM SFP+ Optical Transceiver Module

Product description

                                        10Gps CWDM SFP+ Optical Transceiver Module 80km

This SFP+ transceiver supports up to 80km link lengths over single-mode fiber (SMF) via an LC duplex connector. It is compliant with SFF-8431 and SFF-8432 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for fiber communications application up to 10G.



10Gps CWDM SFP+ Optical Transceiver Module 80km 0

10Gps CWDM SFP+ Optical Transceiver Module 80km 1

10Gps CWDM SFP+ Optical Transceiver Module 80km 2

Feature

Operating data rate up to 10Gb/s ADP High Sensitivity Receiver DDM very low EMI and excellent ESD protection Single 3. 3V Power supply and TTL Logic Interface Duplex LC Connector Interface

Compliant with SFF+MSA and SFF8472
Operating temperature
Commercial: 0 ~ +70oC
Industrial: -40 ~ +85oC

PRODUCT SPECIFICATIONS
GEZHI P/N
Product Description
Date Rate
Reach
Wavelength
Transmitter
Receiver
GPD-1HCxx-40
SFP+ CWDM
10Gbps
40km
1470~1610
EML
PIN
GPD-1HCxx-80
SFP+ CWDM
10Gbps
80km
1470~1610
EML
APD
GPD-1HCxx-10
SFP+ CWDM
10Gbps
10km
1270~1610
DFB
PIN
GPD-1HCxx-40
SFP+ CWDM
10Gbps
40km
1270~1370
DFB
PIN
GPD-1HCxx-60
SFP+ CWDM
10Gbps
60km
1270~1330
DFB
APD
GSD-25Cxx-40
CWDM SFP
2.5Gbps
40km
1270~1610
DFB
PIN
GSD-25Cxx-80
CWDM SFP
2.5Gbps
80km
1270~1610
DFB
APD
GSD-25Cxx-T2
CWDM SFP
2.5Gbps
120km
1270~1610
DFB
APD
GSD-12Cxx-40
CWDM SFP
1.25Gbps
40km
1270~1610
DFB
PIN
GSD-12Cxx-80
CWDM SFP
1.25Gbps
80km
1270~1610
DFB
PIN
GSD-12Cxx-T2
CWDM SFP
1.25Gbps
120km
1270~1610
DFB
APD
GSD-12Cxx-T6
CWDM SFP
1.25Gbps
160km
1470~1610
DFB
APD



High Quality & Stability Material
10Gps CWDM SFP+ Optical Transceiver Module 80km 3
Test Enviroment
10Gps CWDM SFP+ Optical Transceiver Module 80km 4
10Gps CWDM SFP+ Optical Transceiver Module 80km 5
10Gps CWDM SFP+ Optical Transceiver Module 80km 6
10Gps CWDM SFP+ Optical Transceiver Module 80km 7
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis



SIMILAR PRODUCTS
10Gps CWDM SFP+ Optical Transceiver Module 80km 8
10Gps CWDM SFP+ Optical Transceiver Module 80km 9
10Gps CWDM SFP+ Optical Transceiver Module 80km 10



FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 4days, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-2 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
