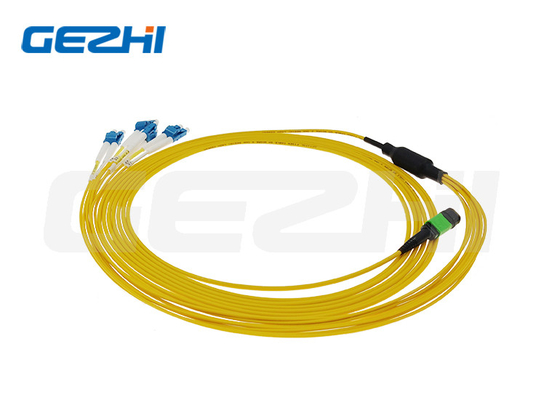

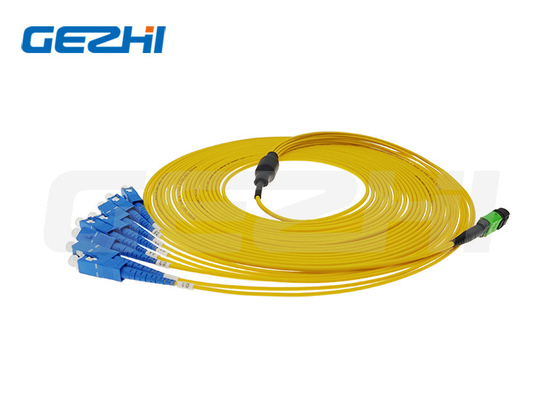

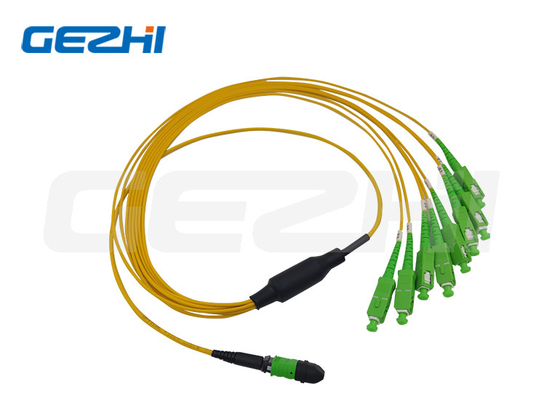

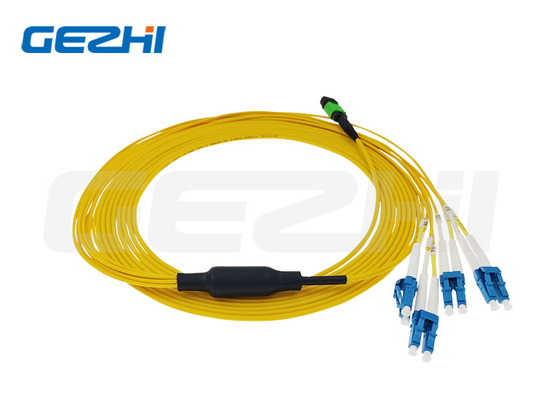

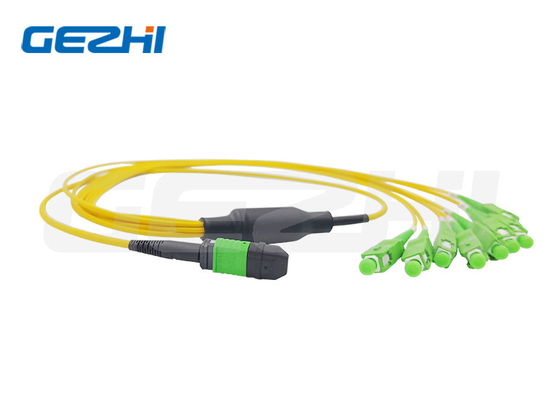

MPO Fiber Patch Cord OS2 Singlemode 8 Cores 10m Breakout Cable for Data Center and FTTH

Name: MPO Fiber Patch Cord OS2 Singlemode 8 Cores 10m Breakout Cable for Data Center and FTTH
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: MPO OS2 Breakout Cables
Price: 744.89 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	MPO OS2 Breakout Cables
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Mode:

OS2

Connector A:

MPO

Connector B:

LC, SC&FC&ST For Option

Fiber Count:

8 Fibers, 12Fibers & 24Fibers & 48Fibers For Option

Polish Type:

APC Or UPC

Insertion Loss:

≤0.70 DB (Standard), ≤0.35 DB (Elite)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Os2 Singlemode MPO Fiber Patch Cord

10m MPO Fiber Patch Cord

LC SC Simplex Fiber Patch Cord

Product Description

Product Description

MPO OS2 Breakout Cables

GEZHI Photonics manufactures data center grade fiber optic MPO patch cords. The MPO connector uses a spring loaded sliding mechanism allowing the fiber patch cord to latch onto adapters providing a secure and reliable connection for network cabling in enterprise data centers, backbone, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Each assembly is 100% factory tested to meet IEC 61753-1 standard.

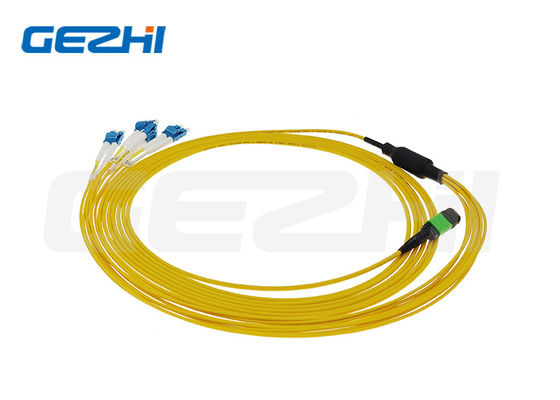

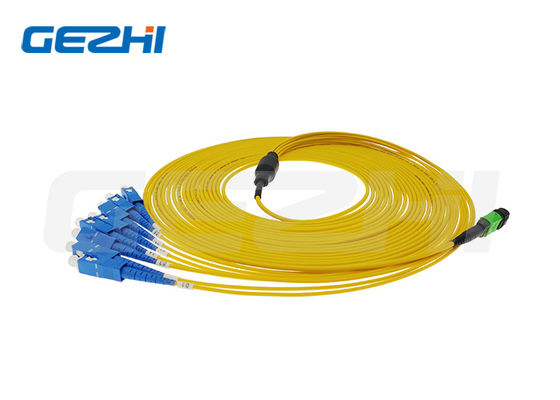

MPO Fiber Patch Cord OS2 Singlemode 8 Cores 10m Breakout Cable for Data Center and FTTH 0

Appilcation
High-density Data Center
Storage area networking
Optical System Access network
40GbE & 100GbE SR optics direct connection

Specifications

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO	SM	12F	≤0.70	≥60	≤0.35	≥60
MPO	SM	24F	≤0.75	≥60	≤0.35	≥60
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
LC/SC/FC/ST	SM	UPC	≤0.20	≥50	≤0.10	≥50

Custom Polarity

To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.

There are two different types of MPO cables – Type A and Type B as below pictures:

MPO Fiber Patch Cord OS2 Singlemode 8 Cores 10m Breakout Cable for Data Center and FTTH 1

Custom Connectors

1.Male (with pins)
The male connector is mated to the female side for adapters, cassettes or panels connection.

MPO Fiber Patch Cord OS2 Singlemode 8 Cores 10m Breakout Cable for Data Center and FTTH 2

2.Female (without pins)
The female connector can be directly connected to transceivers or other male connectors.

MPO Fiber Patch Cord OS2 Singlemode 8 Cores 10m Breakout Cable for Data Center and FTTH 3

Odering Information

Type	Mode	Fiber Count	Polarity	Grad	Connector A	Connector B	Polishing	Length
PCMPO	2=OS2 3=OM3 4=OM4 5=OM5	08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers	A=Type A B=Type B	S=Standard E=Elite	M=Male F=Female	LC=LC SC=SC FC=FC ST=ST S=Specify	P=UPC A=APC	01=1M 02=2M 05=5M 10=10M S=Specify
