| Brand Name: | Gezhi or OEM |
| Model Number: | Fiber Optic Connector |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $0.49 |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product description

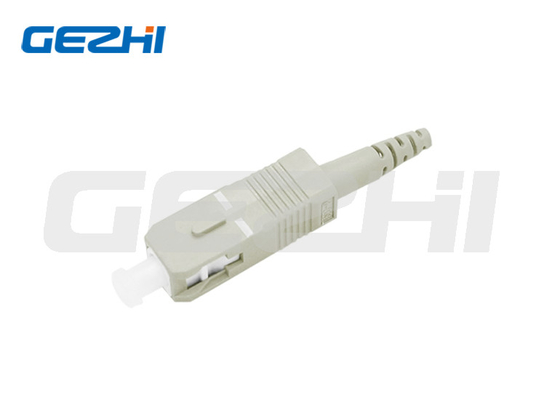

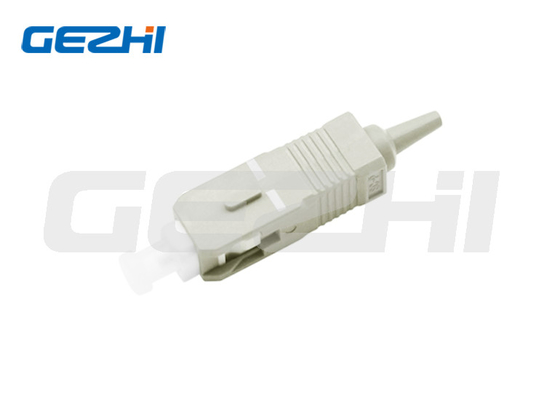

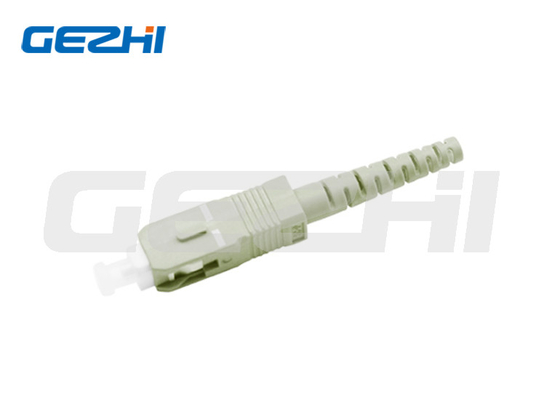

High Quality SC 0.9mm MM Connector Fiber field assembly optical fast connector
SC is the abbreviation of Subscriber Connector, which has also been referred to as Square Connector or Standard Connector. It’s a popular fiber optic connector due to its low cost, durability and simple installation for both point-to-point and passive optical networking.
Features:
Applications:
Specification
| Mode | SM | MM | |
| Polishing | UPC | APC | UPC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | |
| Ferrule Concentricity | ≤1um | ≤4um | |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.2dB | ||
| Repeatability | ≤0.1dB (1,000 times) | ||
| High Temperature | ≤0.2dB (+85°C 168 hours) | ||
| Low Temperature | ≤0.2dB (-40°C 168 hours) | ||
| Temperature Cycle | ≤0.2dB (-40°C~85°C 21 cycles 168 hours) | ||
| Humidity | ≤0.2dB (95% 75°C 168 hours) | ||
| Durability | ≥1,000 Times | ||
| Vibration | ≤0.1dB (10-55Hz 1.5mm) | ||
| Falling | ≤0.2dB (1.5m high, 8 times) | ||
| Operating Temp. | -40°C~+85°C | ||
|
|
| Brand Name: | Gezhi or OEM |
| Model Number: | Fiber Optic Connector |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $0.49 |
| Packaging Details: | inner box,Carton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product description
High Quality SC 0.9mm MM Connector Fiber field assembly optical fast connector
SC is the abbreviation of Subscriber Connector, which has also been referred to as Square Connector or Standard Connector. It’s a popular fiber optic connector due to its low cost, durability and simple installation for both point-to-point and passive optical networking.
Features:
Applications:
Specification
| Mode | SM | MM | |
| Polishing | UPC | APC | UPC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | |
| Ferrule Concentricity | ≤1um | ≤4um | |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.2dB | ||
| Repeatability | ≤0.1dB (1,000 times) | ||
| High Temperature | ≤0.2dB (+85°C 168 hours) | ||
| Low Temperature | ≤0.2dB (-40°C 168 hours) | ||
| Temperature Cycle | ≤0.2dB (-40°C~85°C 21 cycles 168 hours) | ||
| Humidity | ≤0.2dB (95% 75°C 168 hours) | ||
| Durability | ≥1,000 Times | ||
| Vibration | ≤0.1dB (10-55Hz 1.5mm) | ||
| Falling | ≤0.2dB (1.5m high, 8 times) | ||
| Operating Temp. | -40°C~+85°C | ||
