Detailed Product Description
Item Name: Mini CWDM Module Channel: 1x7
Wavelength: 1470~1590nm Connector: Customized
Application: Optional Special Service Feature: Super Thermal Stability
High Light:

1x7 CCWDM Mux Demux

,

1590nm CCWDM Module

,

Optical CCWDM Device

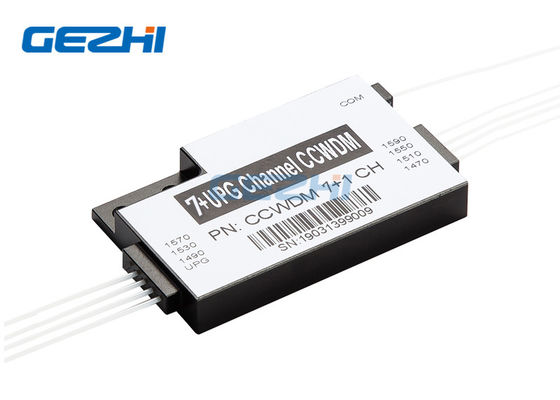

1x7 CH Mini CWDM Module Optical CCWDM Mux/Demux device



GEZHI specialized in custom configured, reliable, CCWDM products based on customer requirements. Our 1x7 CH Mini CWDM Module Optical CCWDM Mux/Demux device is based on Free Space Optics & has better uniformity versus Thin-Film Filter (TFF) designs. GEZHI's High Isolation, Low Insertion Loss, low PDL Compact CWDM Module Passive CCWDM offer high quality parameters with 7 wavelength 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm and with a upgrade port for the future development and fiber extend.



The 1x7 CH Mini CWDM Module Optical CCWDM Mux/Demux device can replace CWDM Products are used in telecommunications, PON networks, corporate networks, cable TV and other fields. The lower insertion loss makes the CCWDM module have lower signal attenuation when used, thereby reducing the power requirements of the signal transmitter.



Features

Applications

  • Super thermal stability
  • Extended Operating Temperature Available
  • Compact size
  • Ultra low loss
  • Excellent reliability
  • Telecom networks
  • Optional special service
  • Metro networks
  • CWDM system
  • Broadband Networks



Specifications

Parameter 7 Ch 7+UPG 8 Ch 8+UPG1 8+UPG2
Operating Wavelength (nm) 1260~1620
Channel Wavelength (nm) 1270,1290,...,1590,1610, or 1271,1291,...,1591,1611
UPG Port Wavelength Range(nm) NA TBD NA 1260~1360 1260~1457
Channel Spacing(nm) 20
Channel Passband (nm) CWL+/-6.5nm
Insertion Loss(dB)* ≤2.0 ≤2.0 ≤2.2 ≤2.2 ≤2.5
Channel Ripple(dB) ≤0.3
Isolation(dB) Adjacent >30
Non-adjacen >40
UPG Isolation (dB) NA >15 NA >15 >15
Polarization Mode Dispersion(PS) ≤0.2
Polarization Dependent Loss(dB) ≤0.2
Directivity(dB) >45
Return Loss(dB) >45
Maximum Power Handling(mW) 500
Operating Temperature(℃) -40~+75
Storage Temperature (℃) -40~+85
Fiber Type G657A1
Connector TBD
Package dimension(mm) L55 x W35 x H8 or L46 x W28 x H6


Unique Free-Space Technology
The 1x7 CH Mini CWDM Module Optical CCWDM Mux/Demux device adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.



Low Insertion Loss 1590nm 1x7 CH Mini Compact CWDM Module 0





1x7 CH Mini CWDM Module Optical CCWDM Mux/Demux device

Low Insertion Loss 1590nm 1x7 CH Mini Compact CWDM Module 1

Ordering Information

Configuration Channel No. Pigtail Type Fiber length Declension(mm) Connector
CC=CCWDM

70=7 Channel

71=7+UPG

80=8 Channel

81=8+UPG1

82=8+UPG2

……

0=250um

1=900um



0=0.5m

1=1m
2=1.5m
3=others

1= L55 x W35 xH8

2=L46 x W28 x H6

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC

5=LC/APC
6=LC/PC

7=others



Mechanical Drawing

TYPE 1

Low Insertion Loss 1590nm 1x7 CH Mini Compact CWDM Module 2

TYPE 2

Low Insertion Loss 1590nm 1x7 CH Mini Compact CWDM Module 3

Contact Details
Gezhi Photonics (Shenzhen) Technology Co., Ltd.

Contact Person: Ena Lin

Tel: +86-13544277727
