1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH

Name: 1471~1611nm LC/APC Compact CWDM Mux Demux Module with Low Insertion Loss for Server CATV FTTH
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-CCWDM
Price: 744.08 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-CCWDM
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Name:

Mini CWDM

Connector Type:

LC/APC Or Customer Specified

Application:

Computer, Workstation, Server, CATV, FTTH, Wdm Systems

Operating Temperature:

-5~70 ℃

Channel Bandwidth:

ITU±6.5 Nm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

CWDM Mux Demux Module For Server

CATV CWDM Mux Demux Module

LC/APC Mini CWDM

Product Description

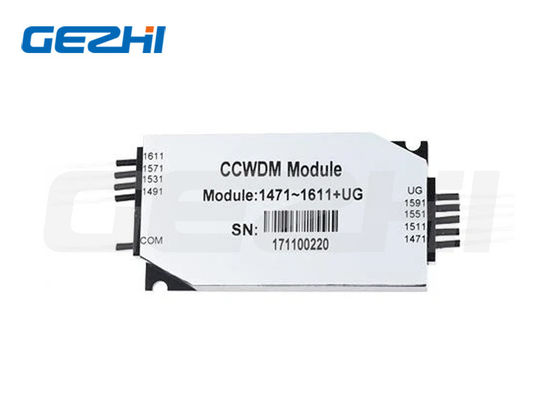

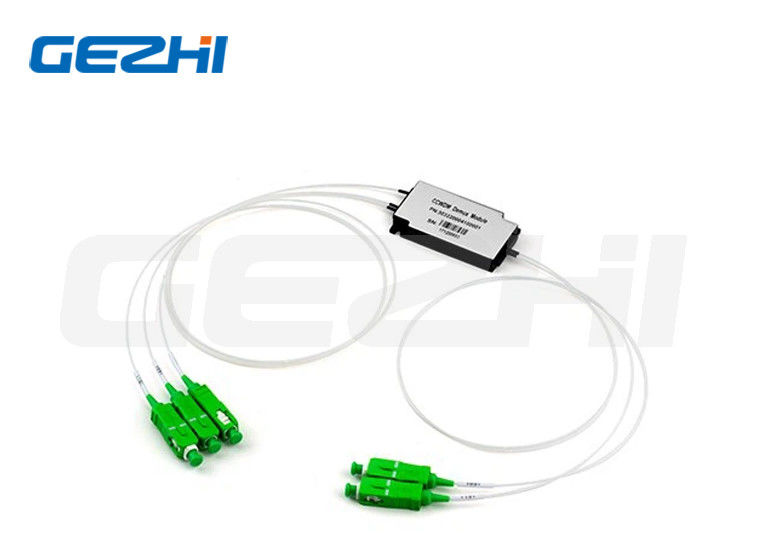

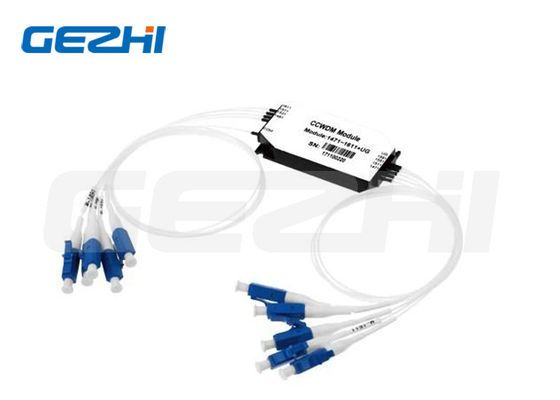

1471~1611+UG CWDM Mux Demux Module LC/APC Mini CWDM For Server CATV FTTH

CCWDM module of Gezhi is a wavelength division multiplexing technology based on TFF (thin film filter). It works in the same way as the CWDM module. The difference is that CCWDM adopts free space technology, Compared with the CWDM module, its package size is greatly reduced, and the insertion loss is lower and the consistency is better. It can replace CWDM products and be used in TC, enterprise network, PON network, CATV and other fields.

Technical Specifications

Items	Unit	CCWDM Module
Channels	CH	4 \| 8 \| 16 \| 18
Operating wavelength	nm	1260~1620
Transmission band	nm	±6.5,±7.0,±7.5
Transmission band insertion loss	dB	≤1.4 \| ≤1.7 \| ≤2.0 \| ≤2.5
Transmission Adjacent Isolation	dB	≥30
Transmission Non-adjacent isolation	dB	≥45
Return loss	dB	≥45
Directivity	dB	≥50
Ripple	dB	≤0.5
Package dimension	mm	L50xW27xH7.7,L50xW44xH7.7
Operating temperature	℃	-25~+70
Fiber type		900um loose tube
Connector type		LC/PC(or customize)

Product Drawing

Key Features

Low optical insertion loss
Low Polarization Dependent Loss
Small dimension
Cost-effective CWDM technology
Low-profile modular design
High isolation
Good channel-to-channel uniformity
Wide operating wavelength range
High reliability and high stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
RoHS-6 compliant (lead free)

Applications

CWDM system
PON network
Cable chain
