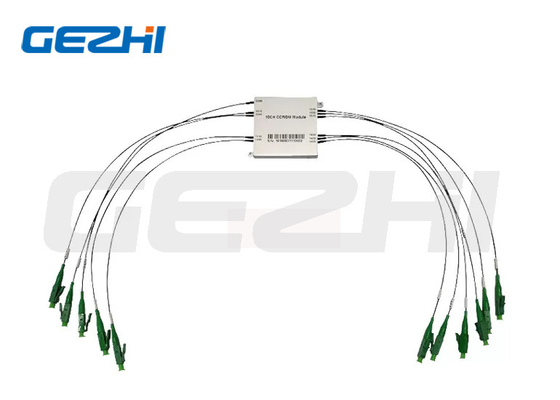

G657A1 Fiber 10ch 16ch Compact CWDM Module with 1310 Port LC/APC Connector for PON Network and CATV

Name: G657A1 Fiber 10ch 16ch Compact CWDM Module with 1310 Port LC/APC Connector for PON Network and CATV
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 10ch CCWDM Module
Price: 70.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	10ch CCWDM Module
MOQ:	1pc
Price:	US$44-US$96
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Operating Wavelength:

1270nm-1610nm

Package:

ABS Box

Connector:

LC/UPC

Fiber Type:

G657A1 0.9mm Pigtails

Application:

PON Network/CATV

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

APC Connector Compact CWDM Module

G657A1 Compact CWDM Module

0.9mm Pigtails CWDM DWDM

Product Description

G657A1 10ch 16ch Compact CWDM Module with 1310 Port LC APC Connector

Compact Coarse Wavelength Division Multiplexers (Mini CWDM, Compact CWDM, CCWDM) offer significant space savings compared to standard CWDM modules. Crowntech's Mini CWDM features a much smaller package size while delivering superior performance and parameters.

Key Features

High Isolation
Low Polarization Dependent Loss (PDL)
Wide Operating Wavelength Range: 1260nm to 1620nm
Low Insertion Loss
Compact Design, Miniature Size
Excellent Channel-to-Channel Uniformity
Wide Operating Temperature Range: -40°C to 85°C
High Reliability and Stability

Applications

CWDM Systems
PON Networks
CATV Links

Technical Parameters

Parameter	Unit	Min	Typical	Max
Channel Loss	dB		0.8	1.0
Pass Band Width	nm	13
Flatness	dB		0.3	0.5
Adjacent Channel Isolation	dB	30	35
Non-Adjacent Channel Isolation	dB	40	45
Directivity	dB	55
PDL	dB			0.2
PMD	ps			0.2
Maximum Power	mW	300
Pass Channel Insertion Loss	dB	0.8	1.0	1.5
Channel Wavelength	nm	1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 (Custom selection available for any channel between 1260-1625nm)
Operating Temperature	°C	0 to +70
Storage Temperature	°C	-40 to +85
Package Dimensions	mm	43(L) * 28(W) * 6(H) or customized
