8CH CWDM Module

8CH CWDM Module
8CH CWDM Module

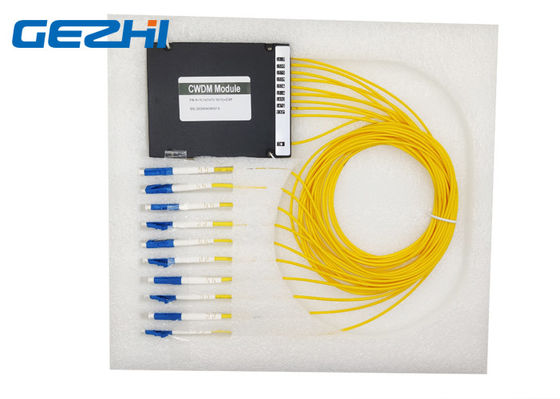

Large Image :  8CH CWDM Module

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 8CH Passive Multiplexer
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Wavelength: 1470~1610nm Channel Spacing: 20nm
Line Type: Mux Or Demux Connector: LC/UPC
High Light:

8CH Fiber CWDM Module


1610nm CWDM Passive Multiplexer


1x8 Coarse WDM


8CH 1470~1610nm CWDM Passive Multiplexer ABS Box type Coarse WDM


GEZHI’ 8CH 1470~1610nm Passive CWDM Mux or Demux Module in Optical Transport Networking System utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides high channel isolation, low insertion loss, wide pass band, low temperature sensitivity and epoxy free optical path. Our CWDM Mux Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber.


Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.




High Quality & Low Cost


Low Loss & Highly Reliable



Cellular Application

Fiber optical amplifier
Access Network

WDM network

Line monitoring



Parameter 8CH+1 Mux or Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40~85
BOX Package (mm) ABS box 100x80x10mm




CWDM Mux Demux Passive System dual Fiber with active CWDM SFP transceiver


8 Channel CWDM Mux Demux Module 1470~161nm LC For Optical Transport Networking System
