DWDM Mux Demux
Created with Pixso. SC APC Single Fiber C28 100Ghz Passive 8 Channel Dwdm Mux

SC APC Single Fiber C28 100Ghz Passive 8 Channel Dwdm Mux

Brand Name: GEZHI or OEM
Model Number: 8CHDWDM
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS ,ISO9001
Product Name:
DWDM Module
Wavelength:
C21 To C28
Channel Passband:
0.8nm (100Ghz)
Line Type:
Single Fiber
Connector:
SC/APC
Application:
Access Network
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

DWDM 8 channel multiplexer

,

Passive 8CH DWDM

,

8CH fiber optic dwdm

Product Description



8 Channel Passive DWDM Mux Demux Module Fiber Optical Components



GEZHI’ 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components is a low loss, high density passive optical module which based on the thin film coating technology with C21, C22, C23, C24, C25, C26, C27, C28 wavelengthwith a upgrade port for future development and Fibre Extender or ITU grid wavelength C1 to C61 for customs choice. The 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components offers an high channel isolation WDM solution for data centers and Metro access applications. Its package with ABS box 100x80x10mm LC/UPC pigtailed.  The 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components is ideal for long-haul transport of fiber optic singals all over a dual fiber.



Features

Low Insertion Loss

High stability and reliability

High channel

Wide pass band

Epoxy-Free Optical Path

Telcordia GR-1221 Compliant



Applications

Access / Enterprise Networks

Long Haul Networks

CATV Fiber Optic Links

Wavlength Routing

Channel Add/Drop

Dense WDM Systems
Metro Networks



GEZHI's 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components offers high-capacity terminal DWDM solutions for network expansion. This 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components with Upgrade port C21~C28 wavelength Module is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The 8 Channel Passive DWDM Mux Demux Module Fiber Optical Components with Upgrade port C21~C28 wavelength is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.



Specification

Parameter Unit 8 Channel Passive DWDM Mux Demux
Channel Number -- 1x8CH
Operation Wavelength nm C21~C28 +Upgrade Port
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <2.8
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC
Fiber Type -- SMF-28e or Customized
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Package Dimension mm ABS box 100x80x10mm



8 Channel Passive DWDM Mux Demux filter cascading

SC APC Single Fiber C28 100Ghz Passive 8 Channel Dwdm Mux 0

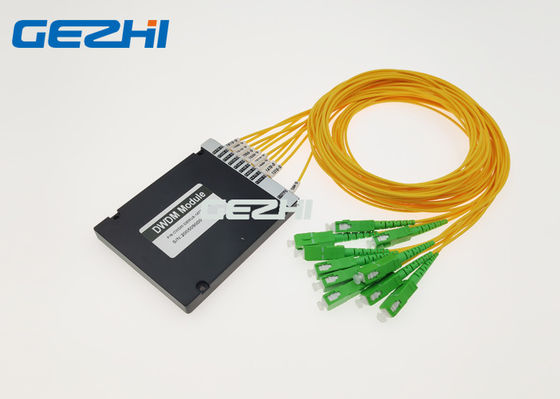

8 Channel Passive DWDM Mux Demux Module

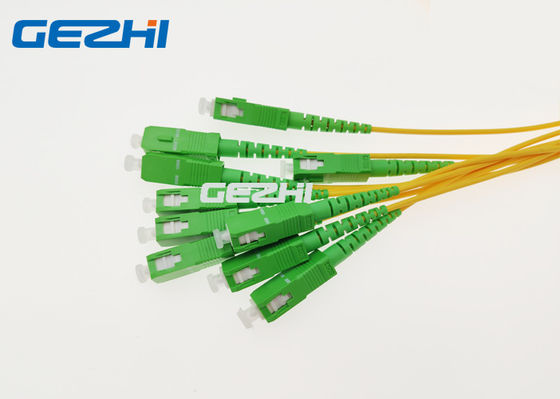

Single Fiber DWDM



SC APC Single Fiber C28 100Ghz Passive 8 Channel Dwdm Mux 1

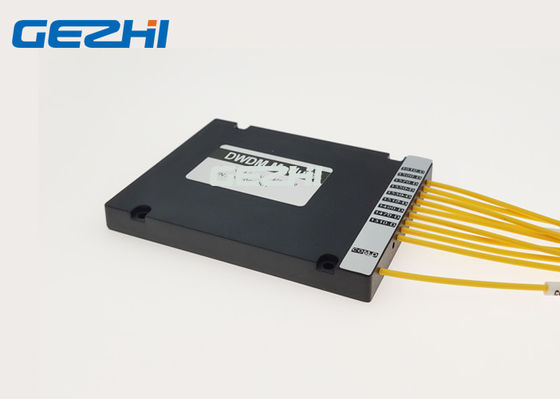

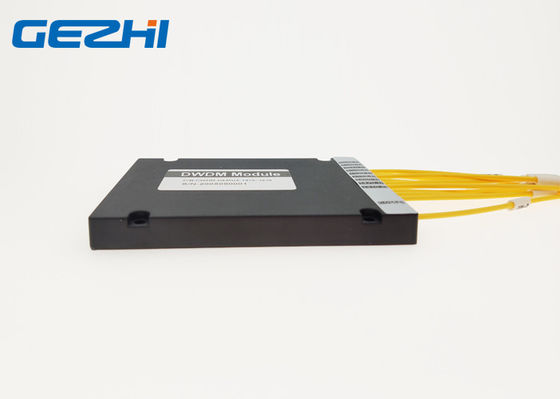

8 Channel Passive DWDM Mux Demux Package



SC APC Single Fiber C28 100Ghz Passive 8 Channel Dwdm Mux 2
