8CH DWDM Mux Demux

Name: 8CH DWDM Mux Demux
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 8CH DWDM Module
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	8CH DWDM Module
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS FCC,ISO9001

Features:

DWDM Mux/Demux/OADM

Wavelength:

C34,C35,C36,C37,C38,C39,C40,C41

Channel Passband:

0.8nm (100Ghz)

Line Type:

Dual Fiber

Connector:

LC/UPC

Product Name:

DWDM Mux & Demux Module

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

8CH DWDM Module

100Ghz DWDM Multiplexer

C41 DWDM Equipment

Product Description

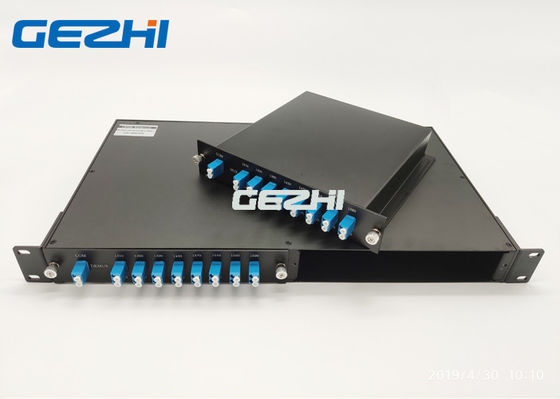

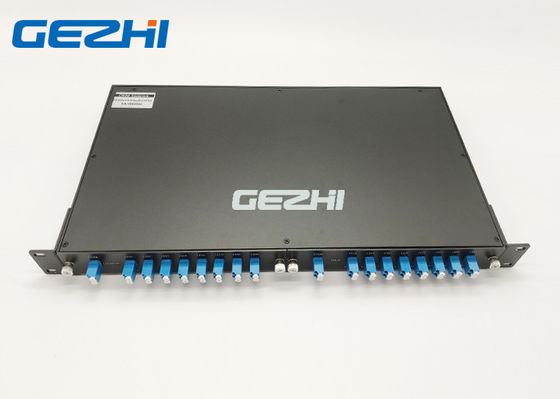

8CH DWDM Mux & Demux Module + Monitoring + Upgrade Port 2-slot 1U Rack Mount

GEZHI 8CH DWDM Module with monitoring and upgrade port. Its a 8CH DWDM Mux and a 8CH DWDM Demux packing into one LGX casstte. Then two LGX cassette packing in a 19" 1U Rackmount.

Features

ITU CWDM Grid

High Stability and Reliability

Modularized Design

DWDM Mux/Demux/OADM

Applications

FTTX

CATV Systems

WDM Network

Specification

Parameter	Unit	8+1CH DWDM Mux+Demux
Channel Number	--	8+1CH
Operation Wavelength	nm	C34~C41+1% Monitor Port
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100Ghz)
Insertion Loss @PB	dB	<2.8
Mux 1% monitoring	dB	<24.3
Demux 1% monitoring	dB	<21.5
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>34
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	SC/UPC or customized
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	ABS box 1208018mm or customized

8CH DWDM Mux & Demux Module + Monitoring + Upgrade Port CWDM Module in 2-slot 1U Rack Mount

8CH DWDM Mux Demux Test Data

8CH DWDM Mux Demux 1
