Low Loss Rackmount 16 Wavelength CWDM Passive Module

Name: Low Loss Rackmount 16 Wavelength CWDM Passive Module
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 16CH-CWDM Multiplexer
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	16CH-CWDM Multiplexer
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS ,ISO9001

Wavelength:

1310~1610nm

Channel Spacing:

20nm

Line Type:

Double Fiber

Connector:

LC/UPC

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

16CH CWDM Multiplexer

16 Channel CWDM Passive Multiplexer

1610nm Coarse WDM

Product Description

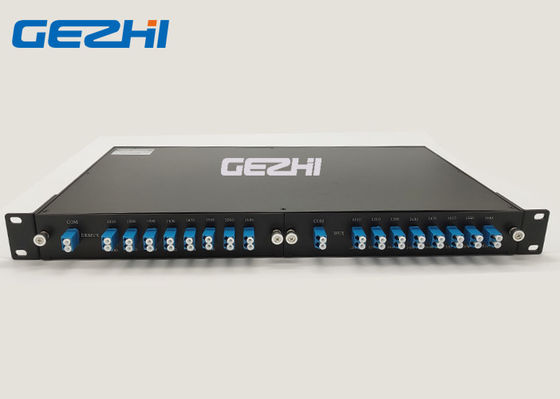

16-wavelength low loss Rackmount CWDM Passive Multiplexer Module

GEZHI 16-wavelength CWDM Multiplexer Module was packaged in 2 slot Rackmount with LC/PC pigtailed over single Fiber. Its with 1310~1610nm wavlength. The 16-Wavelength CWDM Multiplexer Module is – it is fully data rate or line protocol neutral – it is possible to use with optical transceivers supporting such applications as SDH/SONET,1G/10G Ethernet and 8/4/2/1G Fiber Channel.

GEZHI 16-wavelength CWDM Multiplexer is passive multiplexer/De-multiplexer package based on Thin-Film Filter (TFF) technology, allowing organize 16 Duplex and parallel protocol independent ITU-T G.694.2 compatible Coarse Wavelength Division Multiplex (CWDM) data streams over duplex single mode optical fiber.

Features

Low Insertation Loss – 3.0 dB
Band-Pass / Skip filters Installed

MTBF: 100+ Years

16 CWDM Data Streams over Duplex SMF
Fully Passive: No Power Supply or Cooling

Applications

Fiber Channel

Optical Add/Drop Multiplexing

Telecom Networks

SDH/SONET Network

Metro Networks

Specification

Parameter		16CH Mux + Demux
Center Wavelength (nm)		ITU, ITU+1
Passband (nm)		ITU±6.5
Operating Wavelength (nm)		1310~1610nm
Channel Space (nm)		20
Fiber Type		SMF-28e or customer specified
IL (dB)		<3.0dB with Skip
Isolation(dB)	Adjacent Channel	30
	Non-Adjacent Channel	45
PDL (dB)		0.2
PMD (ps)		0.1
Return Loss (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		500
Operating Temperature (℃)		-20~+70
Storage Temperature (℃)		-40～85
BOX Package (mm)		LGX casset in 2 Slot 1U Rackmount

16-channel Single Fiber Passive CWDM Mux/Demux

Low Loss Rackmount 16 Wavelength CWDM Passive Module 0
