LC PC Adaptor Dual Fiber Optic 18 Channels Passive CWDM

LC PC Adaptor Dual Fiber Optic 18 Channels Passive CWDM
LC PC Adaptor Dual Fiber Optic 18 Channels Passive CWDM

Large Image :  LC PC Adaptor Dual Fiber Optic 18 Channels Passive CWDM

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 1x18-CWDM-D-1U
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: Fiber Optic Passive CWDM Wavelength: 1270~1610nm
Channel Number: 18 Channels Line Type: Duplex Fiber
Connector: LC/PC Adaptor Application: Dark Fiber Networks
High Light:

1x18 passive cwdm mux

,

18Ch CWDM Mux Demux

,

18 Channels fiber optic cwdm



Fiber Optic Passive CWDM Mux and Demux Module 18 Channels Dual Fiber

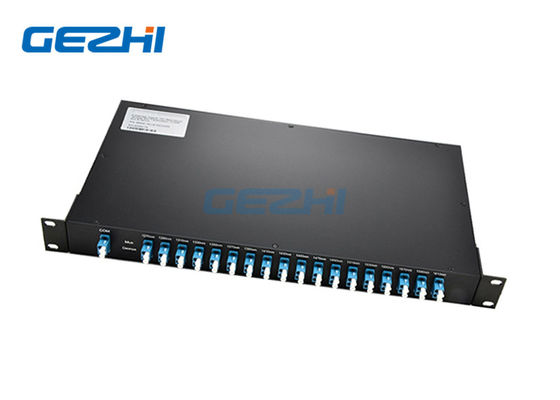

GEZHI Fiber Optic Passive CWDM Mux and Demux Module 18 Channels Dual Fiber is built-in a 18CH Mux and 18CH Demux in one 19" 1U rack-mount. The wavelenght of GEZHI Fiber Optic Passive CWDM Mux and Demux Module 18 Channels Dual Fiber is 1270nm to 1610nmThe  Fiber Optic Passive CWDM Mux and Demux Module 18 Channels Dual Fiber offers an high channel isolation WDM solution for data centers and Metro access applications. Its working on a two optical fiber with only 3.5dB link insertion loss.



Features

Applications

  • 18 channels per fiber
  • Epoxy free optical path
  • High channel isolation
  • High Quality & Low Cost
  • 3.5dB link insertion loss
  • Fully compatible with all ITU-T CWDM optics
  • Built-in Mux+Demux in one unit, working on dual network fibers
  • Dark fiber networks
  • Fiber optical amplifier
  • Optical video networks
  • Access Network
  • WDM network
  • Line monitoring​
  • Telecommunication
  • Broadcast contribution networks
  • Event production



Specification

Parameter



Unit

18Channel Fiber Optic Passive CWDM
Mux Demux
Channel Wavelength nm 1270~1610nm
Center wavelength
Accuracy
nm ±0.5
Channel Spacing nm 20
Channel Passband
(@-0.5dB bandwidth
nm >14
Max Insertion Loss dB <5.5 or <3.5 with Skip <5.5 or <3.5 with Skip
Channel Ripple dB 0.3
Isolation Adjacent dB >30
Non-adjacent dB >40
Inertion Loss Temperature
Sensitivity
dB/℃ <0.005
Wavelength Temperature
Shifting

nm/

<0.002
Polarization Dependent
Loss
dB <0.1
Polarization Mode
Dispersion
dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature -5~+75
Storage Temperature -40~85
Package dimension mm 19" 1U Rackmount



Fiber Optic Passive CWDM Mux and Demux Module 18 Channels Dual Fiber​​ ​Filter cascading

1270~1610nm, 19" 1U Rackmount, LC/UPC



18CH CWDM Mux Demux Module 1270~1610nm low loss BIDI CWDM



Packaging

LC PC Adaptor Dual Fiber Optic 18 Channels Passive CWDM 1



Fiber Optic Passive CWDM Mux and Demux Module 18 Channels Dual Fiber



LC PC Adaptor Dual Fiber Optic 18 Channels Passive CWDM 2
