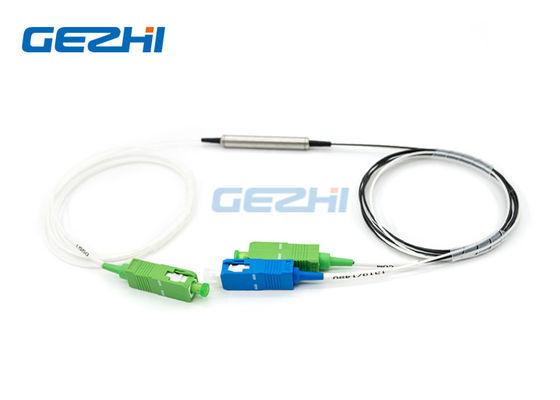

FTTH systems 3 Port 1550nm WDM Fiber Optic Components

FTTH systems 3 Port 1550nm WDM Fiber Optic Components
FTTH systems 3 Port 1550nm WDM Fiber Optic Components

Large Image :  FTTH systems 3 Port 1550nm WDM Fiber Optic Components

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 3port-FWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: WDM Filter Wavelength: Pass1550nm R1310&1490nm
Port: 3 Port PackageLGX Cassette: Stainless Steel Tube
Connector: COM&PASS:SC/APC,OTH:SC/PC Application: FTTH
High Light:

1550nm Fiber Optic Components

,

1490nm FWDM

,

1310nm Filter WDM



Filter WDM 1310/1490/1550 nm Fiber Optic Components



GEZHI's Filter WDM 1310/1490/1550 nm Fiber Optic Components utilized thin-film filter technology. It multiplexes & demultiplexer three wavelength at 1310, 1490 & 1550nm that carry the voice, data and video services. The Filter WDM 1310/1490/1550 nm Fiber Optic Components combines and separates light to realize bidirectional communication signals at 1310/1490/1550nm wavelength in a wid range. Its used in the "triple-play" FTTH systems with 1 to 2 port configuration. 3 wavelengths are fed into the device through the common input port, one wavelength is reflected from one output port, simultaneously, the other 2 wavelengths pass through the device at other output port.



  • 1310/1550nm FWDM - for WDM or DWDM optical communications
  • 1480/1550nm FWDM - for high-power DWDM optical amplifier and EDFA
  • 1510/1550nm FWDM - for DWDM multi-channel optical networks
  • 980/1550nm FWDM - for high performance DWDM optical amplifier and EDFA amplifier
  • 1310/1490/1550nm FWDM - for PON, FTTX and test instrument
  • 1310/1550/1625nm FWDM - for testing active fibers in service
  • 1310/1490/1550/1625nm FWDM - for combining or separating 1625nm channel with three triplex wavelength 1310nm, 1490nm and 1550nm so that 1625nm channel can be added into the existing triplex FTTH system



Features

Applications

  • High Isolation
  • Low Insertion loss
  • Wide Bandwidth
  • HIgh Reliability and channel isolation
  • CATV
  • WDM system
  • Fiber Lasers
  • Fiber Optic Instruments
  • Telecommunication Network System



Specification

Parameters Unit FWDM Device
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20
nm 1 T1550 R1310/1490
2 T1490 R1310/1550
3 T1310 R1490/1550
4 T1550/1610 R1310/1490
5 T1550/1625 R1310/1490
6 T1625 R1310/1490/1550
7 T1650 R1310/1490/1550
Insertion Loss dB Transmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel Isolation dB ≥ 30
Reflection Channel Isolation dB ≥ 17
PDL dB ≤ 0.1
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature -10 ~ +70
Storage Temperature -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm Φ5.5×34 Φ4.2×25 90×20×10
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.



Filter WDM 1310/1490/1550 nm Fiber Optic Components

Ordering Information:

A B C D E
Wavelength Tube Type Fiber Length
(Include connector)
Connector Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

5534=Φ5.5×34mm

4225=Φ4.2×25mm

9021=90×20×10mm

X=Customized





Package Type
  • Glass Tube Package for 250um bare fiber
  • Steel Tube package for 250um bare fiber and 900um fiber
  • ABS box for 900um, 2.0mm and 3.0mm fiber
  • Note: 250um bare fiber is too finne to be equiped with connector
Fs FS-FWDM-T31R551.jpg Fs FS-FWDM-T31R552.jpg
