| Item Name: | Passive CCWDM | Channel: | 1x18 |
|---|---|---|---|
| Wavelength: | 1270~1610nm | Connector: | LC/UPC |
| Application: | Broadband Networks | Feature: | Wide Operating Temperature |
| High Light: | Passive CCWDM,1x18 CCWDM Module,1610nm Passive CCWDM Mux |
||
Passive CCWDM Mux field Module Single fiber LC/PC Protocol independent

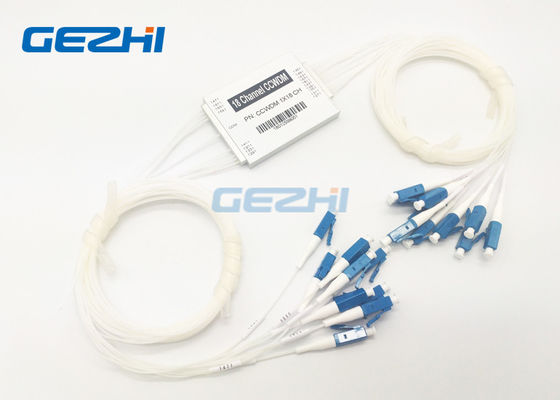

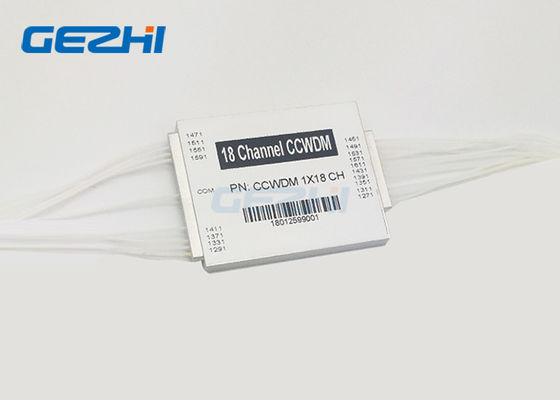

The Passive CCWDM Mux field Module Single fiber LC/PC Protocol independent from GEZHI means for adding capacity to your fiber optic network without installing additional fiber. It provides increased bandwidth and increased revenue from legacy fiber plant in one of the industry’s smallest packages. The Passive CCWDM Mux field Module Single fiber LC/PC Protocol independent is based on thin film filter technology and metal bonding micro optic packaging.
It can replace CWDM Products are used in telecommunications, corporate networks, PON networks, cable TV and other fields. The lower insertion loss makes the CCWDM module have lower signal attenuation when used, thereby reducing the power requirements of the signal transmitter.
|
Features |
Applications |
|
|
Specifications
| Parameter | 10 Ch | 12Ch | 14 Ch | 16Ch | 18Ch | |
| Operating Wavelength (nm) | 1260~1620 | |||||
| Channel Wavelength (nm) | 1270,1290,...,1590,1610, or 1271,1291,...,1591,1611 | |||||
| Channel Spacing(nm) | 20 | |||||
| Channel Passband (nm) | CWL+/-6.5nm | |||||
| Insertion Loss(dB) | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.0 | |
| Channel Ripple(dB) | ≤0.4 | |||||
| Isolation(dB) | Adjacent | >30 | ||||
| Non-adjacent | >40 | |||||
| Polarization Mode Dispersion(PS) | ≤0.2 | |||||
| Polarization Dependent Loss | ≤0.2 | |||||
| Directivity(dB) | >45 | |||||
| Return Loss(dB) | >45 | |||||
| Maximum Power Handling(mW) | 500 | |||||
| Operating Temperature(℃) | -5~+70 | |||||
| Storage Temperature(℃) | -40~85 | |||||
| Fiber Type | G657A1 | |||||
| Connector | TBD | |||||
| Package dimension(mm) | L55 x W35 x H8 | L55 x W45 x H8 | ||||
Passive CCWDM Mux field Module Single fiber LC/PC Protocol independent
Ordering Information
| Configuration | Channel No. | Pigtail Type | Fiber length | Declension(mm) | Connector |
| CC=CCWDM |
10=10 Channel 41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 …… |
0=250um 1=900um
|
0=0.5m 1=1m |
1= L55 x W35 xH8 2= L55 x W45 xH8
|
0=None 5=LC/APC 7=others |
Unique Free-Space Technology
The Passive CCWDM Mux field Module Single fiber LC/PC Protocol independent adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.
1x18 CCWDM Single Fiber Solution
Passive CCWDM Mux field Module Single fiber LC/PC Protocol independent
Mechanical Drawing
TYPE 1
TYPE 2
