Compact CWDM Module
Created with Pixso. 1491nm Wavelength 1x10 Channels Compact CWDM Module with Low PDL for PON Networks

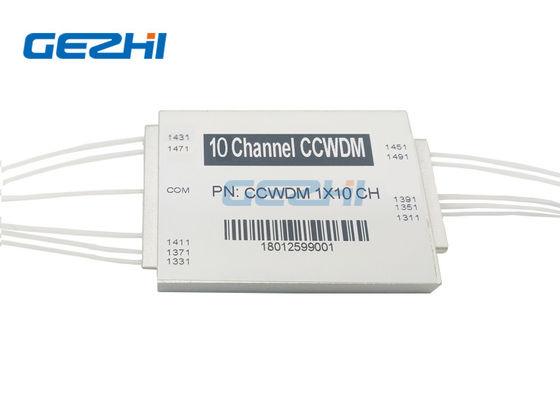

1491nm Wavelength 1x10 Channels Compact CWDM Module with Low PDL for PON Networks
  • name

1491nm Wavelength 1x10 Channels Compact CWDM Module with Low PDL for PON Networks

Brand Name: GEZHI or OEM
Model Number: CCWDM-1x10
MOQ: 1pc
Price: US$58-US$108
Delivery Time: 2-7 work days
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS ISO9001
Item Name:
Opitcal CCWDM Modules
Channel:
1x10
Wavelength:
1311~1491nm
Connector:
LC/UPC
Application:
PON Networks
Feature:
LOW PDL
Packaging Details:
2pcs in a foam with paper Box
Supply Ability:
60000pcs per month
Highlight:

1491nm CCWDM Multiplexer

,

1x10 Opitcal CCWDM Modules

,

10 Channels Passive CCWDM

Product Description
Fiber Optical Components 1491nm Optical Passive 1x10 Channels Compact CWDM Module
Optical Passive CCWDM Multiplexer / De-multiplexer 1x10 Channels Module
The Optical Passive CCWDM Multiplexer / De-multiplexer 1x10 Channels Module from GEZHI is designed to add capacity to your fiber optic network without installing additional fiber. It provides increased bandwidth and enhanced revenue generation from legacy fiber plant in one of the industry's smallest packages. This module utilizes thin film filter technology and metal bonding micro optic packaging for optimal performance.
Applications
  • PON Networks
  • Telecom Networks
  • Optical Add/Drop Multiplexing
  • Metro Networks
  • Broadband Networks
  • CATV Links
Key Features
  • Low Insertion Loss
  • High Isolation, Low PDL
  • Good Channel-to-Channel Uniformity
  • Compact Size
  • High Reliability and Stability
Technical Specifications
Parameter 10 Ch 12 Ch 14 Ch 16 Ch 18 Ch
Operating Wavelength (nm) 1260~1620
Channel Wavelength (nm) 1270,1290,...,1590,1610, or 1271,1291,...,1591,1611
Channel Spacing (nm) 20
Channel Passband (nm) CWL+/-6.5nm
Insertion Loss (dB) ≤1.5 ≤1.5 ≤1.8 ≤1.8 ≤2.0
Channel Ripple (dB) ≤0.4
Isolation (dB) Adjacent: >30, Non-adjacent: >40
Polarization Mode Dispersion (PS) ≤0.2
Polarization Dependent Loss ≤0.2
Directivity (dB) >45
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Operating Temperature (°C) -5~+70
Storage Temperature (°C) -40~85
Fiber Type G657A1
Connector TBD
Package Dimension (mm) L55 x W35 x H8 L55 x W45 x H8
Ordering Information
Configuration Channel No. Pigtail Type Fiber Length Dimension (mm) Connector
CC=CCWDM 10=10 Channel
41=4+UPG
80=8 Channel
81=8+UPG1
82=8+UPG2
12=12 Channel
...		 0=250um
1=900um		 0=0.5m
1=1m
2=1.5m
3=others		 1= L55 x W35 x H8
2= L55 x W45 x H8		 0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC
7=others
Mechanical Drawings
TYPE 1
1491nm Wavelength 1x10 Channels Compact CWDM Module with Low PDL for PON Networks 0
TYPE 2
1491nm Wavelength 1x10 Channels Compact CWDM Module with Low PDL for PON Networks 1
