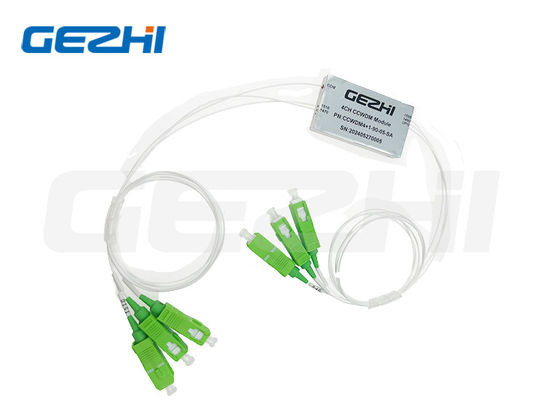

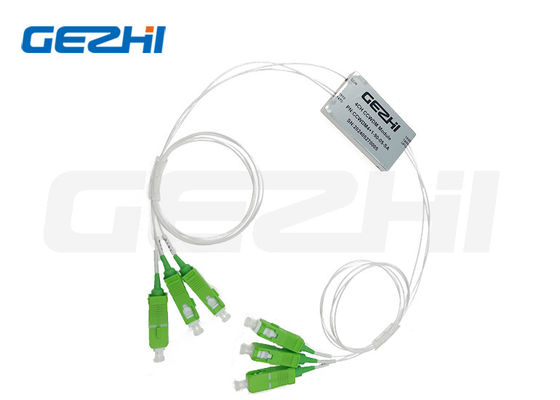

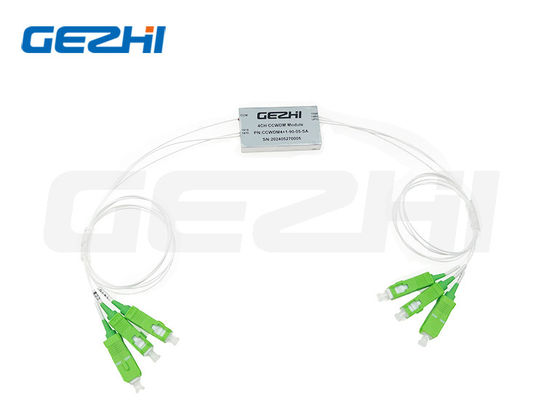

Compact CWDM Module 4+1CH with SC/APC Connector and 0.9mm Loose Tube for High Bandwidth Expansion

Name: Compact CWDM Module 4+1CH with SC/APC Connector and 0.9mm Loose Tube for High Bandwidth Expansion
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CCWDM4+1-90-05-SA
Price: 72.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CCWDM4+1-90-05-SA
MOQ:	1pc
Price:	US$48-US$96
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

CCWDM

Channel Number:

4+1CH

Wavelength:

1470nm,1490nm,1510nm,1590nm

Input/Output Connector:

SC/APC

Input/Output Length:

0.5M

Pigtail Diameter:

0.9mm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

4+1CH CCWDM Module

0.9 loose tube CCWDM Module

SC/APC CCWDM Module

Product Description

Optical WDM CCWDM 4+1CH SMF-28e With 0.9 Loose Tube SC/APC CCWDM Module Mini Cwdm

Product Overview

Optical WDM CCWDM 4+1CH SMF-28e with 0.9 loose tube SC/APC CCWDM Module

Product Description

Gezhi offers a Mini CWDM (compact CWDM) module that provides bandwidth capacity expansion for future network growth in one of the industry's smallest packages. The compact CWDM modules are based on free space optics technology. It is available in 4-or up to 18-channel configurations. These modules feature lower overall insertion loss and better uniformity across the channels. Their compact size and unique carrier tray set them apart, making them easier to deploy in a variety of field situations.

Product Specifications

Parameter	Specification
Operating Wavelength (nm)	UPG \| 1470 \| 1490 \| 1510 \| 1590
Insertion Loss (dB)	<1.0 \| 0.56 \| 0.73 \| 0.79 \| 0.63 \| 0.77
Channel Ripple (dB)	<0.3
Polarization Dependent Loss (dB)	<0.1
PMD (ps)	<0.1
Isolation - Adjacent (dB)	>30
Isolation - Non-adjacent (dB)	>45
Directivity (dB)	>50
Return Loss (dB)	>45
Fiber Length (m)	0.5
Fiber Type	SMF-28e with 0.9 Loose Tube
Connector	SC/APC
Operating Temperature	-20~+70℃
Storage Temperature	-40~+85℃
Package Dimension (mm)	50287

Our Factory

Gezhi Photonics Co., Ltd operates from a 1500 square meter workshop featuring clean, dust-free, tidy, and planned facilities. With a 20-year experienced technical team, GEZHI products are reliable, stable, and high quality. Our 160 experienced workers ensure fast, efficient, and qualified production, delivering high capacity with competitive pricing.

Gezhi Photonics collaborates with international and national telecom operators, equipment suppliers, universities, and research companies, leveraging social talent, information, and technology for enterprise development. Through excellent engineering services, custom design, technical support, product review, rapid sample prototyping, and mass production with fast delivery, we serve over 30 countries and regions including Europe, USA, Southeast Asia, and the Middle East.

Our Products

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer.

Q: Do you provide OEM service?

A: Yes, we can print your logo or label on the products or on the box.

Q: Can you provide free samples?

A: Some low-value samples can be provided free of charge, but you need to pay for the shipping cost.

Q: How can you guarantee the quality?

A: Built on our perfect quality management system, all of our products are 100% tested before shipment.

Q: What is your delivery time?

A: Generally, samples: 3-5 working days. Formal orders: 7-10 working days.

Q: What's your payment terms?

A: We accept T/T, Western Union, Money Gram, Paypal. For samples: 100% payment. Formal orders: 30% as deposit, 70% balance payment before shipment.
