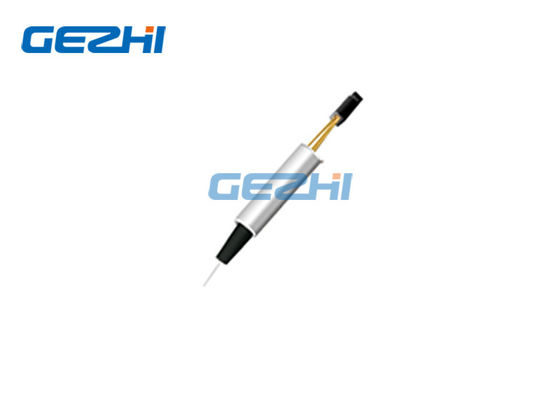

Low PDL WDM System 1330nm VOA MEMS Optical Attenuators

Low PDL WDM System 1330nm VOA MEMS Optical Attenuators
Low PDL WDM System 1330nm VOA MEMS Optical Attenuators

Large Image :  Low PDL WDM System 1330nm VOA MEMS Optical Attenuators

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ISO9001
Model Number: GZ-MVOA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Features: Mini Size Product Name: MEMS VOA
Wavelength: 1290~1330&1525~1570&1570~1610 Attenuation Range: ≥ 30 @5V
Dimension: Φ5.4×19 Application: Power Equalization In OADM
High Light:

VOA MEMS Optical Attenuators

,

WDM System MEMS Optical Attenuators

,

1330nm Optical Fiber Switch



MEMS Variable Optical Attenuators



The MEMS VOA comes in a hermetically sealed package with a diameter of only 5.4 mm. It's manufactured with the latest techniques in laser welding for achieving better stability and improved reliability.



This ultra small MEMS VOA is ideally suited for gain control in EDFA and optical instruments.



Features

Mini Size
Low Insertion Loss
Low PDL

Low Power Consumption
High Reliability



Applications

Power Equalization in OADM
WDM System
EDFA Gain-TILT Control
Optical Instruments







Specification

Parameters Unit MEMS VOA
Type   Bright Dark
Operating Wavelength nm 1290~1330&1525~1570&1570~1610
Attenuation Range dB ≥ 30 @5V
Response Time ms ≤ 5
Insertion Loss dB ≤ 0.7
Return Loss dB ≥ 50
Attenuation Slop dB/V ≤ 20

Polarization Dependent Loss



dB

0.2@0dB

0.4@0~10dB

1.0@10~20dB

Optical Power mW ≤ 500
Driving Voltage V ≤6.5
Operating Temperature °C -20~85
Storage Temperature °C -40~+85
Dimension mm Φ5.4×19





Dimension

Low PDL WDM System 1330nm VOA MEMS Optical Attenuators 0



Order Information

GZ-MVOA-A-B-C-D-E-F



Low PDL WDM System 1330nm VOA MEMS Optical Attenuators 1
