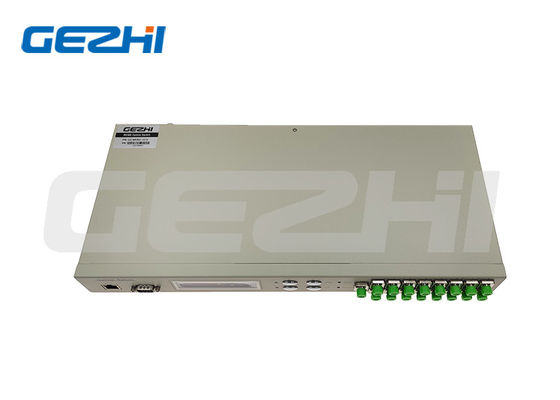

1x16 MEMS Optical Switch Rackmount with RS232 Control for Fiber Optic Networks

Name: 1x16 MEMS Optical Switch Rackmount with RS232 Control for Fiber Optic Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x16 MEMS Optical Switch Rackmount
Price: 1,212.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x16 MEMS Optical Switch Rackmount
MOQ:	1pc
Price:	US$369-US$2056
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength Range:

850/1310 For MM Or 1260~1650 For SM Or Customized

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Automatic Measurement MEMS Optical Switch

Fiber MEMS Optical Switch

1x16 MEMS Optical Switch

Product Description

Fiber Optic 1x16 MEMS Optical Switch Rackmount For Automatic Measurement

Product Overview

GEZHI's MEMS Optical Switch utilizes integrated silicon MEMS technology, available in multichannel configurations from 1x4 up to 1x256 and matrix MxN configurations including 8x8, 16x16, 16x64, and 64x64 channels. The switch package includes CMOS/TTL compatible drivers and features bidirectional operation for use in either 1xN or Nx1 orientation.

These MEMS 1xN optical switches deliver excellent optical performance and high reliability over extended lifetimes, proven in demanding applications across telecommunications, aerospace, and other industries.

Key Features

SerialNet with High Reliability and High Stability
LCD display panel for visual display and convenient operation
Transparent transmission signal with high stability and reliability
Configurable channel and time interval for automatic scanning
RS232 Control and RJ45 Ethernet Remote Management

Applications

FITL (Fiber In The Loop)
Automatic Measurement Systems
Optical Network Remote Monitoring
Cable Monitoring and Maintaining Systems

Technical Specifications

Parameter	Unit	1x8	1x12	1x16	1x24	1x32	1x64	1x128	1x256
Wavelength Range	nm	850/1310 for MM or 1260~1650 for SM or customized
Testing Wavelength	nm	850/1310, 1310/1550 or customized
Insertion Loss (Max)	dB	≤1.0	≤1.5	≤1.5	≤1.7	≤1.7	≤2.0	≤2.2	≤2.4
Return Loss	dB	MM ≥ 30, SM ≥ 45
Crosstalk	dB	MM ≥ 30, SM ≥ 45
PDL	dB	≤0.10
WDL	dB	≤0.30
TDL	dB	≤0.30
Repeatability	dB	≤0.02
Switching Time	ms	≤8 (Adjacent Channel)
Optical Power	mW	≤500
Fiber Type	um	9/125
Connector	/	FC, SC, LC, ST, SMA or customized
Monitor Port	/	RJ45 & RS232 or customized
Working Power Supply	V	AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature	℃	-10~+60
Storage Temperature	℃	-40~+85
Rack mount Dimensions	mm	1U L483XW230XH44.5 (Up to 32 channel) customization available 2U L483XW230XH89 (Up to 128 channel) customization available 3U L483XW230XH133.5 (Up to 256 channel) customization available

Product Drawings

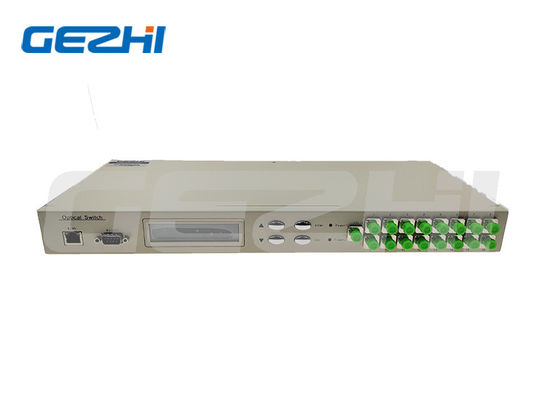

1x128 MEMS Fiber Optical Switches Rackmount Front Panel

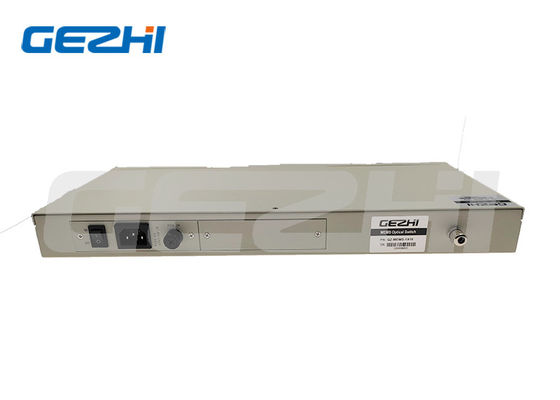

1x128 MEMS Fiber Optical Switches Back Panel

Optical Route Diagram

Ordering Information

Ordering Format: MEMS-1xN-X-XX-X-XX-XX-XX-XX

MEMS	Mode	Wavelength	Package	Fiber Type	Power Supply	Connector
1x4 1x8 1x16 1x32 1x64 1x128	S=Specify S=SM M=MM	85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm S=Specify	1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify	M5=50/125 M6=62.5/125 S9=9/125 S=Specify	AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V	00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify
