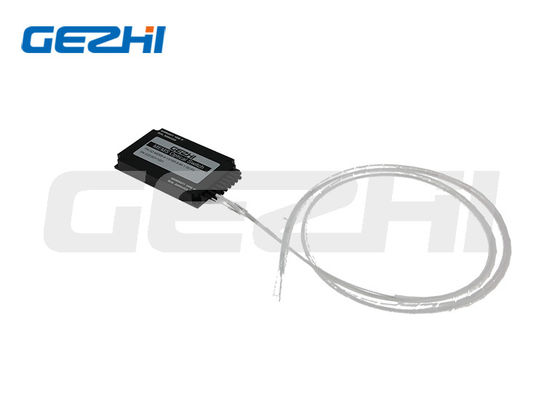

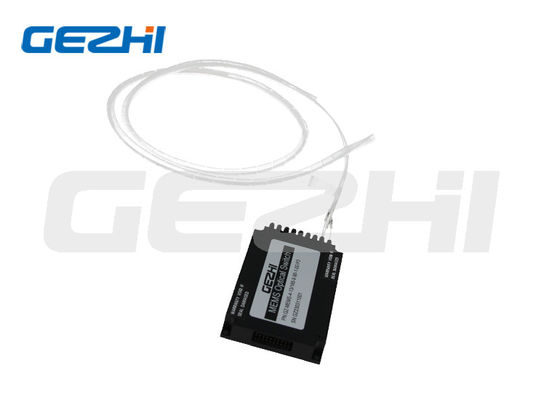

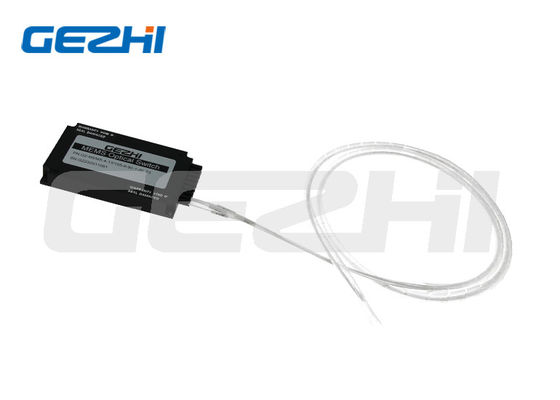

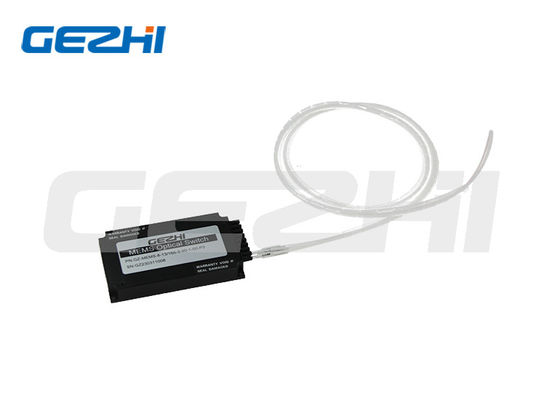

Single Mode and Multimode MEMS 1x8 Optical Switch for Data Center Fiber Sensing and Monitoring

Name: Single Mode and Multimode MEMS 1x8 Optical Switch for Data Center Fiber Sensing and Monitoring
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x4 MEMS Optical Switch
Price: 1,212.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x4 MEMS Optical Switch
MOQ:	1pc
Price:	US$369-US$2056
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Mode:

SM/MM

Packaging Details:

Paper box

Highlight:

Multimode MEMS 1x8 Module

MEMS 1x8 Module

MEMS Monitoring 1x8 Optical Switch

Product Description

Single Mode And Multimode MEMS 1x8 Module Data Center Fiber Sensing And Monitoring 1x8 Optical Switch

Single mode and Multimode MEMS 1x8 Module Data Center Fiber Sensing and Monitoring 1x8 Optical Switch

MEMS 1x8 Optical Switches

Gezhi Photonics MEMS 1X8 Fiber Optical Switch is a compact, single mode or multimode fiber optical switch configurable for port counts up to 1x64. It utilizes proprietary microelectromechanical system (MEMS) technology to achieve reliable optical performance and excellent durability. This MEMS optical switch is available in any 1XN size up to 1x64.

Features & Applications

Features of 1x8 MEMS Optical Switches

Single mode and Multi-mode
Based on MEMS technology
1XN up to 1x64, Small package
Low insertion loss, Fast switching time
High Stability, High Reliability

Applications of 1x8 MEMS Optical Switches

Optical network protection/restoration
R&D in Laboratory
Network Security and Monitoring
Optical reconfiguration
Secure Communications

Specifications of MEMS 1x8 Optical Switches

Multi-Mode Specifications

Parameter	Multi-Mode
Wavelength range (nm)	700~1700
Insertion loss (dB)	≤1.6 (Typ 0.5)
Crosstalk (dB)	≥ 45 (Typ 55)
Backreflection (dB)	≥ 35 (Typ 45)
Polarisation Dependent Loss (dB)	≤0.20 (Typ 0.07)
Switch time (ms)	≤20 (Typ 2)
Switching Voltage (V)	≤5
Fiber Pigtail (µm)	62.5/125/900 or 50/125/900
Durability (cycles)	no wear out
Power Consumption (mW)	Typ: 40
Operation temperature (°C)	0~70
Storage temperature (°C)	-40~85
Package Size (L x W x H) (mm)	76 x 93 x 9.5

Single Mode Specifications

Parameter	Single Mode
Wavelength range (nm)	1240~1640
Insertion loss (dB)	≤1.6 (Typ 1.2)
Crosstalk (dB)	≥ 60 (Typ 75)
Backreflection (dB)	≥ 45 (Typ 55)
Polarisation Dependent Loss (dB)	≤0.12
Switch time (ms)	≤1 (Typ 0.5)
Switching Voltage (V)	≤5
Fiber Pigtail (µm)	9/125/900
Durability (cycles)	no wear out
Power Consumption (mW)	Typ: 40
Operation temperature (°C)	0~70
Storage temperature (°C)	-40~85
Package Size (L x W x H) (mm)	76 x 93 x 9.5

Ordering Information

A	B	C	D	E	F
Type 1x8 Specify Custom	Wavelength 1=850nm 2=1310nm 3=1490nm 4=1550nm 5=1625nm 6=1310/1550nm 7=850/1310nm S=Specify Custom	Fiber Length (m) 0.5=0.5m 1.0=1.0m 1.5=1.5m S=Specify Custom	Fibre type 9=SMF28,9/125 50=MM 50/125 62=MM 62.5/125 S=Specify Custom	Fiber diameter 1=250um bare fibre 2=900um loose tube 3=2.0mm loose tube S=Specify Custom	Connector OO=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC SP=ST/PC SA=ST/APC LP=LC/PC LA=LC/APC X=Others
