| Product Name: | Rackmount Optical Switch | Wavelength: | 1310&1550nm |
|---|---|---|---|
| Channel: | 1x32 | Connector: | FC/PC |
| Monitoring Port: | RJ45、RS-232 | Size: | 2U:483 X 230 X 89mm |
| High Light: | FC PC Fiber Optic Switch,1x32 Fiber Optic Switch,1550nm Optical Network Switch |
||
1x32 Fiber Optic Switch Equipment for optical Network transmission

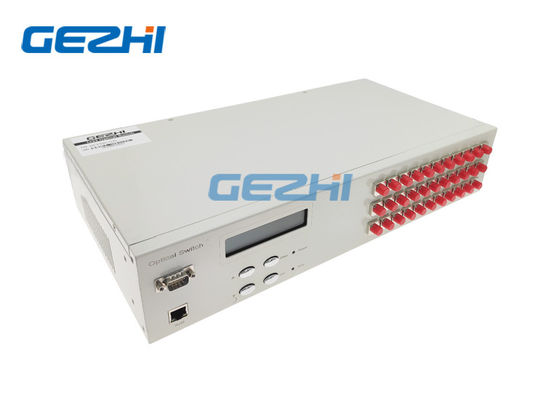

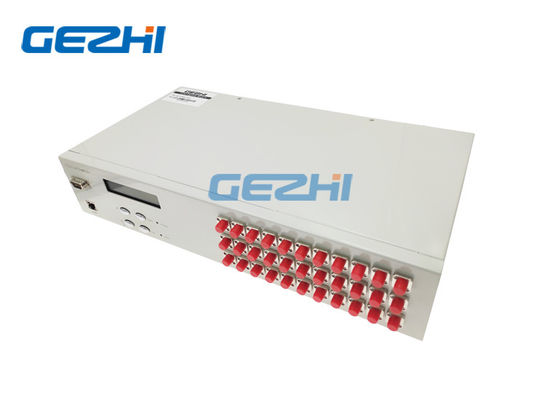

GEZHI 1X32 Rack Mount Fiber Optical Switch allow the automated and repeatable connection of one common fiber to 32 number of output or input fibers. These 1x32 Rack Mount Fiber Optical switch are bi-directional and can be used in either the 1x32 or 32x1 direction.
The Rack Mount 1X32 Optical Switches allow the automated and repeatable connection of one common fiber to 32 number of output or input fibers. These all-optical switches are bi-directional and can be used in either the 1x32 or 32x1 direction.Rack-Mounted Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This Fiber optical switch is available in any 1xN size up to 1x128.
Applications
FITL
Automatic Measurement
Cable Monitoring and Maintaining system
Optical Network Remote Monitoring
Features
Low insertion loss, Fast switching
SerialNet, High Reliability, High Stability
RS232 Control and Ethernet Remote Management
Transparent transmission signal. High stability and reliability.
LED display panel. Visual display, Convenient operation.
Channel and time interval of automatic scanning can be set up.
Specification
| Parameters | Unit | Indicators |
| Channel No. | 1xN (N≤32) | |
| Wavelength Range | nm | 1260~1650 |
| Test Wavelength | nm | 1310/1550 |
| Insertion Loss | dB | Typ: ≤0.8dB, Max:≤1.5 dB |
| Repeatability | dB | ≤ ±0.02 |
| Return Loss | dB | ≥ 45 |
| Crosstalk | dB | ≥ 70 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.05 |
| Optic Power | mW | ≤ 500 |
| Switching Time | ms | ≤10 ms(Sequence switch time of adjacent channel) |
| Fiber Type | SM(9/125um) | |
| Connector | FC/PC,FC/APC | |
| Monitoring Port | RJ45,RS-232 | |
|
Working Power Supply (Plug-type) |
V |
AC:85～ 265 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -10～ 60 |
| Size | mm | 2U:483 x 230 x 89 |

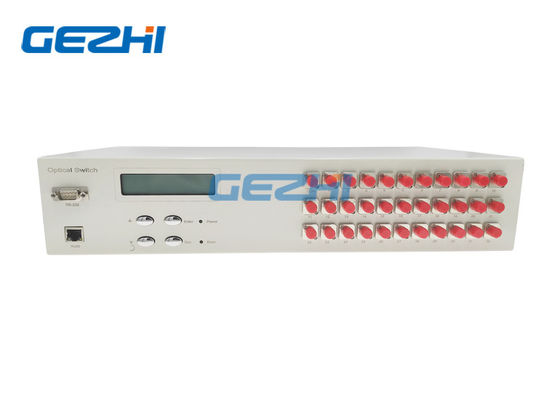

Panel to Explain:
◆ RJ45:Communications network management interface ;
◆ RS-232: Rs- serial interface ; RS232 serial communication interface;
◆ LCD:Devices that display information directly;
◆ ▲: Key to move up; ▼: Key to move down; Enter: Key to determine; Esc: Key to cancel.
◆ Power: Power light; Error: trouble lamp;
◆ com,1~32:Fiber interface;
Back Panel
◆ AC:85~265V: Power cord interface;
◆ ON/OFF: Master switch of power supply ;
Ordering Informations
| N | A | B | C | D | E | F |
| Channel | Package | Mode | Wavelength | Voltage Type | Fiber type | Connector |
| 1~32 32~64 64~128 128~256 |
1U 2U 3U 4U 6U 8U X: Other |
S:SM M:MM X: Other |
85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Other |
AC: 85-264V DC: 36-72V AC/ DC: 220V&48V |
5:50/125 6:62.5/125 9: 9/125 X: Other |
FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Other |
