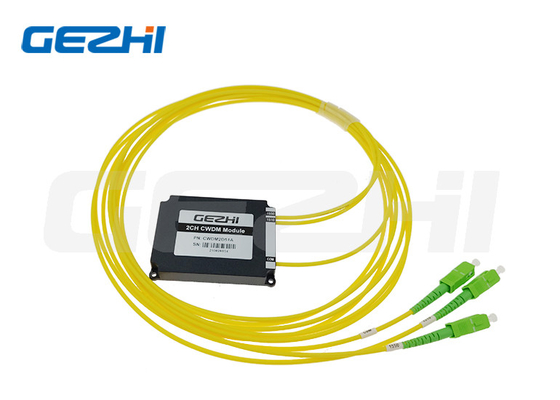

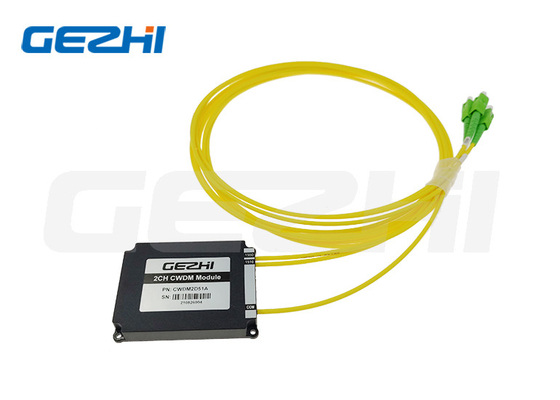

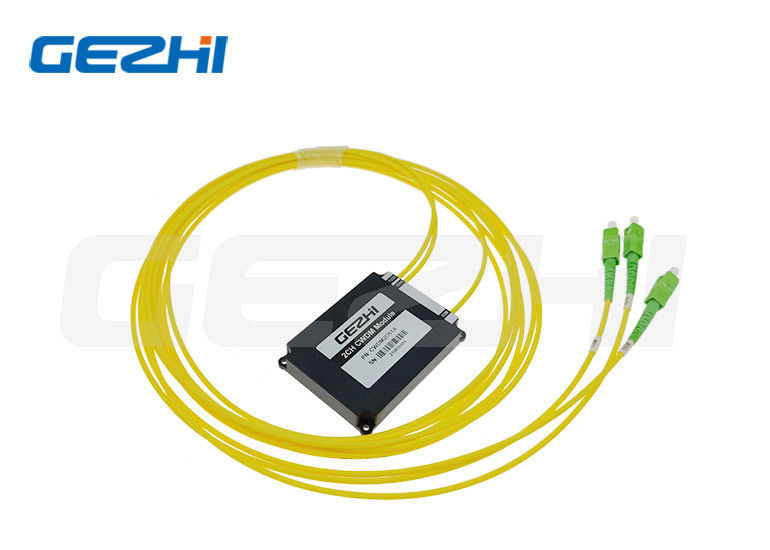

1530nm 2CH SC APC Passive CWDM Multiplexer OADM Splitter for WDM Networks

Brand Name: GEZHI or OEM
Model Number: CWDM2MXXASA
MOQ: 1pc
Price: US$20
Delivery Time: 5-8 work days
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Features:
Low Insertion Loss
Product Name:
Passive CWDM Multiplexer
Wavelength:
1510/1530nm
Channel Number:
2CH
Connector:
SC/APC
Application:
WDM Network
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

1530nm 2CH Passive CWDM Multiplexer

,

SC APC Passive CWDM Multiplexer

,

500mw OADM Fiber Optic Dwdm

Product Description
1530nm 2CH SC APC Passive CWDM Multiplexer 500mw OADM Splitter
This 2 Channel Passive CWDM Multiplexer OADM Splitter operates at 1510nm and 1530nm wavelengths with a COMMON port featuring SC/APC connectors. Designed for WDM networks, telecommunications, and optical transmission systems, this component ensures reliable performance in demanding applications.
Customizable Configuration Options
Available in multiple configurations to meet specific network requirements:
  • 1 to 18 Channels (4, 8, and 16 Channels most common)
  • Upgrade/Express port options
  • Monitor port availability
  • Multiple packaging: ABS Box, LGX Module, Rack-mount
  • Various connector types: LC/APC, LC/UPC, SC/APC, SC/UPC, FC/APC, FC/UPC, MPO
Key Features
  • Low Insertion Loss
  • RoHS Compliant
  • Telcordia GR-1209 and GR-1221 Compliance
Applications
  • WDM Network Systems
  • Telecommunication Infrastructure
  • Data Center Interconnects
Technical Specifications
ParameterSpecification
Passband (nm)ITU±7.5
Operating Wavelength (nm)1510, 1530
Channel Space (nm)20
Fiber TypeSMF-28e or customer specified
Insertion Loss (dB)<1.0
Isolation - Adjacent Channel (dB)30
Isolation - Non-Adjacent Channel (dB)45
PDL (dB)0.2
PMD (ps)0.1
Return Loss (dB)45
Directivity (dB)50
Maximum Optical Power (mw)500
Operating Temperature (°C)-20 to +70
Storage Temperature (°C)-40 to +85
ConnectorSC/APC
Package Dimensions (mm)ABS Box 80x60x12
Note: Customization services available. Specifications subject to change without notice.
GEZHI Photonics, an ISO9001 certified manufacturer based in Shenzhen, China, specializes in fiber optic passive components. All products comply with RoHS standards and offer stable performance at competitive prices. Our product range includes Optical Switches, WDM systems, AAWG modules, and customized solutions including CEx Modules, Filter WDM, DWDM, and CWDM components.
