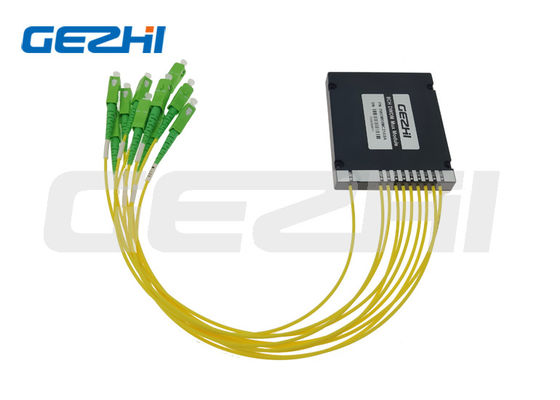

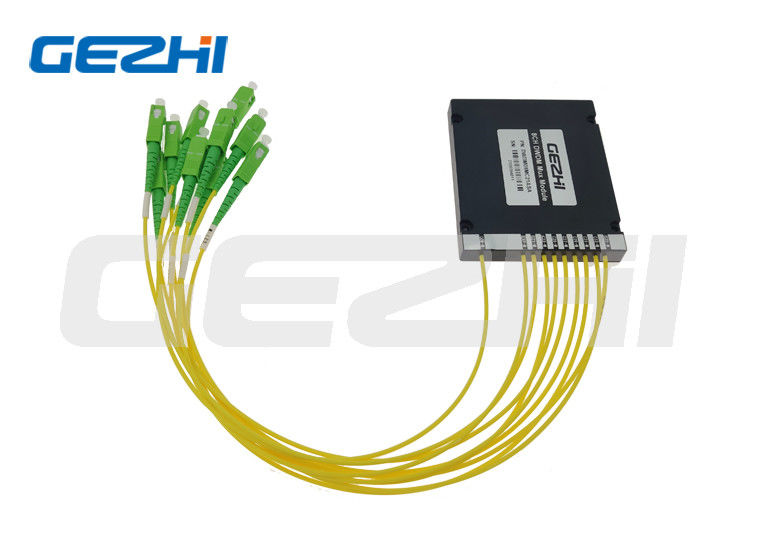

1x8 DWDM Fiber Multiplexer with 500mW Power Handling and C53-C60 Wavelength for Telecom Networks

Name: 1x8 DWDM Fiber Multiplexer with 500mW Power Handling and C53-C60 Wavelength for Telecom Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: DWDMAMEC53ASP
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	DWDMAMEC53ASP
MOQ:	1pc
Price:	US$58-US$118
Delivery Time:	5-8 work days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength Range:

C53 To C60

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1x8 DWDM Fiber Multiplexer

500mW DWDM Fiber Multiplexer

C53 C60 Demux Multiplexer Module

Product Description

1x8 DWDM Fiber Multiplexer 500mW C53 C60 Demux Multiplexer Module

DWDM Fiber Multiplexer for Telecom Applications

GEZHI offers a comprehensive range of DWDM and Optical Switches. The C53-C60 DWDM fiber multiplexer is a low-loss, high-density passive optical module based on thin film coating technology. This module supports wavelengths from C53 to C60 and includes an express port for future development, a fiber extender, and a monitor port for equipment status monitoring.

This compact module combines multiplexer and demultiplexer functionality in a small ABS box measuring 100×80×10mm for single fiber applications. With low insertion loss, high stability, and exceptional reliability, it is ideally suited for FTTX, WDM networks, data centers, and other telecommunications applications.

Features

Low Insertion Loss
High Channel Isolation
High Stability and Reliability

Applications

Data Centers
WDM Networks
Long-haul Transport

Technical Specifications

Parameter	Unit	DWDM Fiber Multiplexer
Channel Number	--	8+1CH
Operation Wavelength	nm	C53 to C60
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100GHz)
Insertion Loss @PB	dB	<2.5
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>34
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss: >45
Power Handling	mW	<500
Connector	--	LC/UPC or customized
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	ABS box 100×80×10

About GEZHI Photonics Co., Ltd: A leading manufacturer specializing in CEx WDM, DWDM, AWG DWDM Modules, CWDM, Filter WDM, Mechanical Optical Switches (1x1, 1x2, 2x2B, 2x2F, 2x4, 4x4, 1x4, 1x8, 1xN Multi Channel), Optical Switch Equipment, MEMS Optical Switches, MEM VOA, and Optical Patch Cords.

Filter Cascading

Single Fiber DWDM Optics Transmission Solution

Product Package
