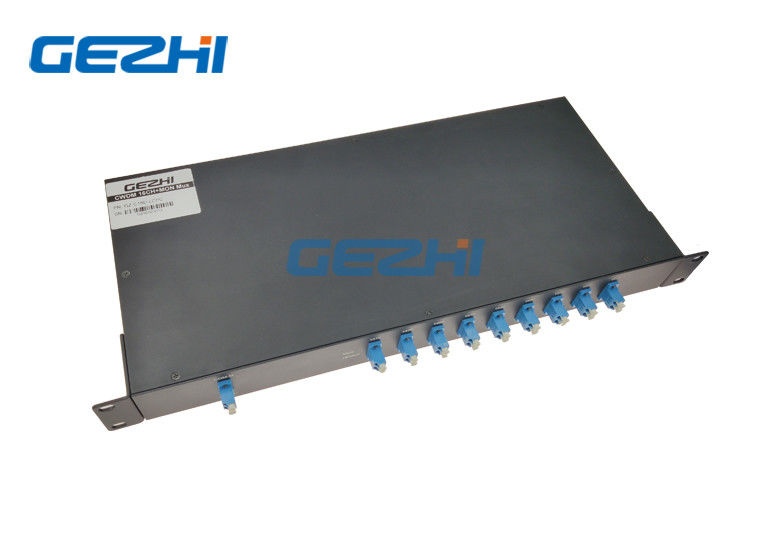

Created with Pixso. 1x16 Channel CWDM Multiplexer Module with LC/UPC Connector for Data Center Applications
name
  • name
  • name

1x16 Channel CWDM Multiplexer Module with LC/UPC Connector for Data Center Applications

Brand Name: GEZHI or OEM
Model Number: CWDM16CH31LPR
MOQ: 1pcs
Price: US$200-US$440
Delivery Time: 5-8 work days
Payment Terms: T/T,Paypal,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE/RoHS/ISO9001
Document:
CWDM Rackmount.doc
ITEM Name:
CWDM Multiplexer
Wavelength:
1310~1610nm
Line:
Dual Fiber
Package:
19" 1U Rack
Connector:
LC/UPC
Application:
Data Center
Packaging Details:
paper box with foam
Supply Ability:
100000Channel per month
Highlight:

1x16 CWDM Multiplexer

,

Dual Fiber CWDM Multiplexer

,

1x16 CWDM Modules

Product Description

1x16 CWDM Multiplexer Modules LC/UPC Connector Dual Fiber For Data Center

GEZHI Coarse Wavelength Division Multiplexing (CWDM) modules utilize fiber optical multiplexers to combine different wavelengths of light signals into a single optical fiber for transmission. At the receiving end, the mixed signal is decomposed into individual wavelength signals and connected to respective receiving apparatus.

The 1x16 CWDM Multiplexer Modules with LC/UPC connectors over duplex single mode fiber provide an efficient solution to extend your overall bandwidth. These modules offer high stability and reliability with operating wavelengths from 1270nm to 1610nm (1261nm-1611nm), providing 18 channels with 20nm channel spacing.

Key Features & Applications

Features

  • Low Insertion Loss
  • High Isolation
  • Low PDL
  • Good channel-to-channel uniformity

Applications

  • CWDM Systems
  • PON Networks
  • CATV Links

Technical Specifications

Parameter 4 Channel 8 Channel 18 Channel
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.0
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) - Adjacent N/A >30 N/A >30 N/A >30
Isolation (dB) - Non-adjacent N/A >40
Insertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Operating Temperature (°C) -20~+75
Storage Temperature (°C) -40~85
Package dimension (mm) 19" 1U Rack Mount

16CH CWDM Mux/Demux Filter cascading
2 Units 16CH CWDM Mux/Demux FMU Plug-in Module in 2-Slot 1U 19" Rack Chassis
 1x16 Channel CWDM Multiplexer Module with LC/UPC Connector for Data Center Applications
