Rack Mount ABS Module DWDM MUX DEMUX 8 Channel 1310/1490/1550nm CATV PON WDM

GEZHI Photonics Co.,Ltd is a factory which mainly produce CEx WDM, DWDM, AWG DWDM Module, CWDM, Filter WDM, Mechanical Optical Switch like 1x1, 1x2, 2x2B, 2x2F, 2x4, 4x4, 1x4, 1x8 and 1xN Multi Channel Optical Switch, Optical Switch Equipment, MEMS Optical Switch, MEM VOA, Optical Patch Cord etc.

C53-C60 dwdm fiber Multiplexer DWDM Optics in telecom

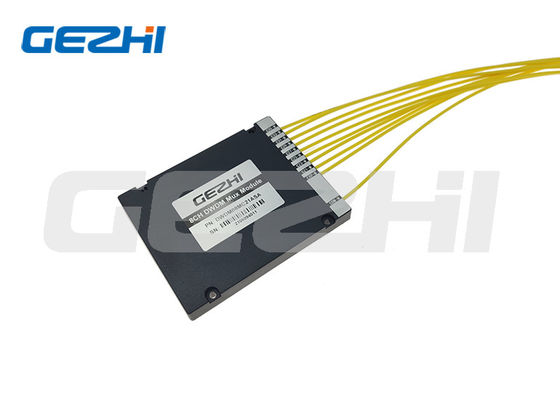

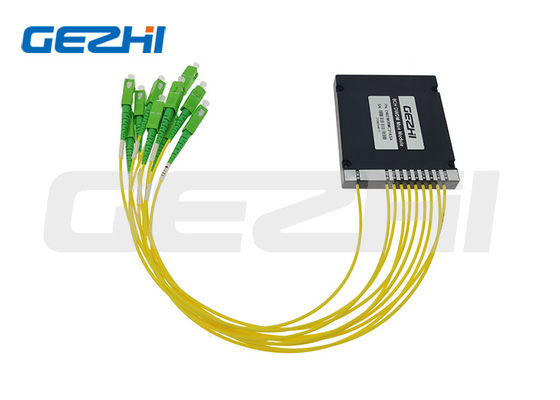

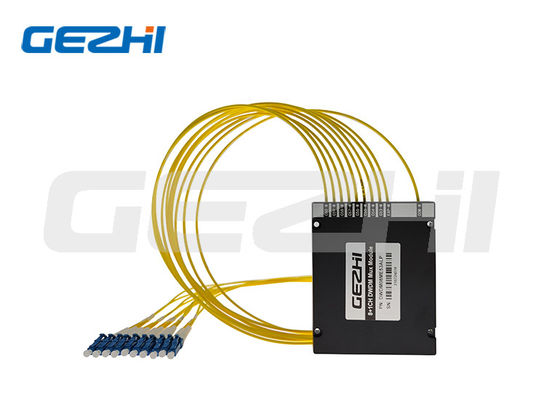

This module is packed a multiplexer or demultiplexer in a small ABS box: 100*80*10mm for single fiber application. As the Low Insertion loss, high stability and reliability, its well application in FTTX, WDM Network, Data Center etc.

Features: Low Insertion Loss LOW PDL High Channel Isolation Excellent environmental reliability

Applications: WDM System CATV Metro/Acess Networks Data Center



Performance Specifications

Parameter	Unit	dwdm fiber Multiplexer
Channel Number	--	8+1CH
Operation Wavelength of dwdm fiber Multiplexer	nm	C53 to C60
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100Ghz)
Insertion Loss @PB	dB	<2.5
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>34
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	LC/UPC or customized
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	ABS box 100x80x10





C53-C60 dwdm fiber Multiplexer DWDM Optics in telecom filter cascading

C53-C60 dwdm fiber Multiplexer DWDM Optics in telecom

Single Fiber DWDM Optics transmission Solution

C53-C60 dwdm fiber Multiplexer DWDM Optics in telecom

Package
