1x4T 1310nm Fiber Optical Switch with Fast Switching Time and Latching or Non-Latching Control

Brand Name: GEZHI or OEM
Model Number: GZ-1x4T-13/15
MOQ: 1pc
Price: US$95-US$159
Delivery Time: 2-7 work days
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength:
1310/1550nm
Packaging Details:
2pcs in a foam with plastic Box
Supply Ability:
50000pcs per month
Highlight:

1x4t fiber optical switches

,

1310nm fiber optical switches

,

1x4t multimode switch

Product Description

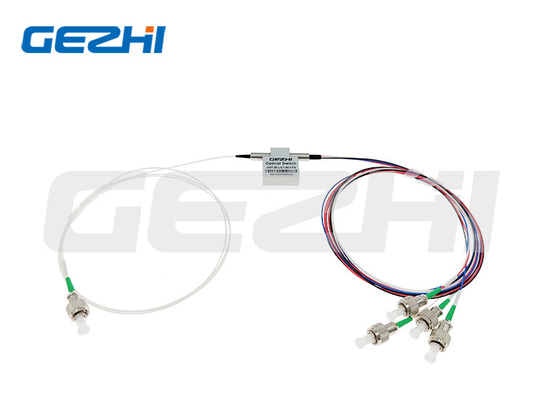

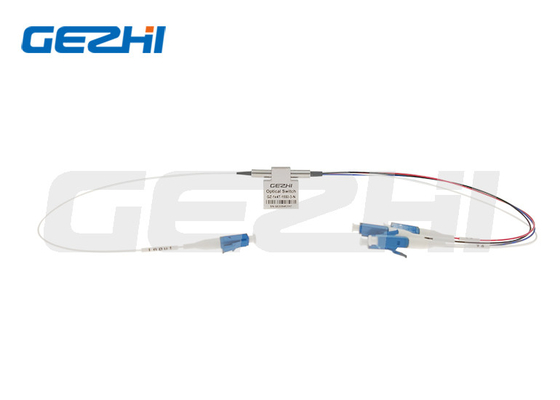

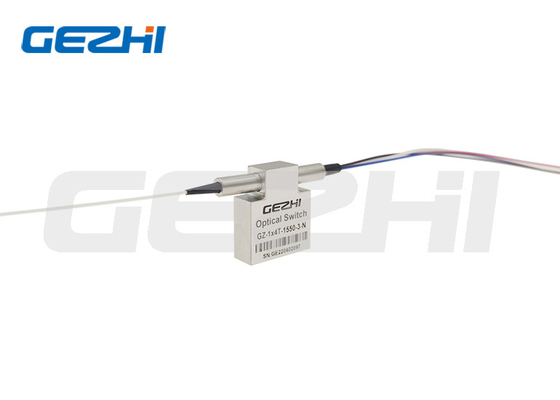

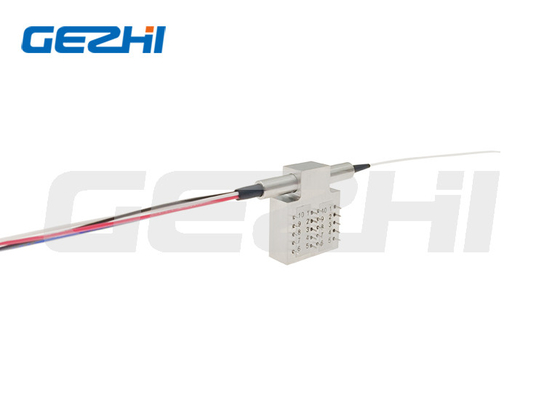

1x4T 1310nm Fiber Optical Switches Passive Mechanical
GEZHI Series 1x4 T Type fiber optical switches connect optical channels by directing or blocking incoming optical signals into output fibers. The latching version preserves the selected optical path after the drive signal is turned off, while non-latching versions default to either open or closed states when power is off. This 1x4 Mechanical Optical Switch features integrated electrical position sensors and an advanced design that significantly reduces moving part position sensitivity, delivering high stability, reliability, and low insertion loss.
Applications & Features
Applications Features
  • Channel Blocking
  • Configurable Add/Drop System
  • Monitoring Instrumentation
  • Fail-Safe Latching
  • Unmatched Low Cost
  • Low Optical Distortions
  • Epoxy-Free Optical Path
Technical Specifications
Parameter Unit Typical Value
Operation Wavelength nm 850nm, 1310/1490/1550nm, 1060
Insertion Loss 1 dB <0.8
Wavelength Dependent Loss dB <0.2
Polarization Dependent Loss dB <0.2
Return Loss dB SM: >55 MM: >40
Cross Talk dB SM: >55 MM: >40
Switching Time ms Typical: 4 Max: 10
Repeatability dB <±0.02
Durability Cycles >10 Million
Switching Type Latching / Non-Latching
Optical Power Handling - 500mW, 1W, 2W, 5W, 10W
Operating Voltage VDC 3V or 5V
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85
Fiber Type / SM/MM Fiber
Package Dimension mm 27L x 23W x 8.2H
Ordering Information
Type Wavelength Control Model Voltage Power Fiber Type Fiber Diameter Fiber Length Connector
14T=1x4 780=780nm
980=980nm
850=850nm
1310=1310nm
1550=1550nm
13/15=1310/1550nm
S=Specify		 L=Latching
N=Non-Latching		 3=3V
5=5V		 05=500mW
01=1W
02=2W
05=5W
10=10W
S=Specify		 SM=SMF-28
M5=MM 50/125
M6=MM 62.5/125
S=Specify		 25=250um
09=900um
S=Specify		 05=0.5m
10=1m
15=1.5m
S=Specify		 00=None
FP=FC/UPC
FA=FC/APC
SP=SC/UPC
SA=SC/APC
STP=ST/UPC
STA=ST/APC
LP=LC/UPC
LA=LC/APC
S=Specify
