2x2 Cross / Bar Mechanial Optical Switch Module
GEZHI Photonics Co.,Ltd 's 2x2 Optical switch is a cross-bar switch. It has two by two (2x2) ports. The switch changes the connection of the optical signal ports between the state of cross and bar simultaneously. This device has wide application in configurable OADM, optical metropolitan area networks, or in testing/monitoring equipment.
The 2x2 cross / bar optical Switches with single mode fiber (9/125 micron) or multimode fibers can be provided. Latching or non-latching types are available. This switch has low insertion loss, high channel isolation, wide wavelength range.
Features
Applications
Specification
|
Parameters
|
GZ-FSW-2×2A | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.7 Max:1.0 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Dimension | mm | (L)55.0×(W)30.0×(H)12.8 customization is available. | |
Optical Route
Order Information
GZ-FSW-2×2A-X-xx-x-x-x-xx-x-x
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None X=Others |

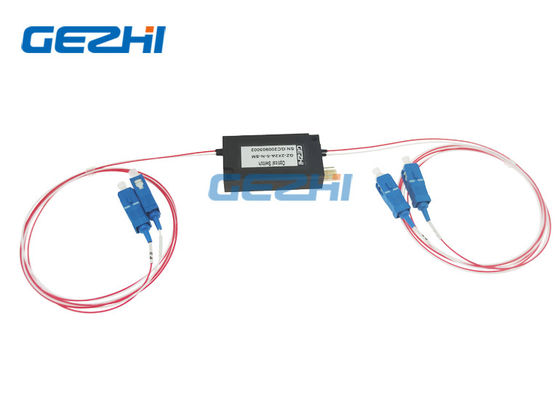

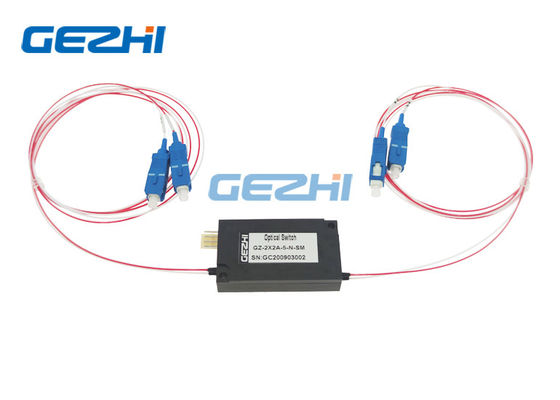

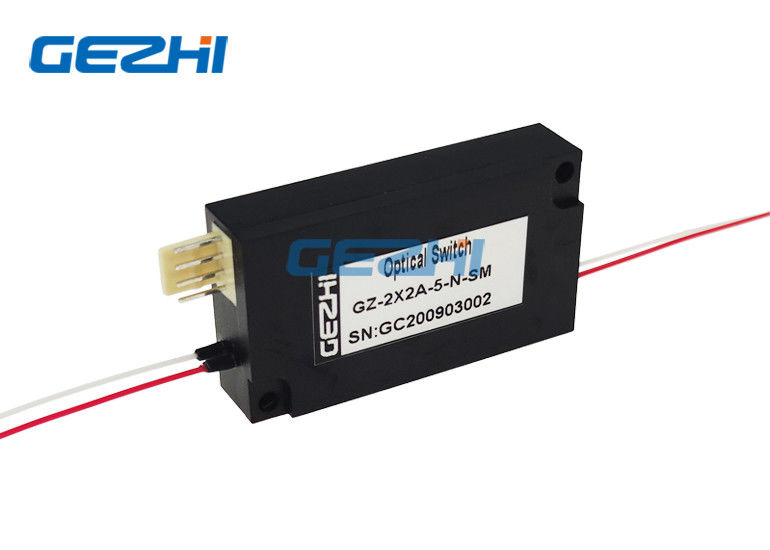

2x2 Cross / Bar Optical Switches Module picture
