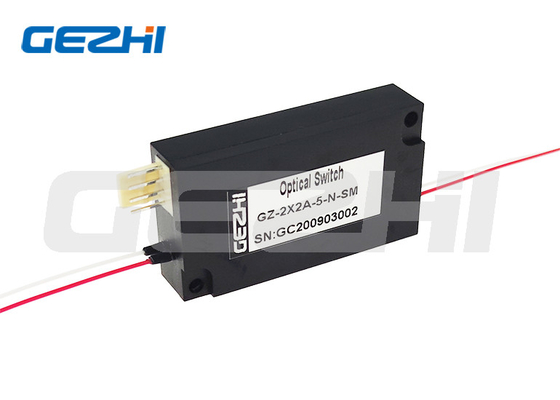

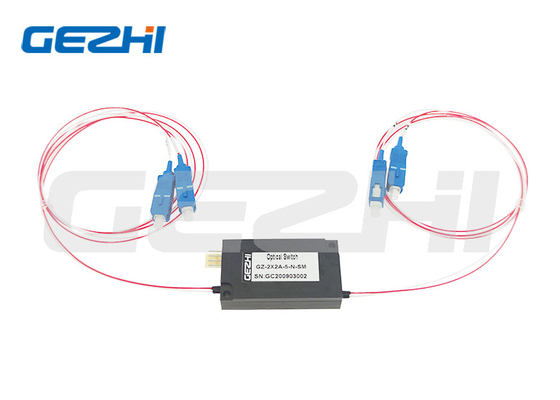

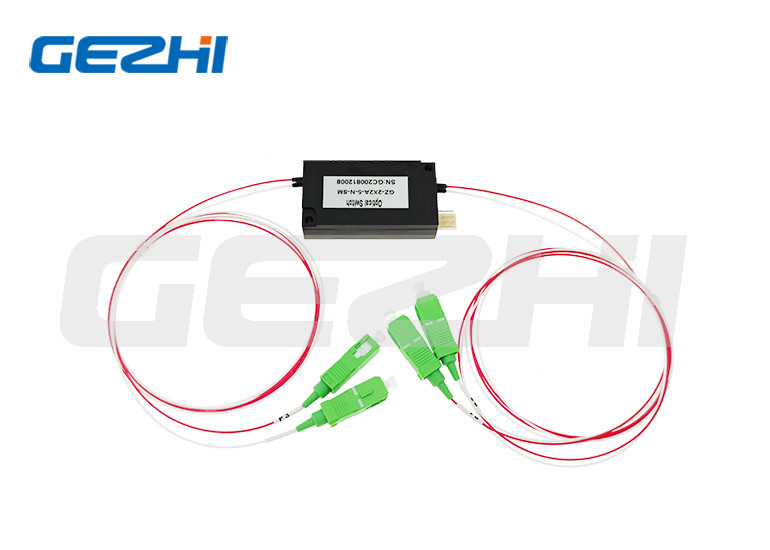

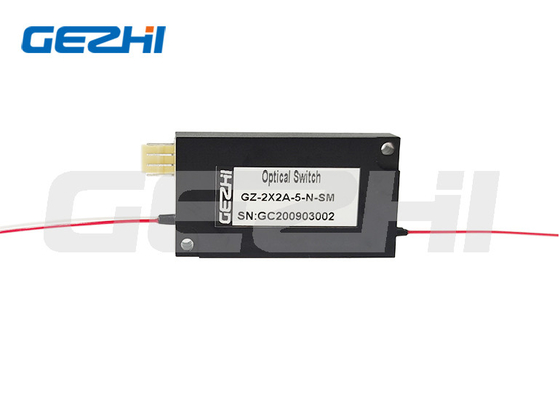

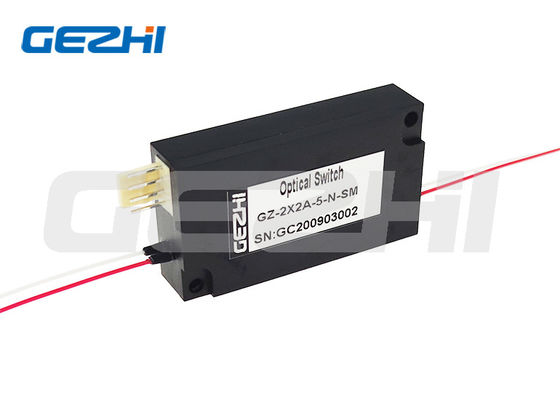

2x2A Mechanical Optical Switch with 1260~1650nm Wavelength and 3V or 5V Power Supply for Low Insertion Loss

Brand Name: GEZHI or OEM
Model Number: 2x2A-SM-13/15-5N
MOQ: 1pc
Price: US$120-US$250
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Application:
Configurable OADM
Voltage:
3V Or 5V
Wavelength:
1510/1530nm
Warranty Time:
3 Years
Port:
2x2A
Fiber Connector:
LC/UPC, LC/APC, SC/UPC Etc.
Packaging Details:
Paper box
Supply Ability:
50000pcs per month
Highlight:

2x2A fiber network switch

,

SC Connector fiber network switch

,

2x2A Fiber Switch

Product Description
2x2A Fiber Optical Switches Passive Mechanical With SC FC LC ST Connector
Product Overview
GEZHI Photonics' 2*2 A type Mechanical Fiber Optic Switch (2X2A Optical Switch) supports all wavelengths from 1260nm to 1650nm or 850nm multimode wavelength. This high-performance optical switch delivers exceptional reliability, low insertion loss, fast switching speed, and bi-directional performance. Ideal for optical networks, protection systems, transmitter and receiver protection, network test systems, and instrumentation applications.
Key Features & Applications
Features
  • Compact design with miniature size
  • Short switching time
  • Bi-directional operation
  • Low optical distortions
  • Low cross talk
  • Low insertion loss
  • Wide operating wavelength range
Applications
  • R&D in Laboratory
  • System monitoring
  • Metropolitan Area Network
  • Network protection and restoration
  • Instrumentation, testing, and measurement
Technical Specifications
Parameters Unit GZ-FSW-2*2A
Wavelength Range nm 1260～1650
Operating Wavelength nm 1310/1550
Insertion Loss dB Typ:0.8 Max:1.0
Return Loss dB ≥50
Crosstalk dB ≥60
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 3.0 or 5.0
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20～+70
Storage Temperature ℃ -40～+85
Weight g 25
Dimension mm (L)55.0*(W)26.0*(H)10.0
Pin Configurations
Type State Optical Route Electric Drive Status Sensor
2*2A A P1-P3,P2-P4 Pin 1: V+
Pin 2: GND		 Pin 3-4: Open
B P1-P4,P2-P3 -- Pin 3-4: Close
Optical Route Diagrams
State A
2x2A Mechanical Optical Switch with 1260~1650nm Wavelength and 3V or 5V Power Supply for Low Insertion Loss 0
State B
2x2A Mechanical Optical Switch with 1260~1650nm Wavelength and 3V or 5V Power Supply for Low Insertion Loss 1
Product Dimensions
2x2A Mechanical Optical Switch with 1260~1650nm Wavelength and 3V or 5V Power Supply for Low Insertion Loss 2
Frequently Asked Questions
Q1: Can I have a sample order? What is your MOQ?
A1: Sample orders are welcome to test and check quality. We don't have a minimum order quantity (MOQ) - 1 piece samples are available. Mixed samples are also acceptable.
Q2: What's the Lead time?
A2: Normal lead time is about 1 week. For large quantities and special products, please check lead time with our sales representative. We keep stock for some products and can ship within 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment terms include T/T, PayPal, Western Union, cash payment, and ALI.
Q4: What is your warranty time?
A4: 3 years warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
