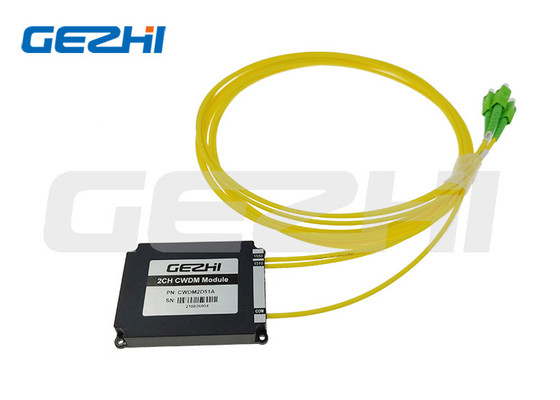

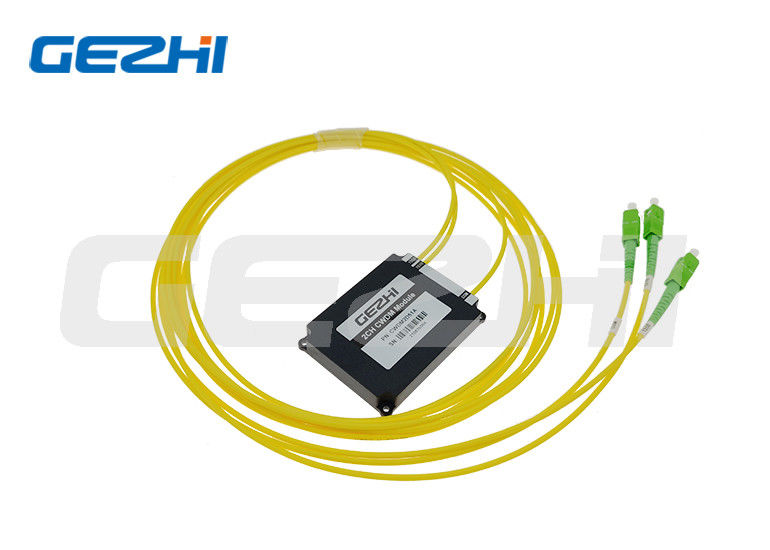

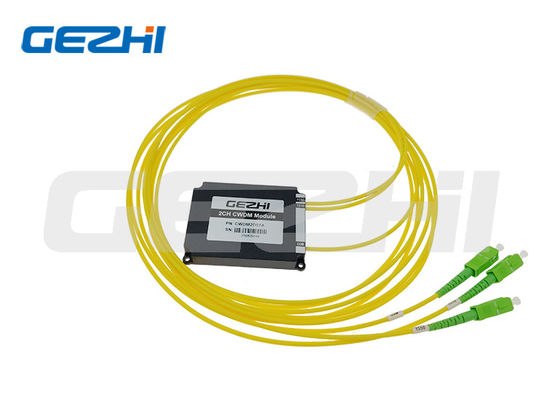

2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector

Brand Name: GEZHI or OEM
Model Number: 2CH CWDM
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Type:
FTTx Solutions
Warranty Time:
3 Years
Channel Number:
2CH
Fiber Type:
SMF-28e
Application:
Data Center
Fiber Connector:
LC/UPC, FC/APC, SC/APC Etc.
Center Wavelength:
1270~1610nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

2CH CWDM Mux Demux

,

1490 CWDM Mux Demux

,

1570 WDM MUX DEMUX

Product Description

Product Overview

CWDM OADM Add/Drop

GEZHI CWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple CWDM channels into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination.



FEATURES AT A GLANCE



Features

Low Insertion Loss

Low Crosstalk

High Stability & Reliability

Epoxy-free on Optical Path

Application

Line Monitoring

WDM Network

Telecommunication

Configurable OADM



2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector 0 2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector 1 2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector 2



PRODUCT SPECIFICATIONS



Parameter
Unit
CWDM Mux Demux
Channel Spacing
nm
20nm
Center Wavelength
nm
1270~1610 or 1271~1611
Channel Passband
nm
±6.5
Channel Number
/
4CH
8CH
16CH
Insertion Loss
dB
<1.5
<2.5
<5.5 or <3.5(with skip)
Isolation @Adjacent Channel
dB
>30
Isolation @Non-adjacent Channel
dB
>40
Isolation @Express Port
dB
>15
Polarization Dependent Loss
dB
<0.2
Polarization Mode Dispersion
dB
<0.1
Directivity
dB
>50
Return Loss
dB
UPC >45 APC>50
Power Handling
mW
<500 (High Power type available)
Fiber Type
/
SMF-28e (Polarization Maintaining Type available)
Operating Temperature
-20~+75 (-40~+85 available)
Storage Temperature
-40~+85
Package Type
mm
ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount



Test Enviroment



2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector 3  2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector 4  2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector 5 2CH 1490 1570 CWDM Mux Demux With Customized Wavelength And Connector 6

NO-dust workshop High Temp. Ageing & High-Low Temperature cycling 100% Testing Before Shipment Optical Spectrum Analysis



FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
