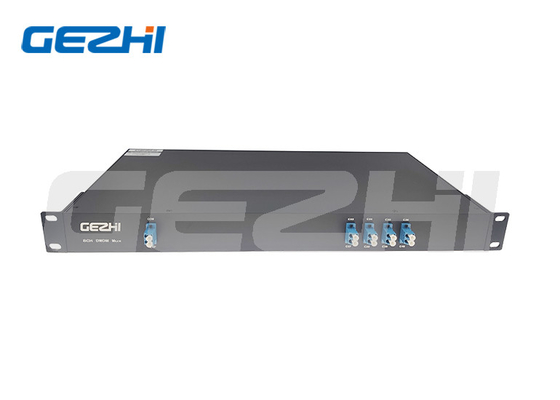

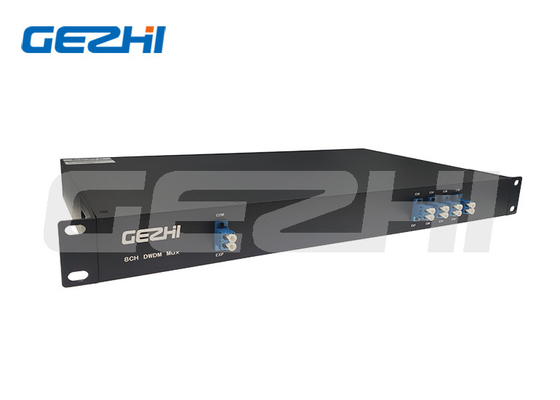

Low Insertion Loss 8 Channel 100Ghz DWDM Mux Demux Module for Data Center Rackmount

Name: Low Insertion Loss 8 Channel 100Ghz DWDM Mux Demux Module for Data Center Rackmount
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 8 Channel 100Ghz DWDM mux equipment
Price: 460.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	8 Channel 100Ghz DWDM mux equipment
MOQ:	1pc
Price:	US$360-US$560
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Use:

WDM System

Warranty Time:

3 Years

Type:

FTTx Solutions

Application:

Data Center

Channel Number:

4, 8, 16, 18 Or Customized

Fiber Type:

SMF-28e

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1U patchpanle DWDM mux equipment

100Ghz DWDM mux equipment

Rackmount type DWDM mux equipment

Product Description

Low Insertion Loss 8 Channel 100GHz DWDM Mux Equipment

1U Rackmount Patch Panel Type Filters Multiplexer

Product Overview

DWDM (Dense Wavelength Division Multiplexing) combines multiple optical wavelengths for transmission over a single fiber. GEZHI Photonics' DWDM Module utilizes advanced thin film coating technology to increase bandwidth on existing fiber-optic backbones, enabling simultaneous transmission of multiple wavelength signals.

We provide a comprehensive range of DWDM Mux Demux solutions with customizable channels, wavelengths, power specifications, fiber types, and connector types. Low insertion loss models are also available.

Key Features & Applications

Features

High channel capacity
Wide pass band
Low Insertion Loss
High stability and reliability
Epoxy-Free Optical Path

Applications

Access / Enterprise Networks
Long Haul Networks
Wavelength Routing
Channel Add/Drop
Dense WDM Systems

Technical Specifications

Parameter	Unit	DWDM
Operation Wavelength	nm	C27~C34
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100GHz)
Insertion Loss @PB	dB	<2.8
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss: >45
Power Handling	mW	<500
Connector	--	LC/UPC
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	2Slots 19" 1U Rackmount

Frequently Asked Questions

Q1: Can I place a sample order? What is your MOQ?

A1: Sample orders are welcome for quality testing. We have no minimum order quantity - single unit samples are available. Mixed samples are also acceptable.

Q2: What's the lead time?

A2: Standard lead time is approximately 1 week. For large quantities and specialized products, please consult our sales team. We maintain stock for select products, enabling shipment within 1-3 days after payment confirmation.

Q3: What are your payment terms?

A3: We accept T/T, PayPal, Western Union, cash payment, and Alibaba transactions.

Q4: What is your warranty period?

A4: All products include a 3-year warranty.

Q5: Can I use my own logo, label, and packaging?

A5: Yes, we provide comprehensive OEM services including custom product labeling, logos, part numbers, serial numbers, and packaging according to your specifications.
