0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable OM3 high-density connections

0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections
0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections 0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections 0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections 0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections

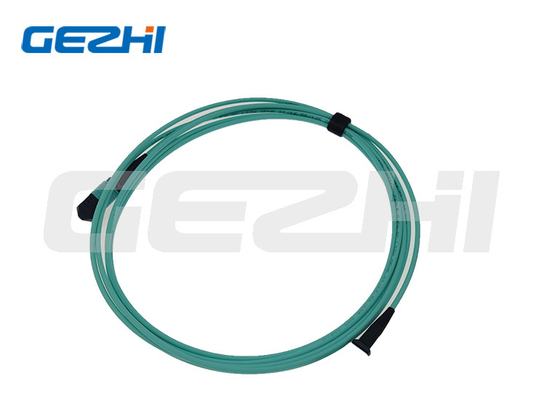

Large Image :  0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable OM3 high-density connections

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: MPO Patch Cable OM3
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Detailed Product Description
Fiber Type: SM/MM/OM3 Cable Length: 0.5/1/2/3m Or Customized
Cable Jacket: PVC,LSZH,Plenum (OFNP) Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
Fiber Count: 12/24/48/96/144 Cores

0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable OM3 high-density connections

Product Overview
MPO cable patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Gezhi provide complete solution for your data center interconnection solution, including MPO Cable ,MPO Harnesses Cables ,MPO Fan out 0.9mm Patch Cords ,IP-Series MPO Assembly ,High Density Patch Cords ,MPO Loopback ,MT Patch Cords ,MPO Cassettes ,MPO Fiber Optic Patch Panel.



FEATURES
Supports 40G and 100G network applications
100% pre-terminated and tested in factory to ensure transfer performance
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Rapid configuration and networking, reduce installation time
Jacket material: LSZH, OFNR, OFNP available

APPLICATION
High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel


Parameters

Performance LevelStandardElite
ConnectorModeEndfaceIL(max) (dB)RL(min) (dB)IL(max) (dB)RL(min) (dB)
MPO/MTPSM12F/APC≤0.70≥60≤0.35≥60
24F/APC≤0.75≥60≤0.35≥60
48F/APC≤0.75≥60
MM12F/PC≤0.50≥20≤0.35≥20
24F/PC≤0.50≥20≤0.35≥20
48F/PC≤0.50≥20
LC/SC/FC/STSMAPC≤0.30≥60≤0.10≥60
UPC≤0.20≥50≤0.10≥50
MMPC≤0.20≥30≤0.10≥30

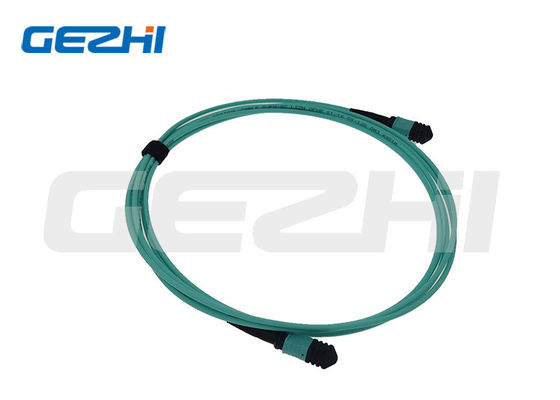

0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections 0

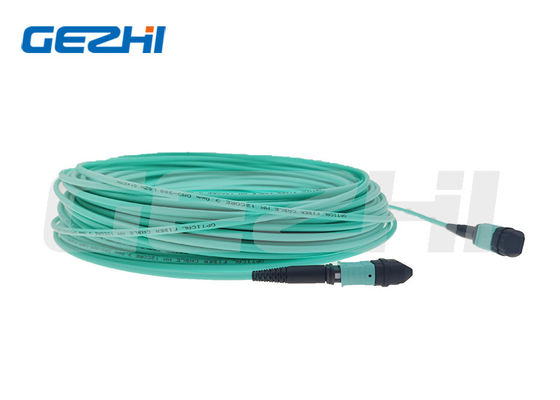

0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections 1
More Products

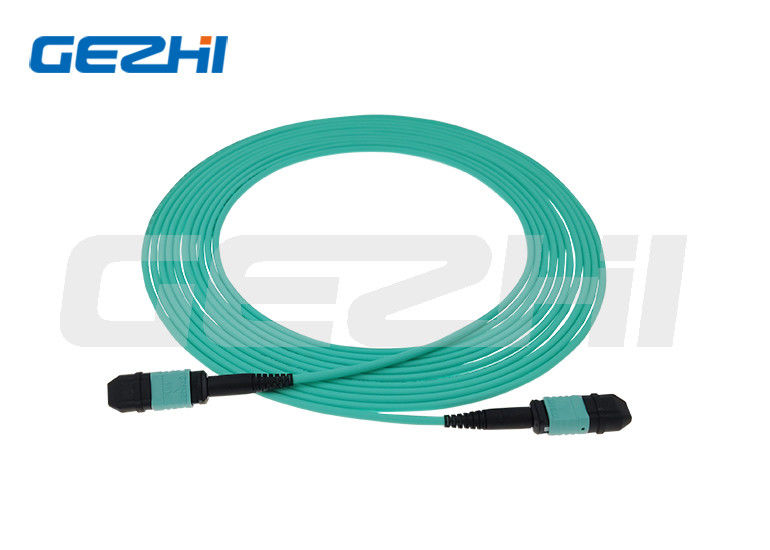

0.5/1/2/3m Or Customized MPO Patch cable, MPO Patch Cable  OM3 high-density connections 2
