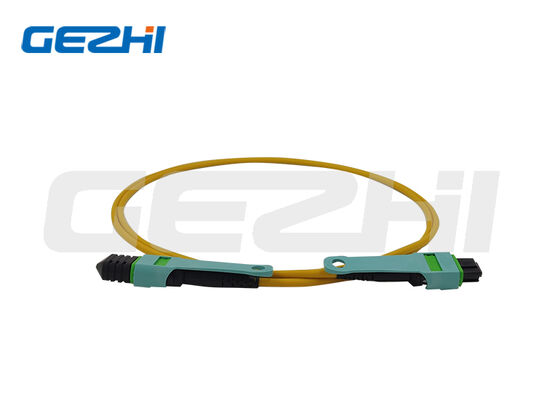

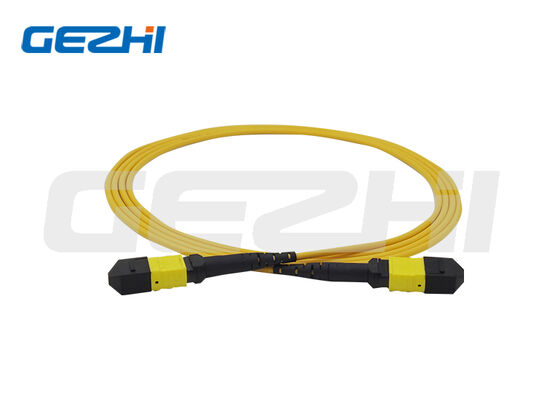

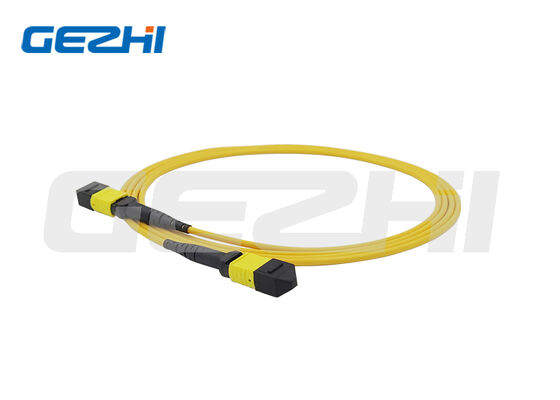

MPO OS2 Patch Cord Single Mode 9/125μm High-Density MPO Fiber Optic Patch Cord

Name: MPO OS2 Patch Cord Single Mode 9/125μm High-Density MPO Fiber Optic Patch Cord
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: PCMPO-OS2-
Price: 43.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	PCMPO-OS2-
MOQ:	1pc
Price:	US$18-US$68
Delivery Time:	2-3weeks

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/RoHS/ISO9001

Fiber Type:

OS2 Single-Mode 9/125μm, ITU-T G.652.D

Fiber Count:

8F /12F /24F (custom Available)

Connector Type:

MPO/MTP, Male / Female

End Face:

APC / UPC

Operating Wavelength:

1310 Nm, 1550 Nm

Insertion Loss:

Typical ≤0.35 DB, Max ≤0.75 DB

Packaging Details:

Paper box

Supply Ability:

1000pcs per month

Highlight:

Single Mode 9/125μm MPO Patch Cord

OS2 MPO Fiber Optic Patch Cord

High-Density MTP Fiber Optic Patch Cord

Product Description

MPO OS2 Patch Cord, Single Mode 9/125μm MPO/MTP Fiber Optic Patch Cord

Product Overview

MPO OS2 patch cord (Multi‑fiber Push‑On) is a multi‑fiber assembly designed for high‑density single‑mode network infrastructure. Using OS2 9/125μm single‑mode fiber (ITU‑T G.652.D), it delivers stable low‑loss performance at 1310nm and 1550nm wavelengths, ideal for medium‑to‑long‑reach parallel optical links in modern data centers and telecommunication room.

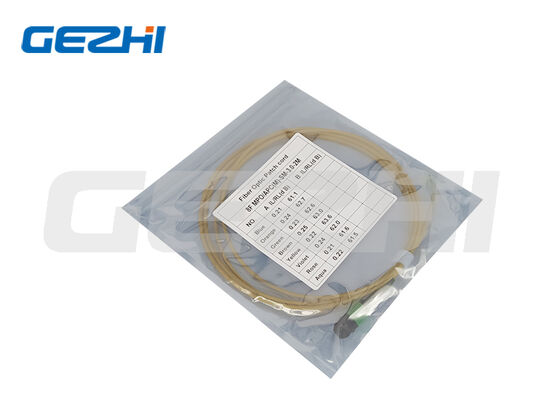

We supply two major constructions: straight‑through MPO‑MPO trunk patch cord and MPO‑LC / SC fan‑out breakout harness. All assemblies are factory‑tested for insertion loss, return loss, end‑face quality and polarity validation before shipment, to guarantee plug‑and‑drop deployment and reduce on‑site installation time. Compatible with MTP® connectors for flexible inter‑operation.

Applications

High‑density data center pre‑terminated cabling system
40G /100G /400G /800G DR4, DR8 parallel optical interconnection
MPO cassette, MPO panel, fiber cross‑connect inter‑rack link
Data Center Interconnect (DCI), telecom equipment room
Enterprise campus backbone, carrier neutral colocation facility
High‑speed optical switching and high‑density fiber distribution

Key Features

✅ OS2 Single‑mode 9/125μm (G.652.D), yellow cable jacket
✅ Fiber count: 8‑core,12‑core,24‑core customizable
✅ Polish option: MPO‑APC (≥60dB return loss) / MPO‑UPC
✅ Polarity: Type A, Type B, Type C to match your network design
✅ Male (pinned) / Female (pin‑less) MPO connector options
✅ Jacket: LSZH low‑smoke zero‑halogen or OFNP plenum rated

Technical Specifications

Item	Specification
Fiber Type	OS2 Single‑Mode 9/125μm, ITU‑T G.652.D
Fiber Count	8F /12F /24F (custom available)
Connector	MPO/MTP, Male / Female
End Face	APC / UPC
Polarity	Type A / Type B / Type C
Operating Wavelength	1310 nm, 1550 nm
Insertion Loss	Typical ≤0.35 dB, Max ≤0.75 dB
Return Loss	APC ≥60 dB; UPC ≥50 dB
Cable Jacket	LSZH / OFNP / PVC
Jacket Color	Yellow
Cable Diameter	3.0 mm (trunk); 2.0 mm (fan‑out legs)
Mating Durability	≥500 times
Operating Temperature	‑20℃ ~ +70℃
Available Form	MPO‑MPO Trunk; MPO‑LC / SC Fan‑Out Breakout

About Us

GEZHI Photonics is a factory of pre-terminated 9/125 OS2 Single Mode MPO trunk cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic trunk cable is suitable for use in 40G QSFP+ transceiver, 100G QSFP28, 400G OSFP, 400G QSFP parallel transceiver optics connection. Each MPO OS2 fiber cable has passed the test of Insertion Loss & Return Loss,End-face Inspection, and Polarity Check in the factory, ensuring complies and exceeds industry standards.

Our Serves

1. Custom Fiber Count

8 Fibers used for 40G/100G QSFP+/QSFP28 direct connection.	12-144 Fibers used for 10G/40G/100G high-denisty structural fiber cabling.

2. Custom Polarity

To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.

MPO connectors also include a key on the top side of the connector and a white dot on the side to indicate the location of Position 1. The orientation of the key is critical when it comes to polarity.

There are also three different types of MPO cables – Type A, Type B and Type C as below pictures:


3. Custom Connectors

The MPO interfaces on active equipment are male (with pins), and to avoid damage to the transceiver, MPO patch cords should be female (without pins).

Male (with pins)

The male connector is mated to the female side for adapters, cassettes or panels connection.

Female (without pins)

The female connector can be directly connected to transceivers or other male connectors.


Odering Information

Type	Mode	Fiber Count	Polarity	Grad	Connector A	Connector B	Polishing	Length
PCMPO	OS2	08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers	A=Type A B=Type B C=Type C	S=Standard E=Elite	M=Male F=Female	M=Male F=Female	P=UPC A=APC	01=1M 02=2M 05=5M 10=10M S=Specify

Frequently Asked Questions

Q: What is difference between MPO and MTP?

A: MTP® is a registered enhanced version of MPO connector. Physically they are interoperable and can plug into each other directly.

Q: Should I choose APC or UPC for OS2 MPO patch cord?

A: For single‑mode high‑speed links, APC is recommended for higher return‑loss performance to avoid signal reflection issues.

Q: What polarity do I need for my MPO OS2 cable?

A: Polarity Type A/B/C must match your transceivers and MPO cassettes. Please confirm polarity requirement before ordering. Never connect male‑to‑male MPO connectors.

Q: Can I get custom length and custom fiber count?

A: Yes, we support fully customized length, fiber count, breakout type and jacket rating for bulk order and sample request.
