Filter Wdm CATV Fwdm Optical Module1310nm 1490nm 1550nm

Filter Wdm CATV Fwdm Optical Module1310nm 1490nm 1550nm
Filter Wdm CATV Fwdm Optical Module1310nm 1490nm 1550nm

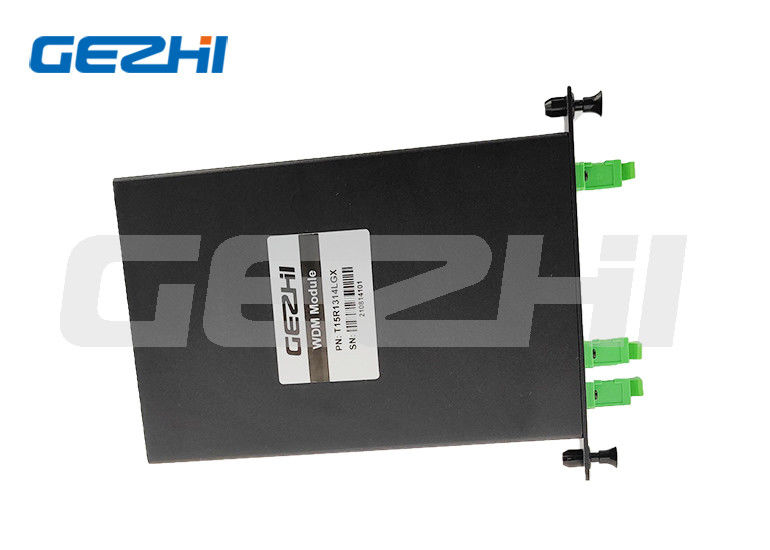

Large Image :  Filter Wdm CATV Fwdm Optical Module1310nm 1490nm 1550nm

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: RoHS ,ISO9001
Model Number: CWDM8A47LLP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Contact Now
Detailed Product Description
Product Name: Filter Wdm CATV Fwdm Optical Module1310nm 1490nm 1550nm Wavelength: 980/1310/1480/1490/1510/1550nm/1625nm
Port: 1x2 Line Type: Dual Fiber
Connector: LC/UPC BOX Package: LGX Chassis

Filter Wdm CATV Fwdm Optical Module1310nm 1490nm 1550nm

Product Introduce
The WDM passive components, based on thin film filter technology, combine all network services/signals over a single fiber. Low insertion loss and high isolation between channels ensures reliable network performance.
GEZHI Photonics supply various wavelength Filter WDM with Stainless steel tube, ABS box, LGX cassette, 1U Rackmount ect.


Customized wavelength Filter WDM is available.
* 1310/1490/1550nm FWDM - for PON, FTTX and test instrument

*1310/1550nm FWDM - for WDM or DWDM optical communications
* 1310/1550/1625nm FWDM - for testing active fibers in service
* 1310/1490/1550/1625nm FWDM - for combining or separating 1625nm channel with three triplex wavelength 1310nm, 1490nm and 1550nm
so that 1625nm channel can be added into the existing triplex FTTH system
* 1480/1550nm FWDM - for high-power DWDM optical amplifier and EDFA
* 1510/1550nm FWDM - for DWDM multi-channel optical networks
* 980/1550nm FWDM - for high performance DWDM optical amplifier and EDFA amplifier
* GPON, XGPON, RF Vedio for Next-Generation System

Filter Wdm CATV Fwdm Optical Module1310nm 1490nm 1550nm 0

Specification
Parameters Unit I-FWDM Device
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20		 nm 1 T1550 R1310/1490
2 T1490 R1310/1550
3 T1310 R1490/1550
4 T1550/1610 R1310/1490
5 T1550/1625 R1310/1490
6 T1625 R1310/1490/1550
7 T1650 R1310/1490/1550
Insertion Loss dB Transmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel Isolation dB ≥ 30
Reflection Channel Isolation dB ≥ 17
PDL dB ≤ 0.1
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature ℃ -10 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm Φ5.5×34 Φ4.2×25 90×20×10







Ordering Information
A B C D E
Wavelength Tube Type Fiber Length
(Include connector)		 Connector Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

5534=Φ5.5×34mm

4225=Φ4.2×25mm

9021=90×20×10mm

X=Others
FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
